RKE/security System Connector End View
RKE/security System Connector End View

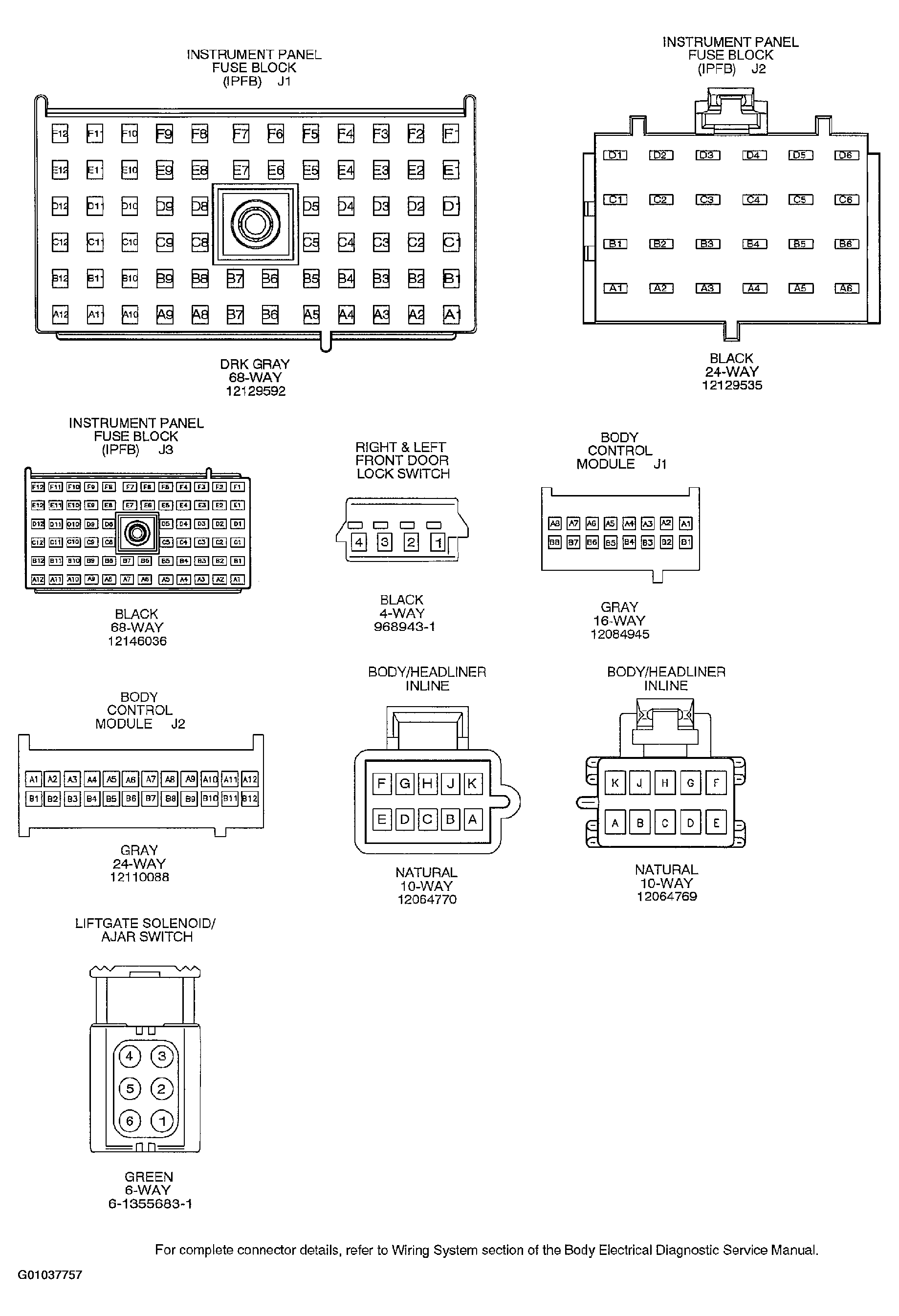

Fig 1: RKE/security System
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
