HC/Co Diagnostic Chart
HC/Co Diagnostic Chart

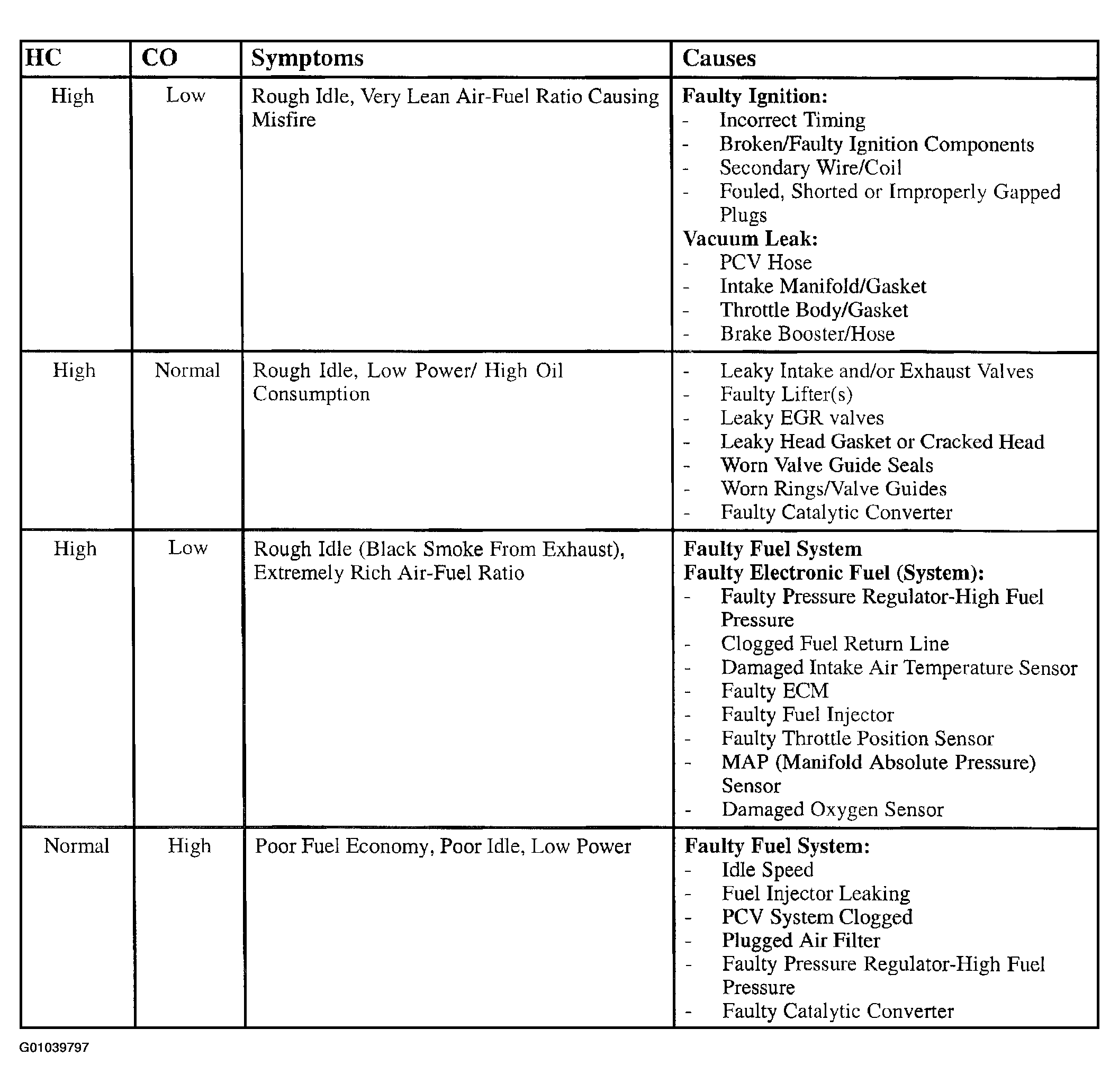

Fig 1: HC/CO Diagnostic Chart
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
