C0276: TCM/Traction Control Not Allowed: Notes

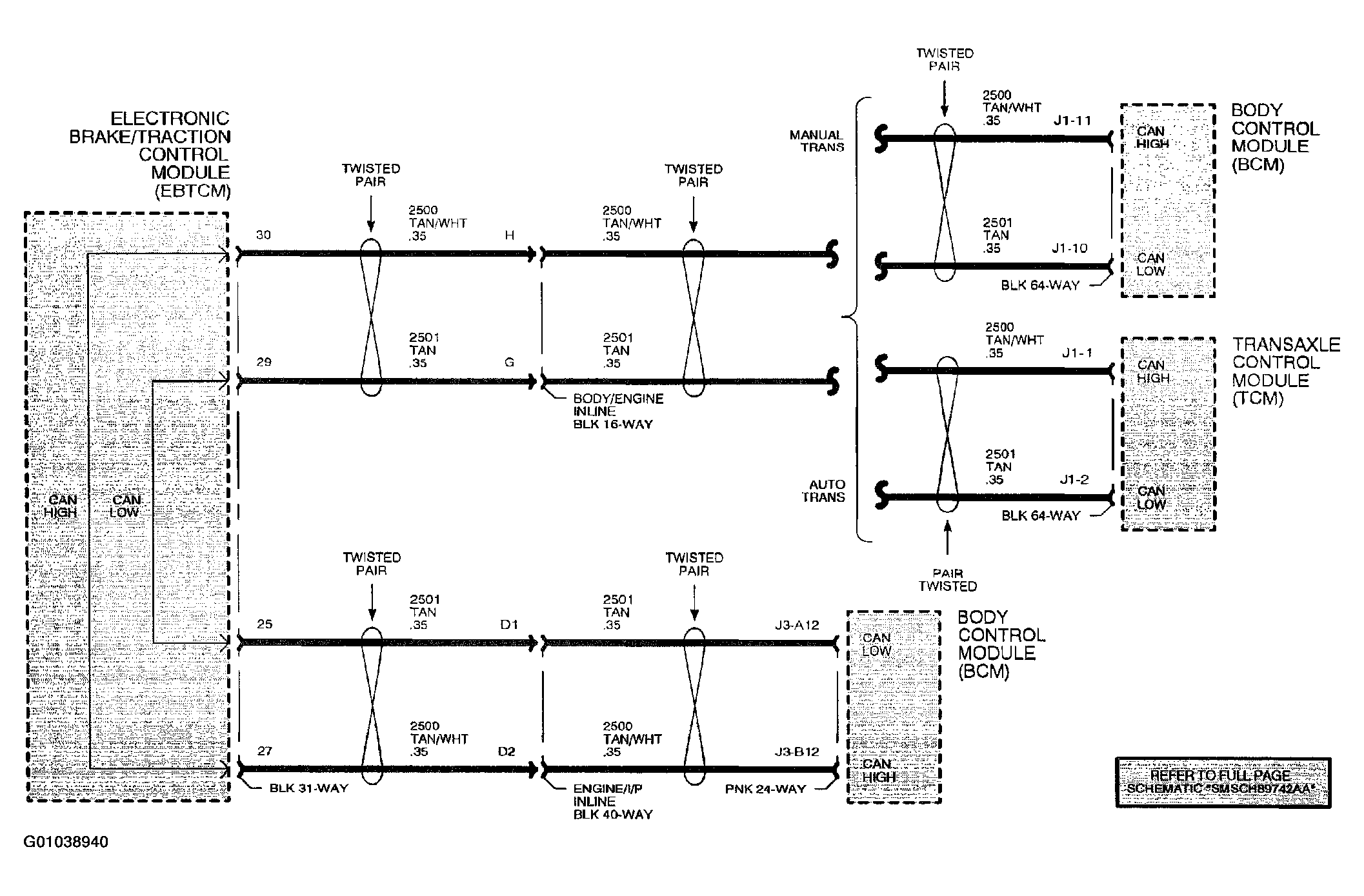

NOTE: Refer to schematic to identify wiring. See Figure .

The Transmission Control Module (TCM) supplies the Electronic Brake and Traction Control Module (EBTCM) with CVT gear ratio and turbine speed using a serial data message.
