Rear Wheel Speed Sensor: Installation

  1. Route electrical connector through hole in backing plate and seat wheel speed sensor rubber grommet into backing plate.
  2. Install wheel speed sensor into bearing. Tighten rear wheel speed sensor to 8 N.m (71 in-lbs). See Figure .
  3. Assemble rear brake assembly. See OVERHAUL .

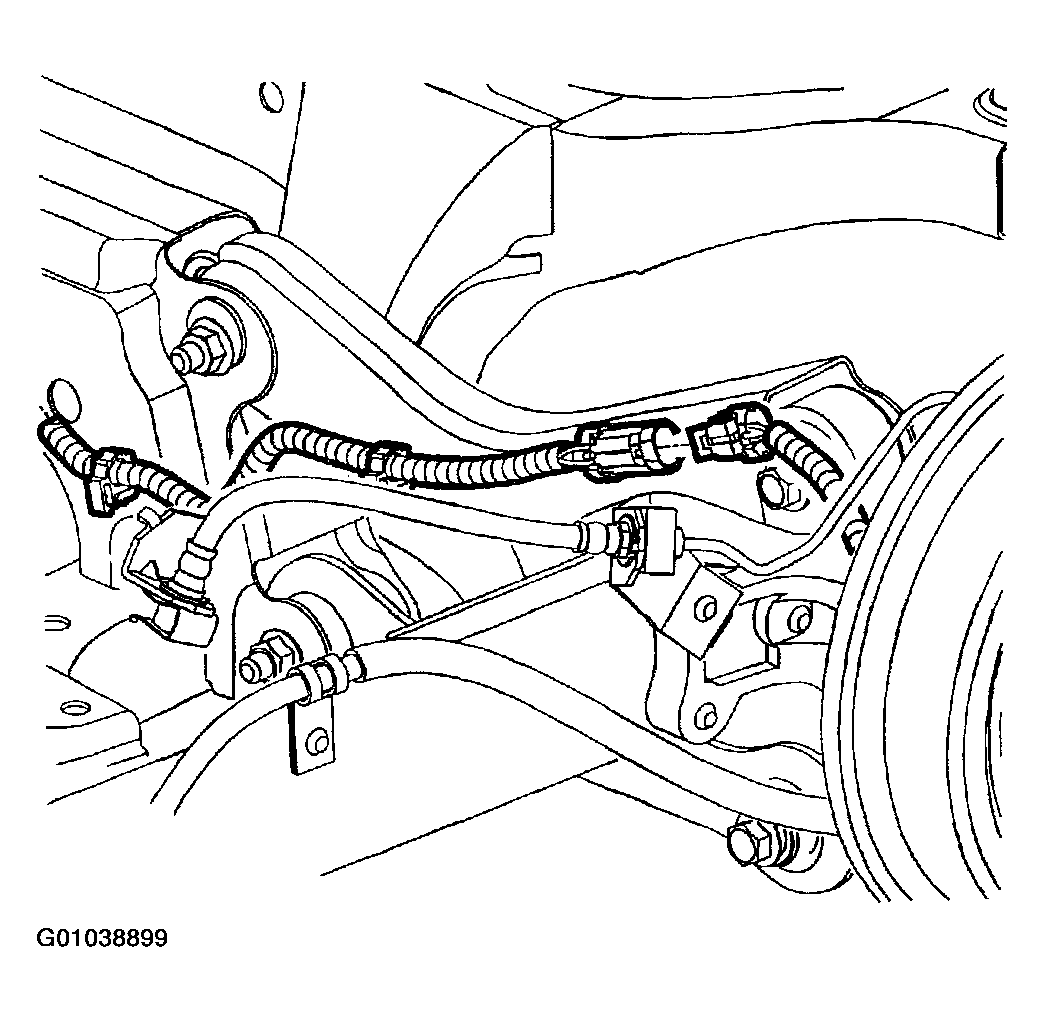

  4. Connect rear wheel speed sensor electrical connector. See Figure .
  5. Lower vehicle from hoist.
