Body Control System Schematics

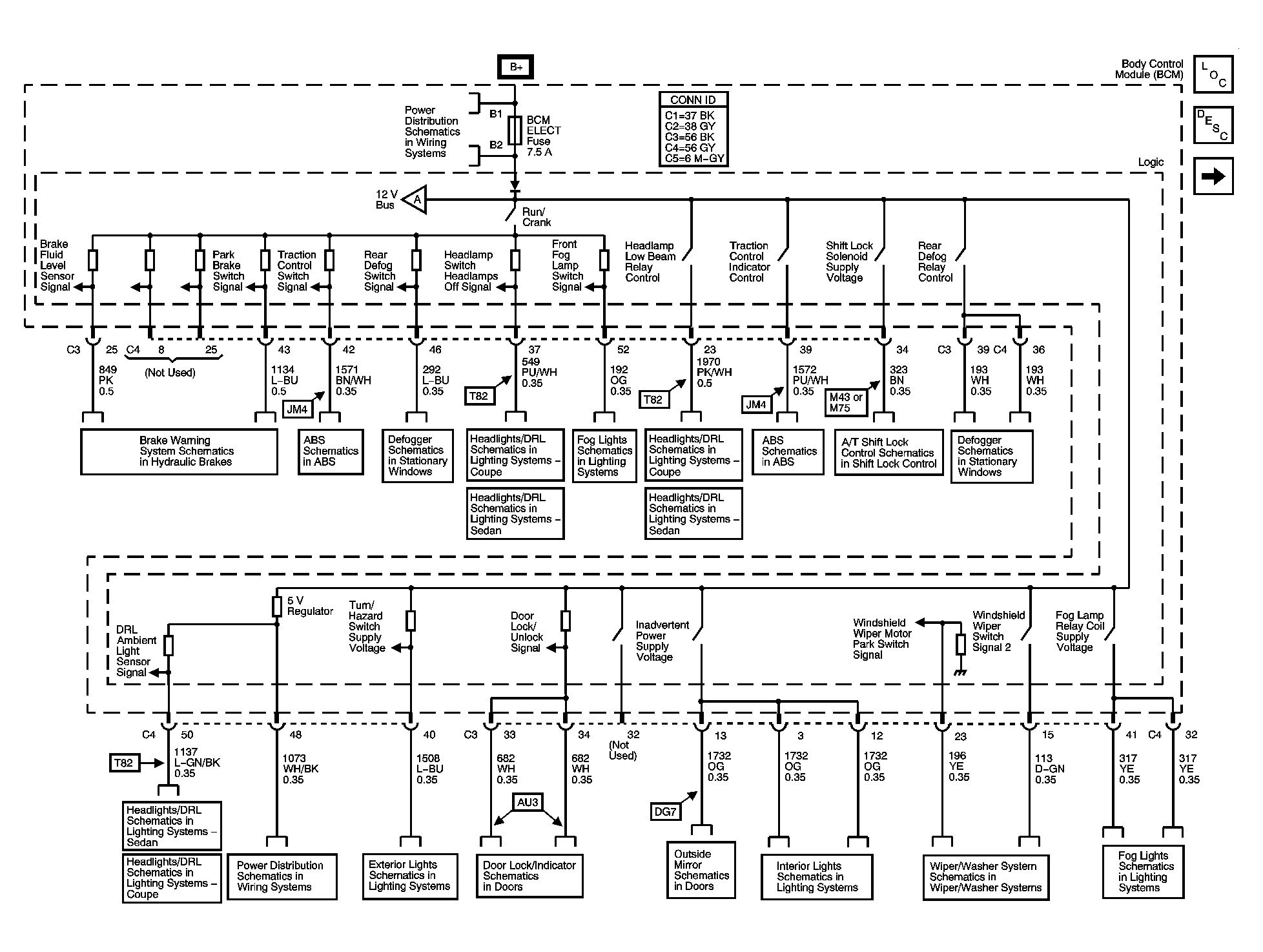

Fig 1: BCM ELECT Fuse 1 of 2 and Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.

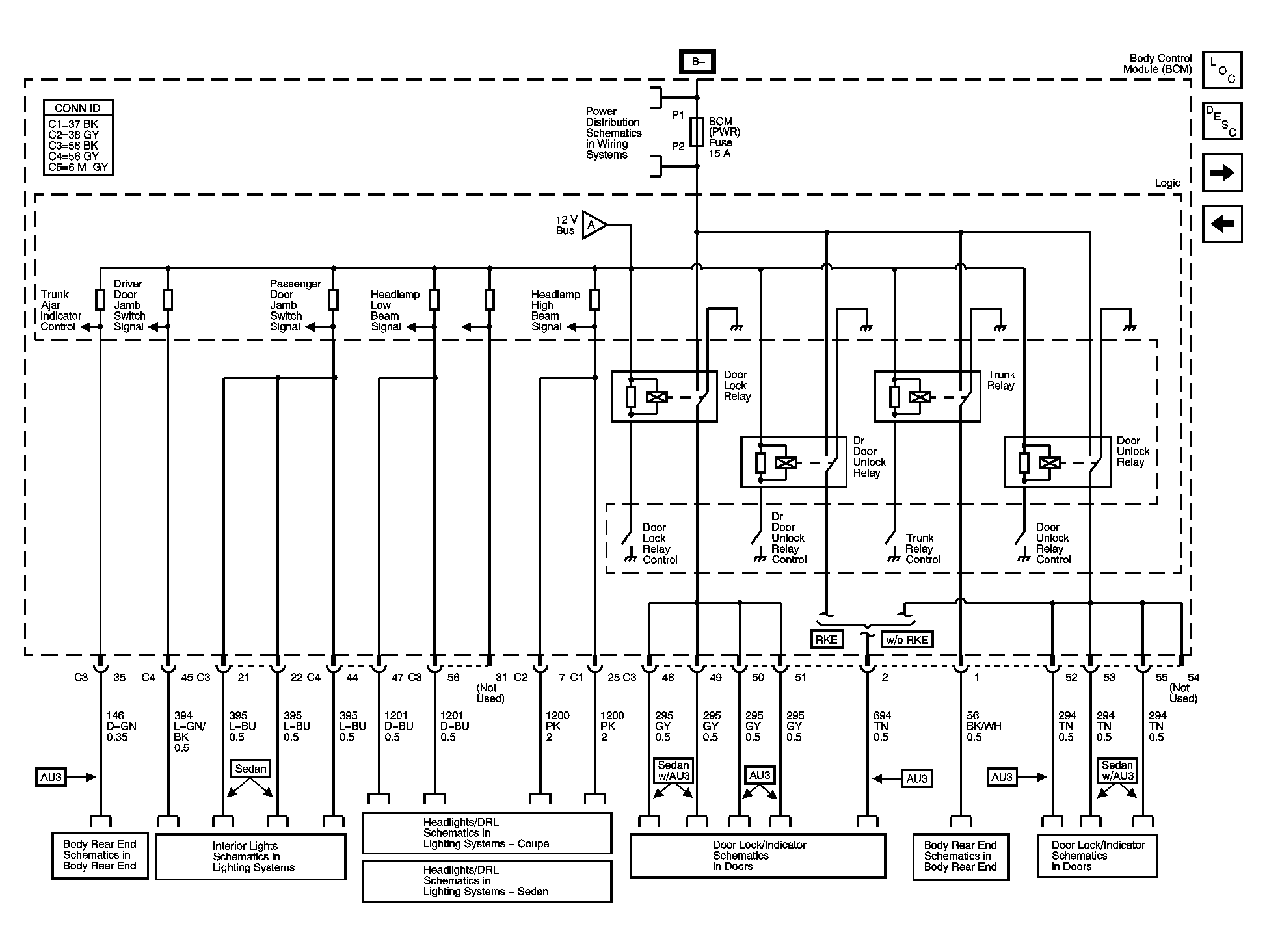

Fig 2: BCM ELECT Fuse 2 of 2, BCM (PWR) Fuse, and Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.

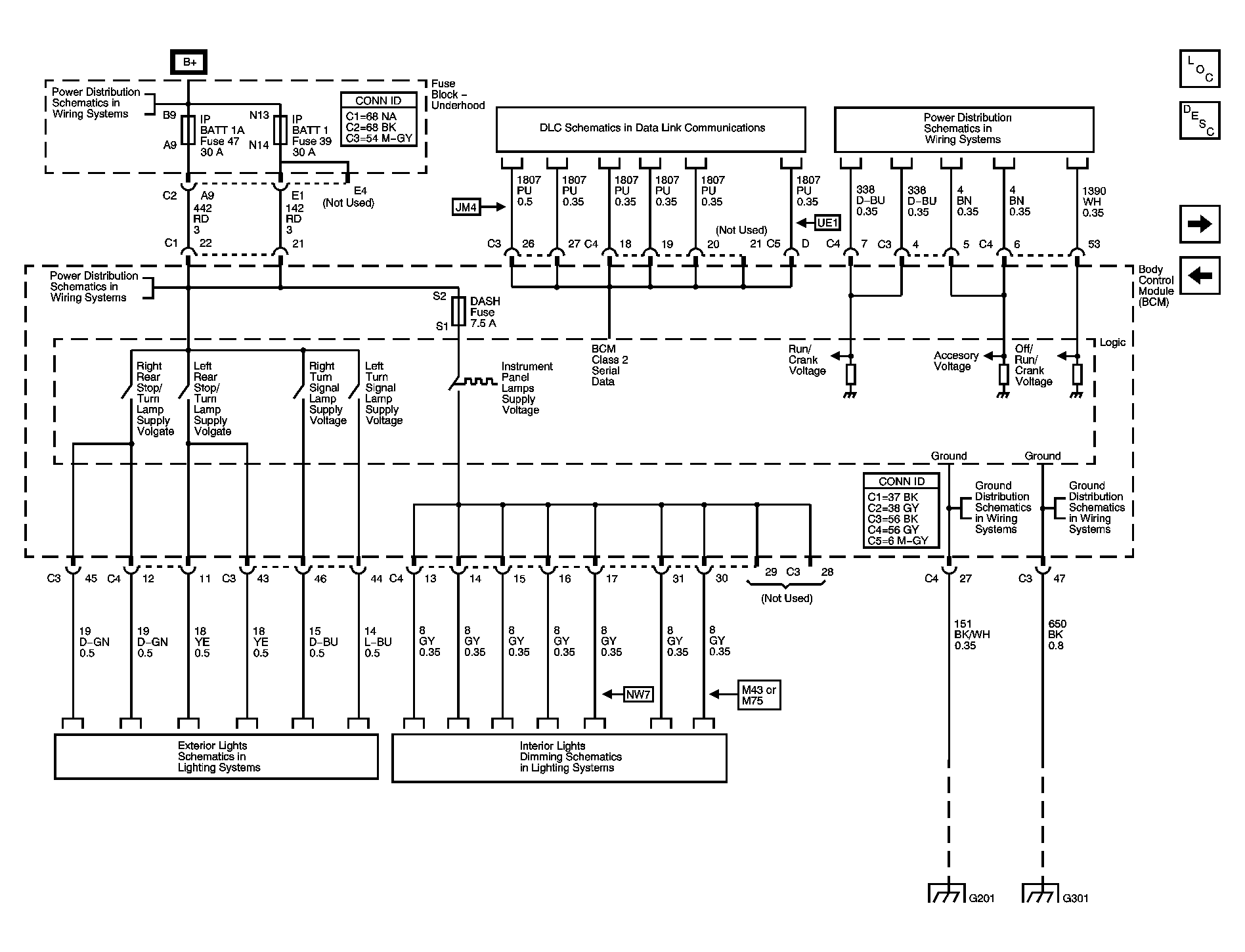

Fig 3: IP BATT 1A Fuse, IP BATT 1 Fuse, Grounds, and Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.

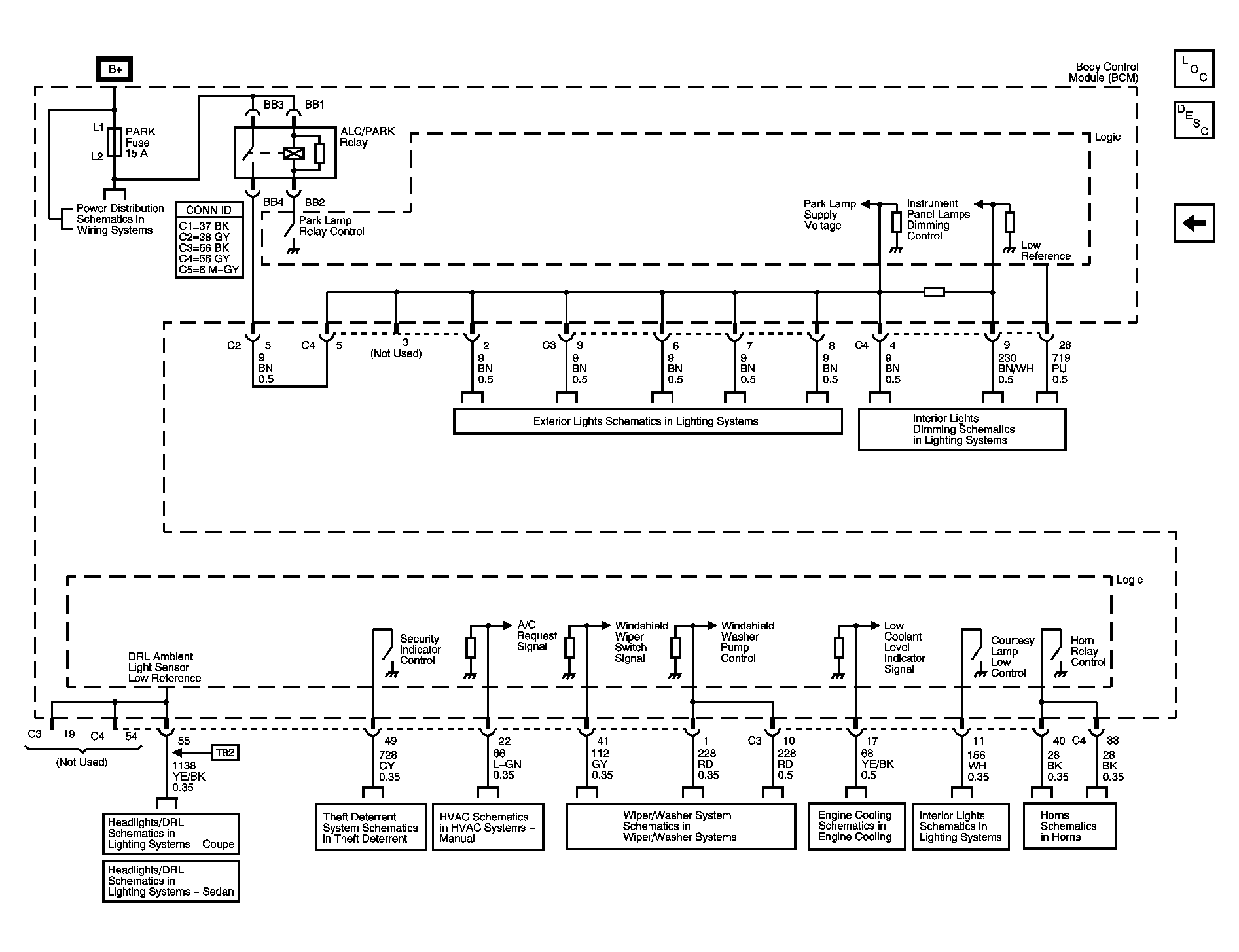

Fig 4: PARK Fuse and Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
