Power Window Schematics

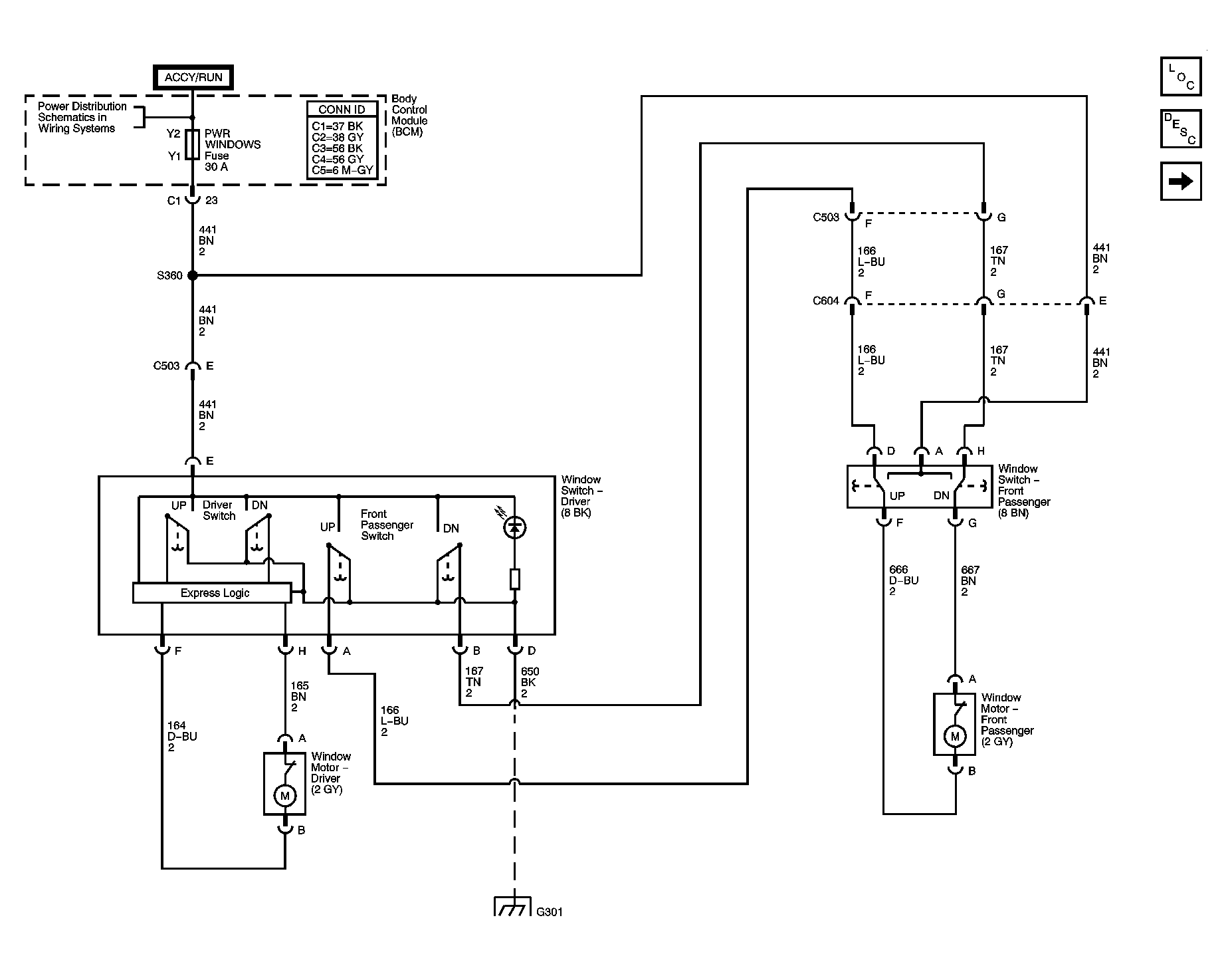

Fig 1: Coupe Schematics
GM878723Courtesy of GENERAL MOTORS CORP.

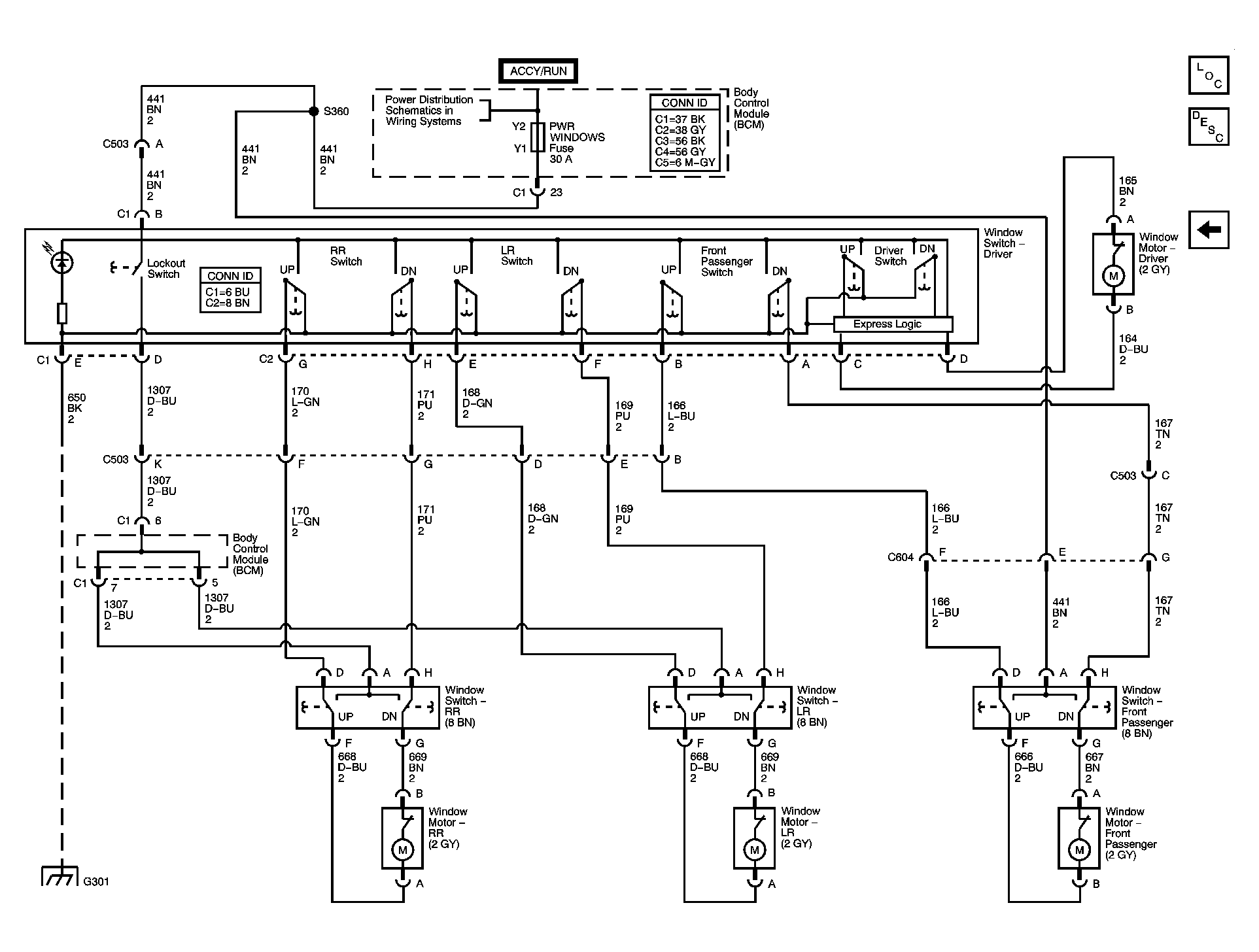

Fig 2: Sedan Schematics
GM878726Courtesy of GENERAL MOTORS CORP.
