Engine Controls - PID Values, Pcm Connector Views And Terminal Identification
›
Connector Identification
Connector Identification

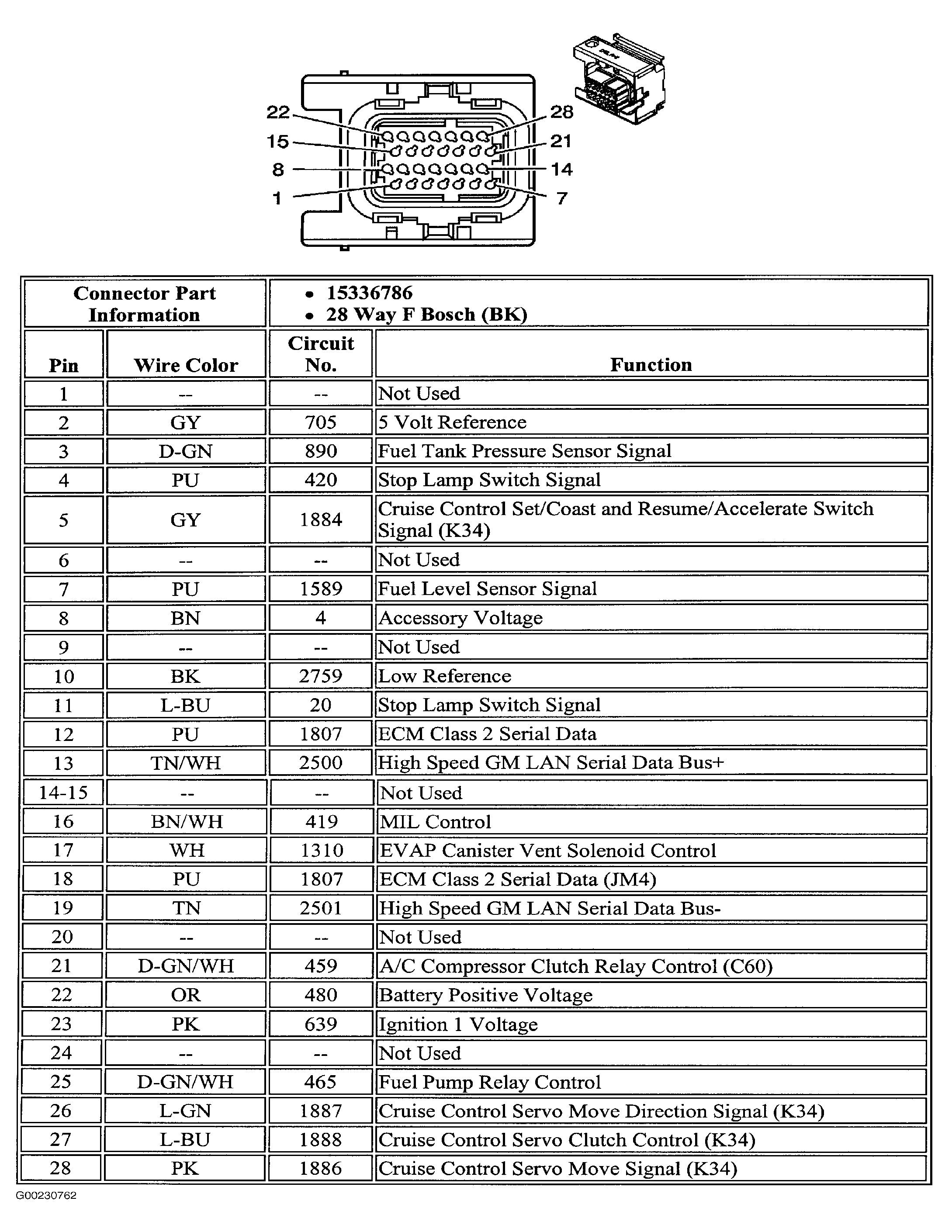

Fig 1: Identifying ECM Connector C1
Courtesy of GENERAL MOTORS CORP.

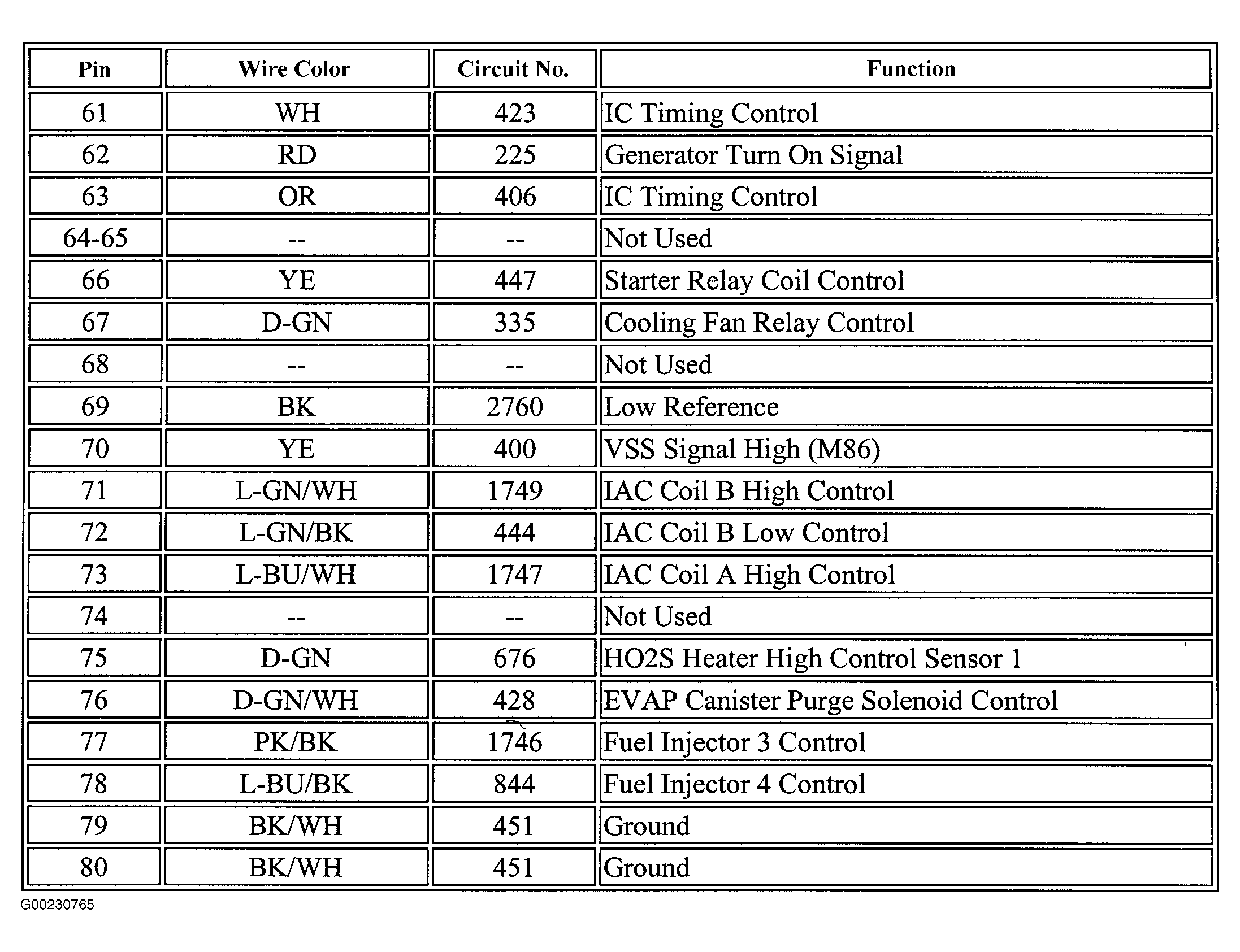

Fig 2: Identifying ECM Connector C2 (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

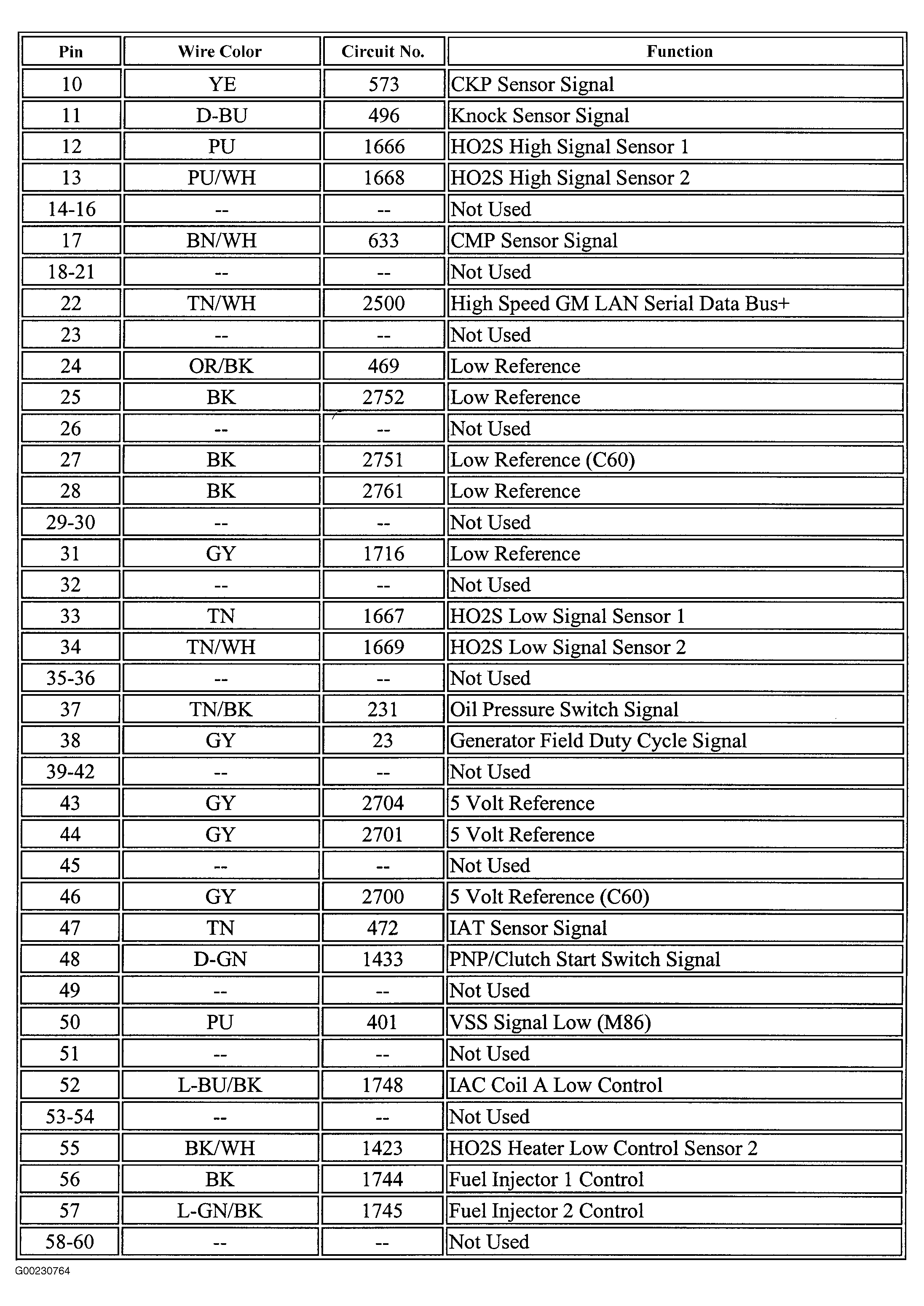

Fig 3: Identifying ECM Connector C2 (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

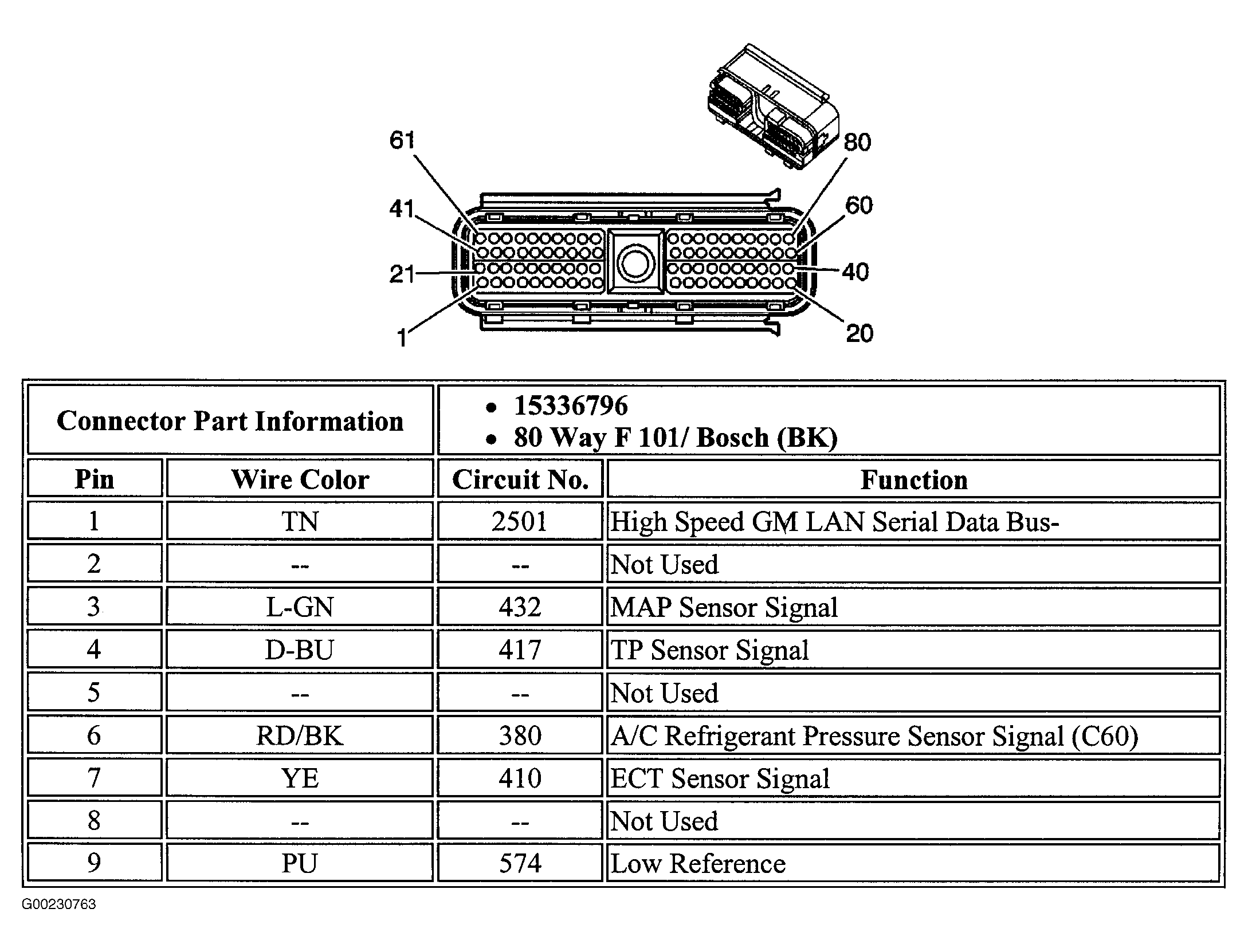

Fig 4: Identifying ECM Connector C2 (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
