PID Value Charts

Ensure following conditions are met before comparing scan tool data to typical data value found in appropriate PID value chart:

Engine is idling unless checking a value at a specified RPM.
Throttle is closed unless checking a value at a specified RPM.
Vehicle is in Park or Neutral.
Vehicle is operating in closed loop.
Vehicle accessories are turned off.

Compare actual PID values on scan tool to PID values found in appropriate PID value chart.

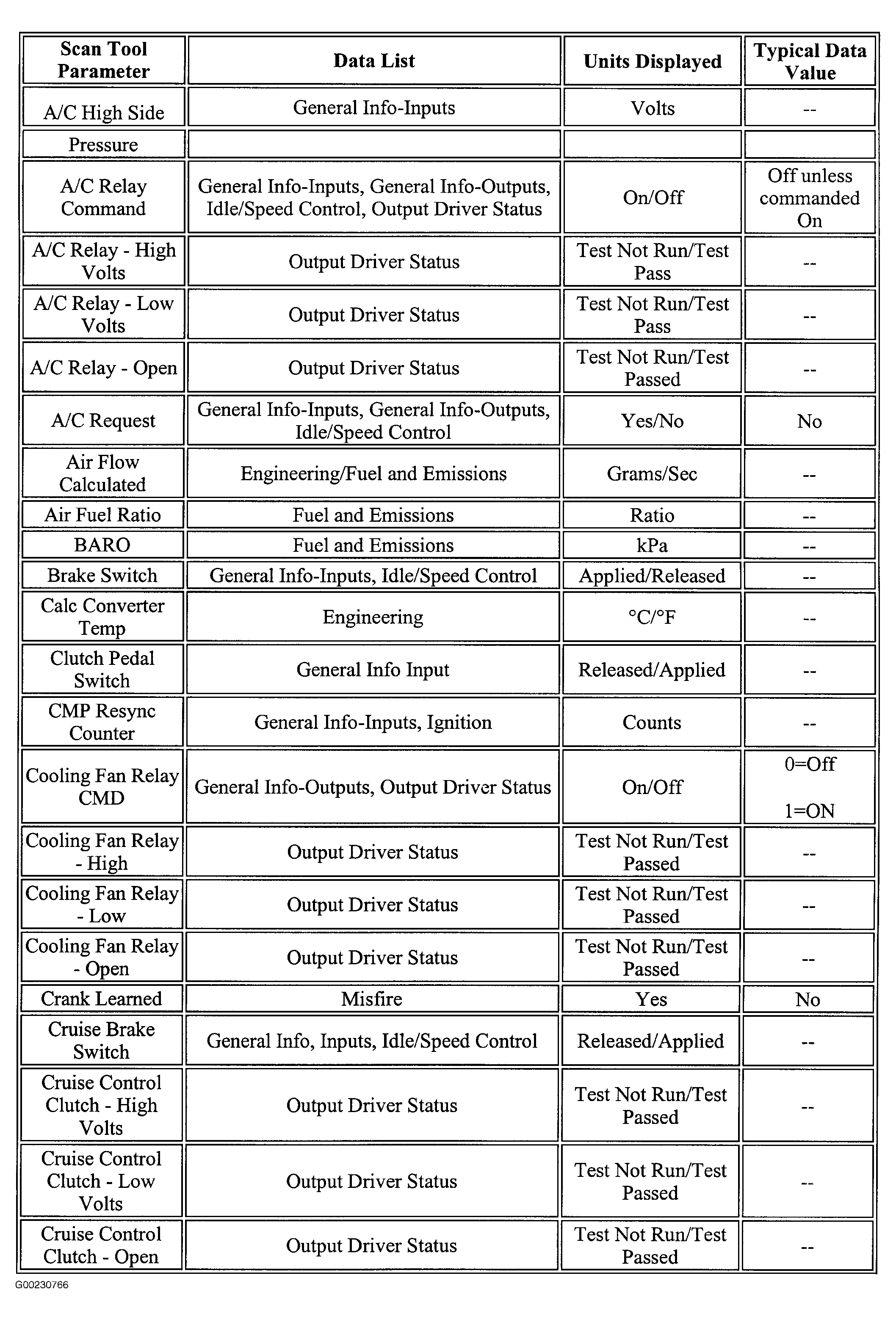

Fig 1: PID Values (1 Of 8)

G00230766

Courtesy of GENERAL MOTORS CORP.

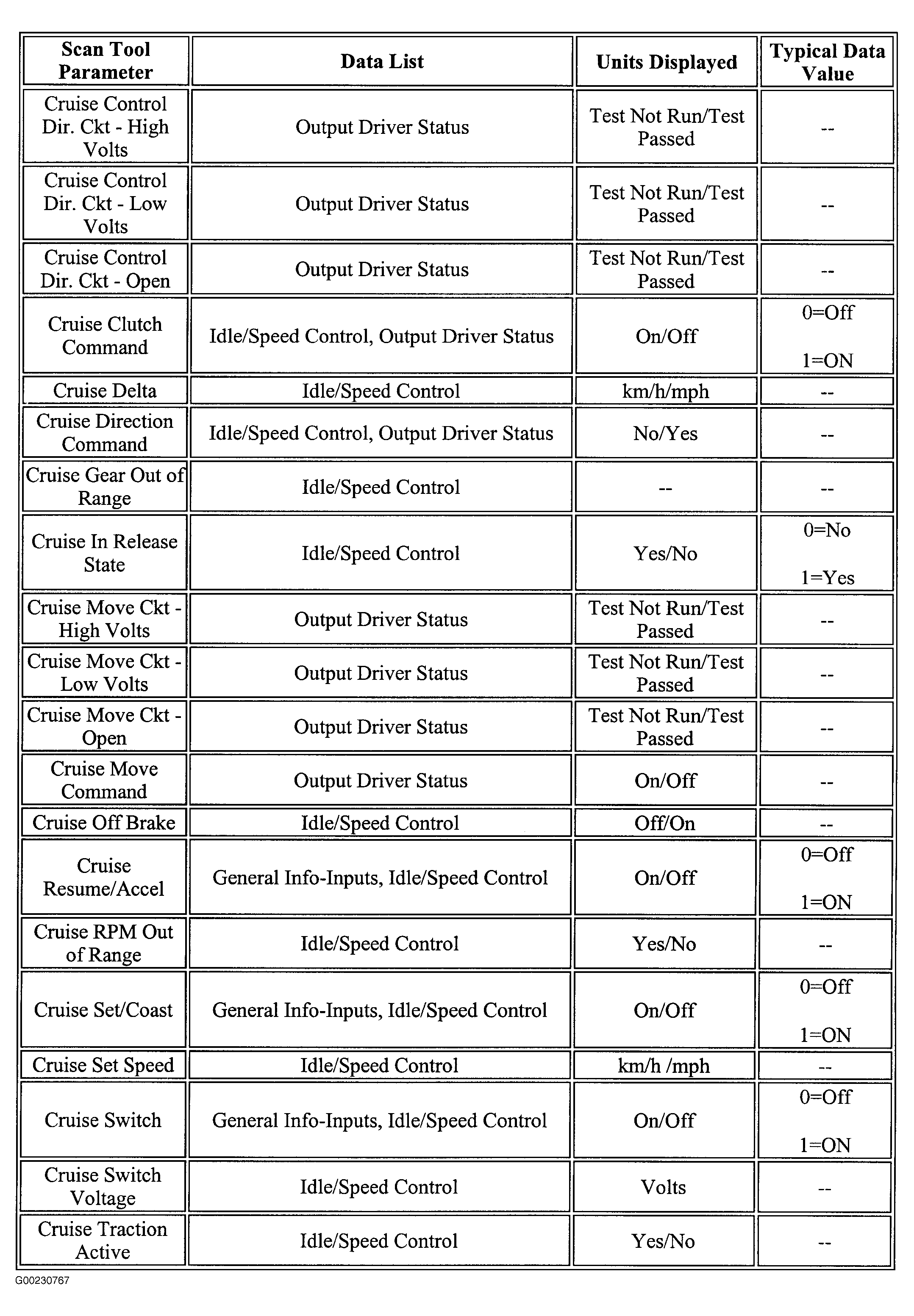

Fig 2: PID Values (2 Of 8)

G00230767

Courtesy of GENERAL MOTORS CORP.

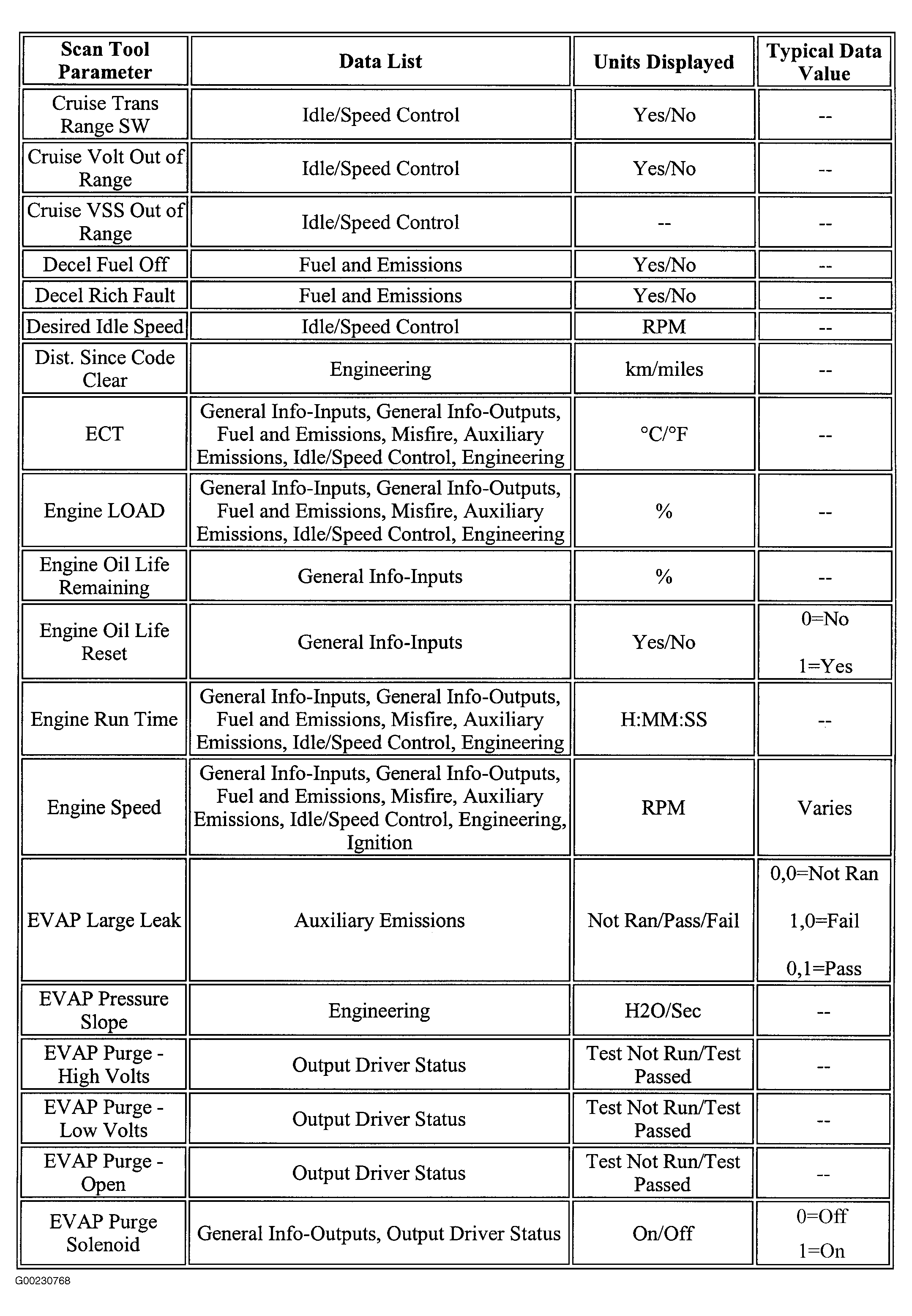

Fig 3: PID Values (3 Of 8)

G00230768

Courtesy of GENERAL MOTORS CORP.

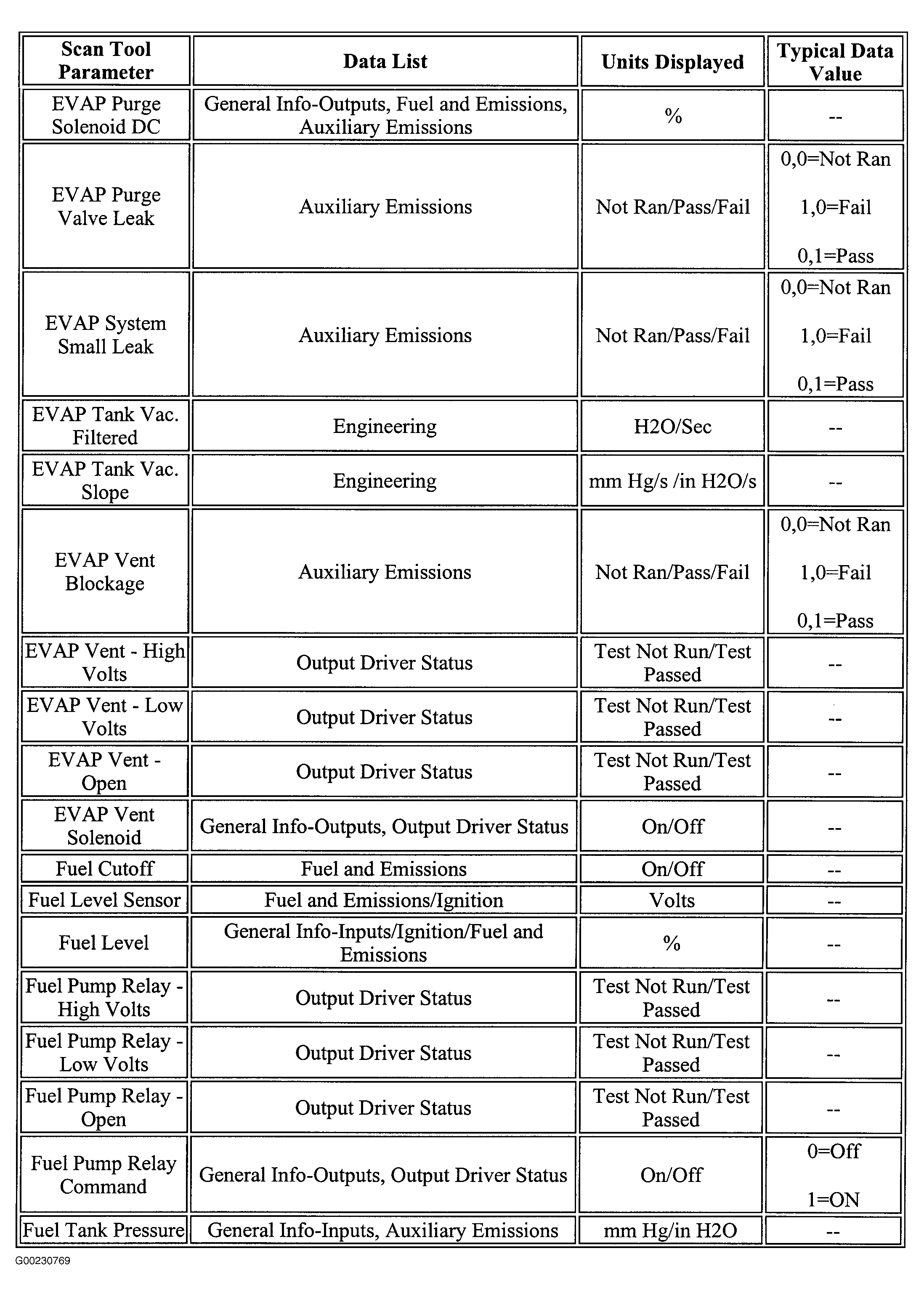

Fig 4: PID Values (4 Of 8)

G00230769

Courtesy of GENERAL MOTORS CORP.

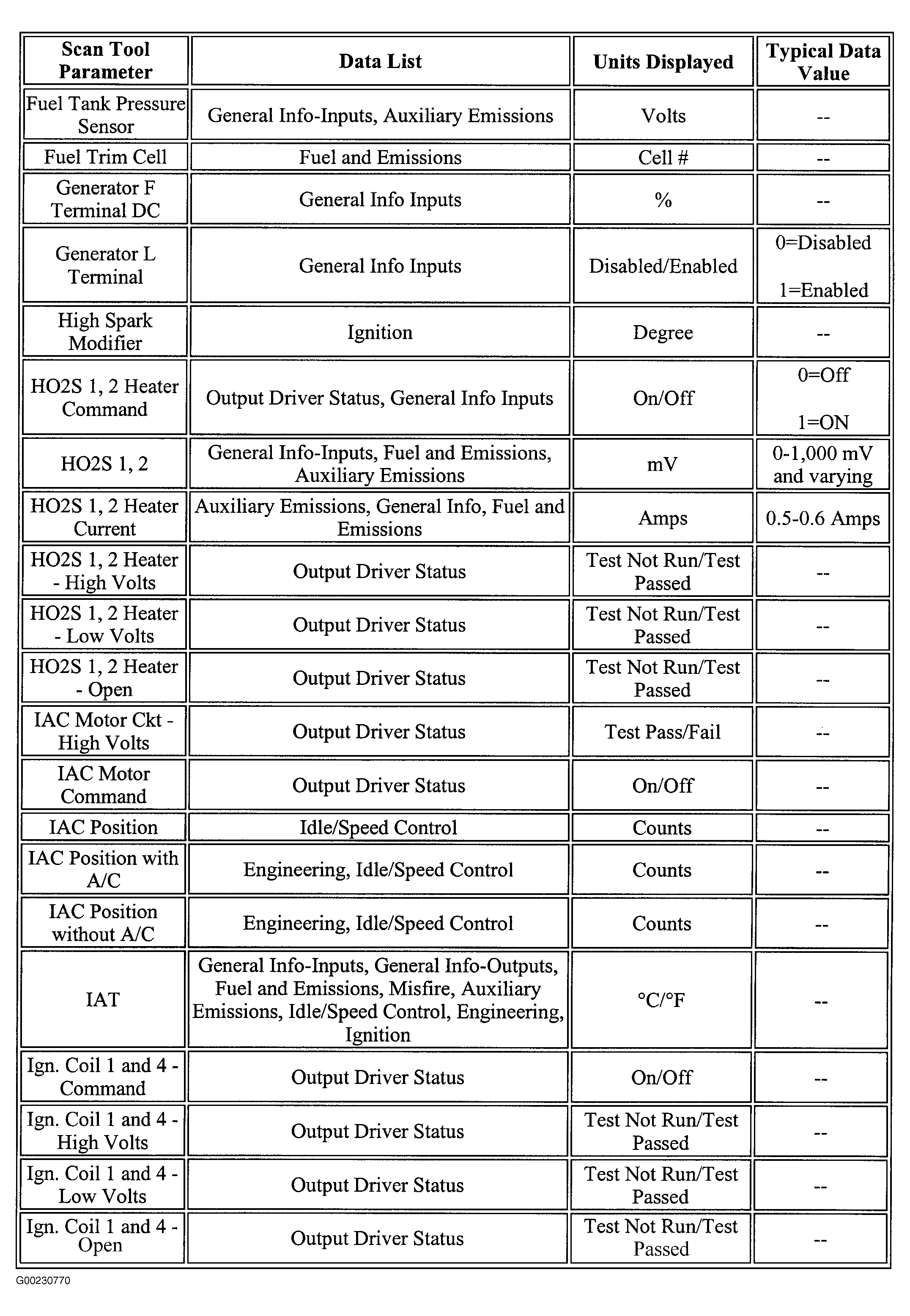

Fig 5: PID Values (5 Of 8)

G00230770

Courtesy of GENERAL MOTORS CORP.

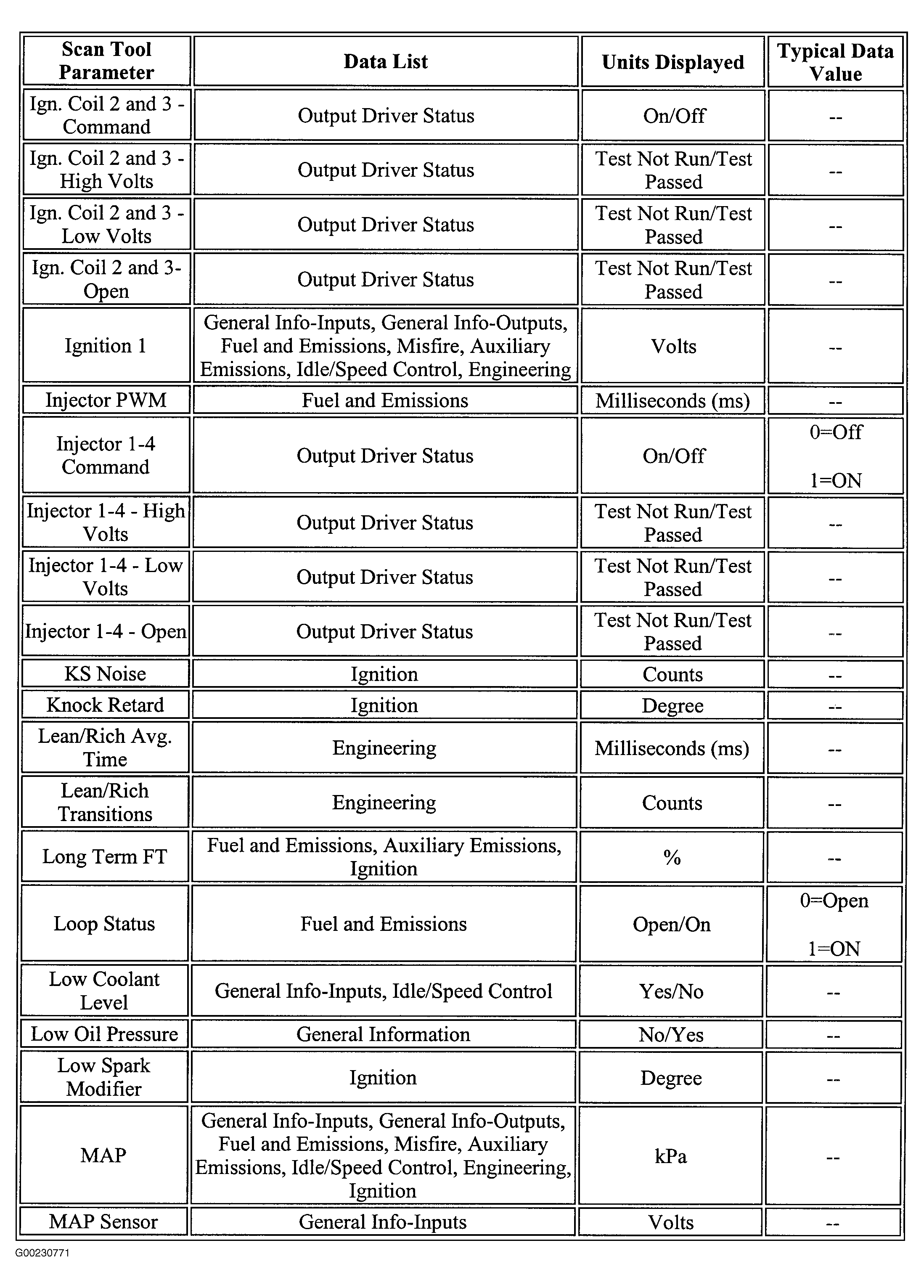

Fig 6: PID Values (6 Of 8)

G00230771

Courtesy of GENERAL MOTORS CORP.

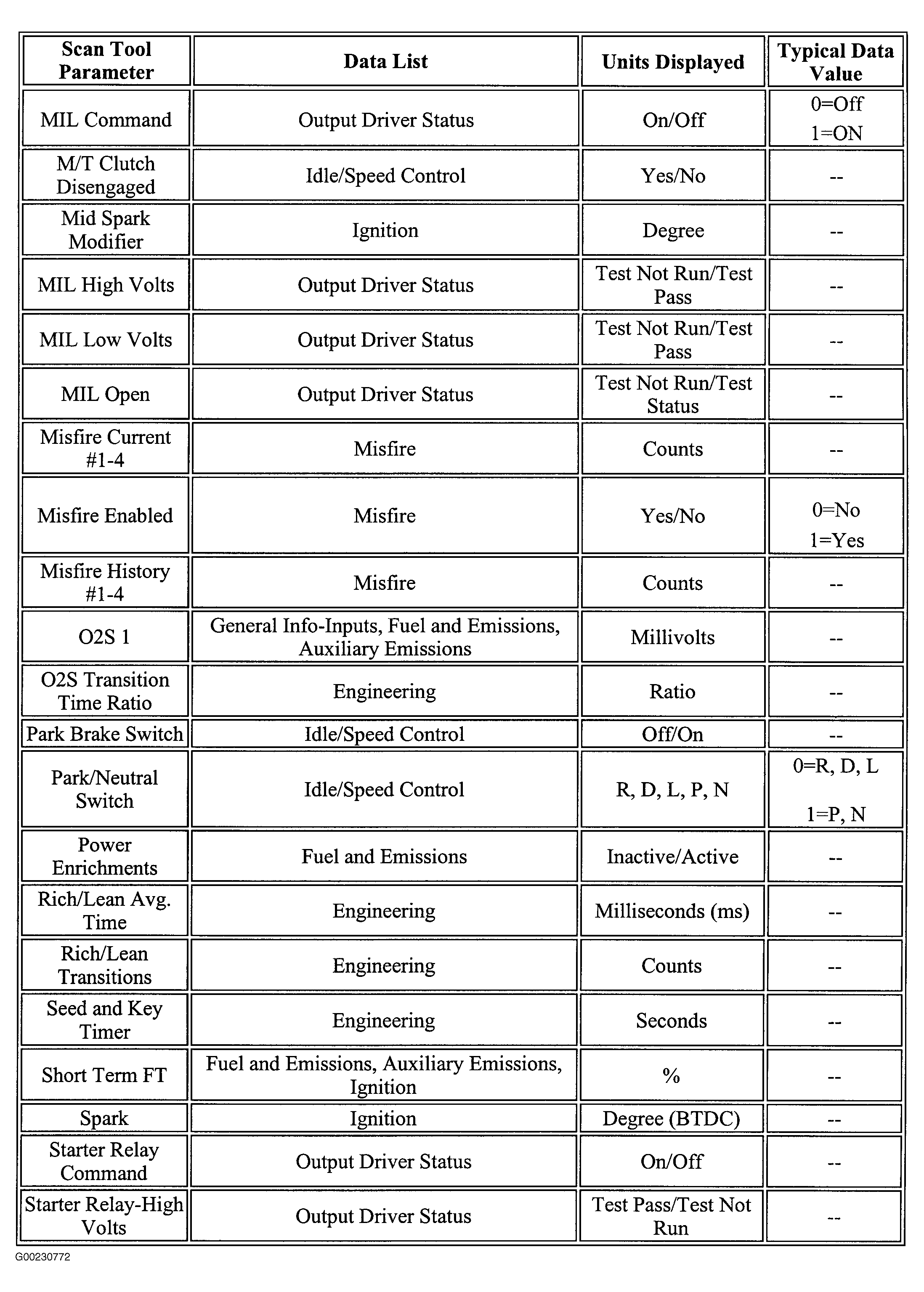

Fig 7: PID Values (7 Of 8)

G00230772

Courtesy of GENERAL MOTORS CORP.

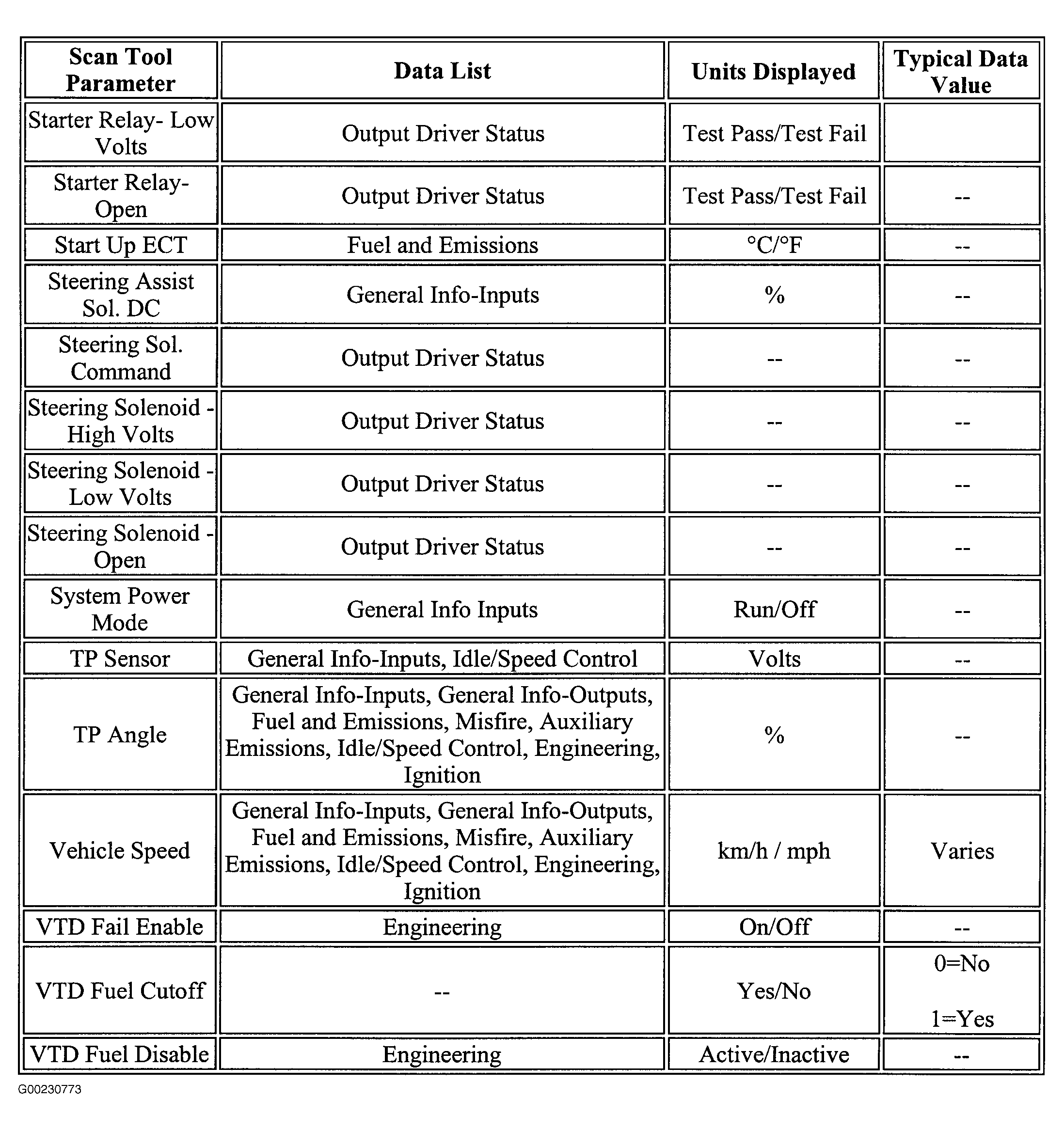

Fig 8: PID Values (8 Of 8)
