Transmission Control Module Connector End View C1
Transmission Control Module Connector End View C1

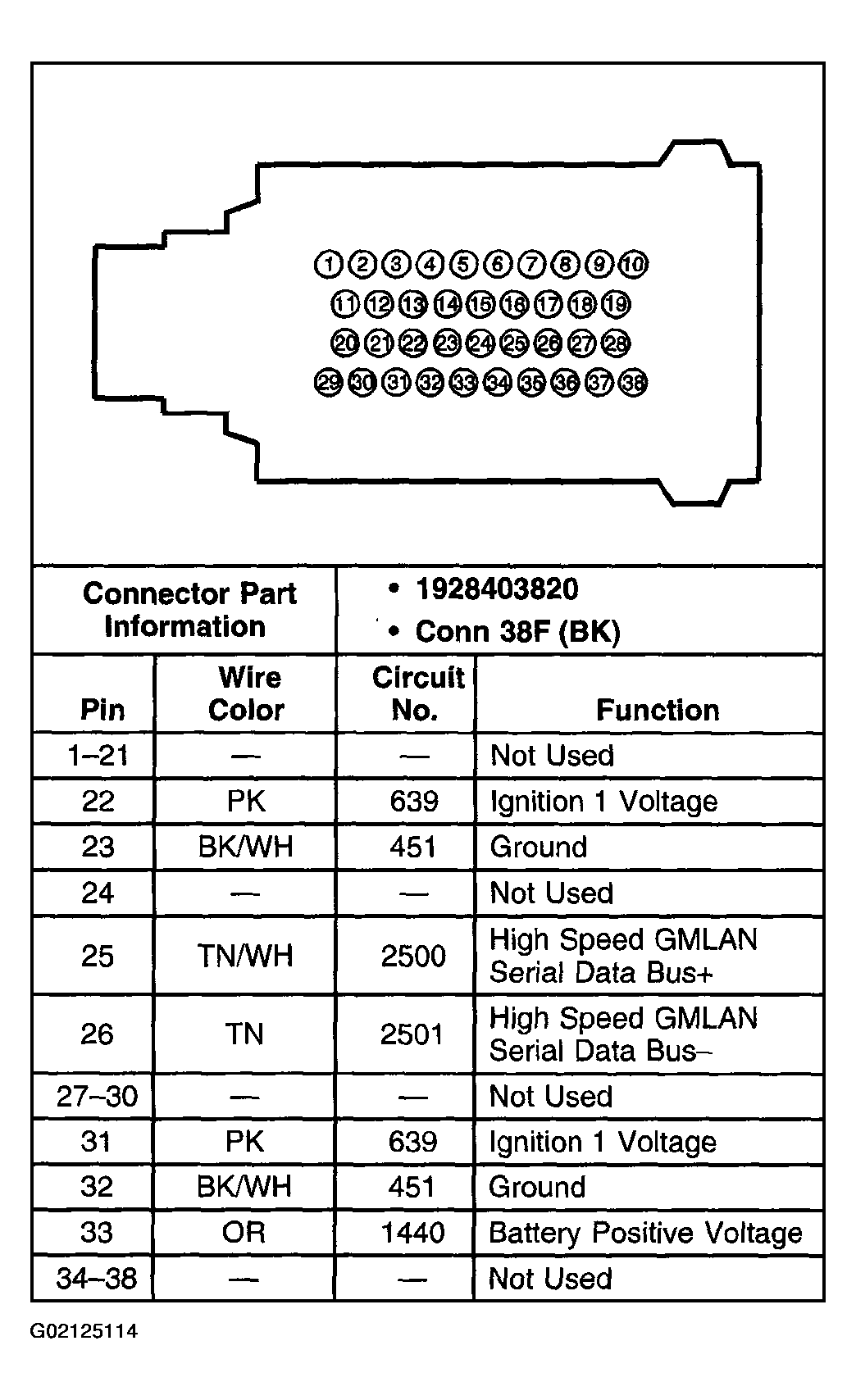

Fig 1: Transmission Control Module C1
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
