Accelerator Controls Cable Bracket: Installation

1. Install the accelerator bracket on the throttle body. Tighten the accelerator bracket bolts to specification. See TORQUE SPECIFICATIONS  .
2. Connect the accelerator control cable to the throttle body and accelerator bracket.
3. Install the air cleaner outlet resonator. See AIR CLEANER OUTLET RESONATOR  .

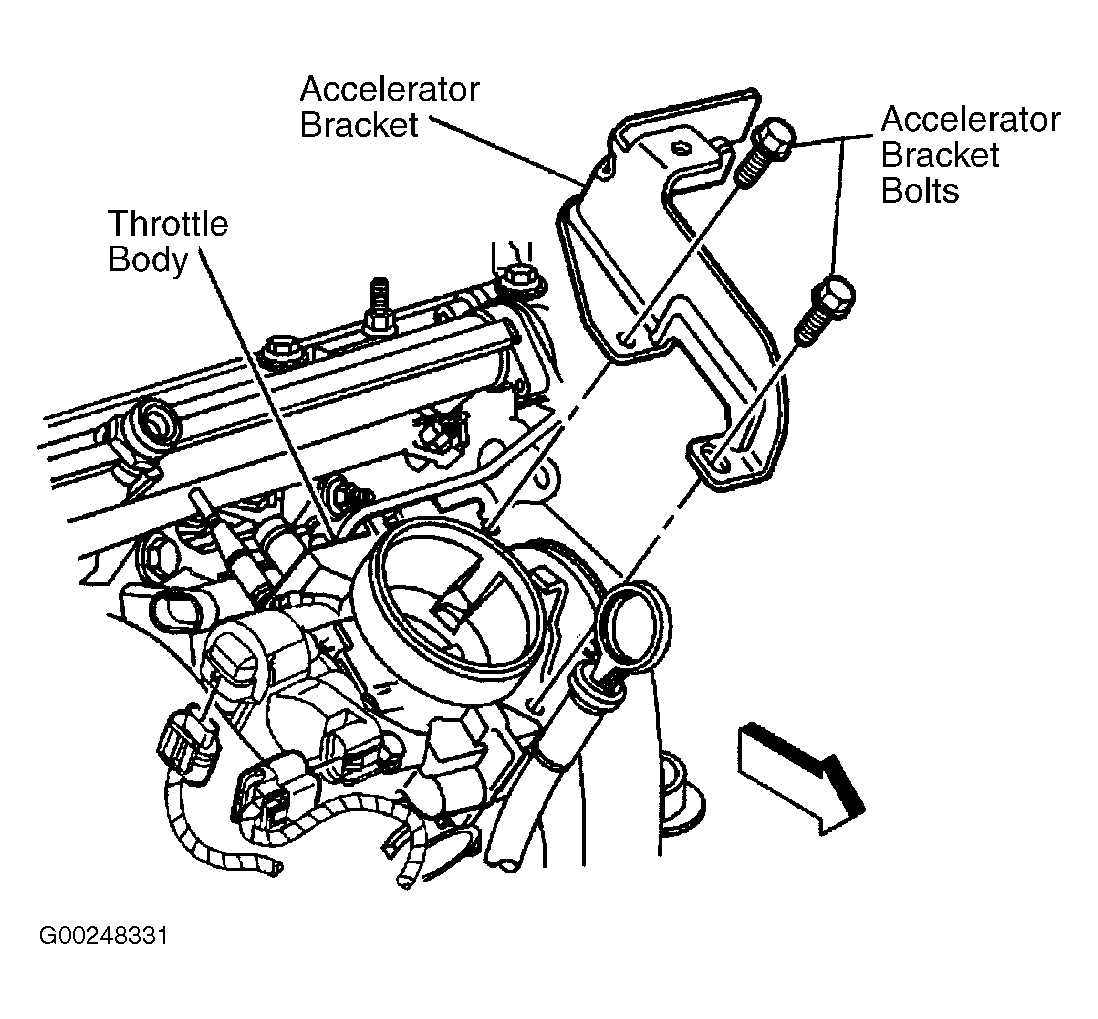

Fig 1: Removing & Installing Accelerator Bracket

Courtesy of GENERAL MOTORS CORP.
