Power and Grounding Component Views

Fig 1: Body Rear End Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery

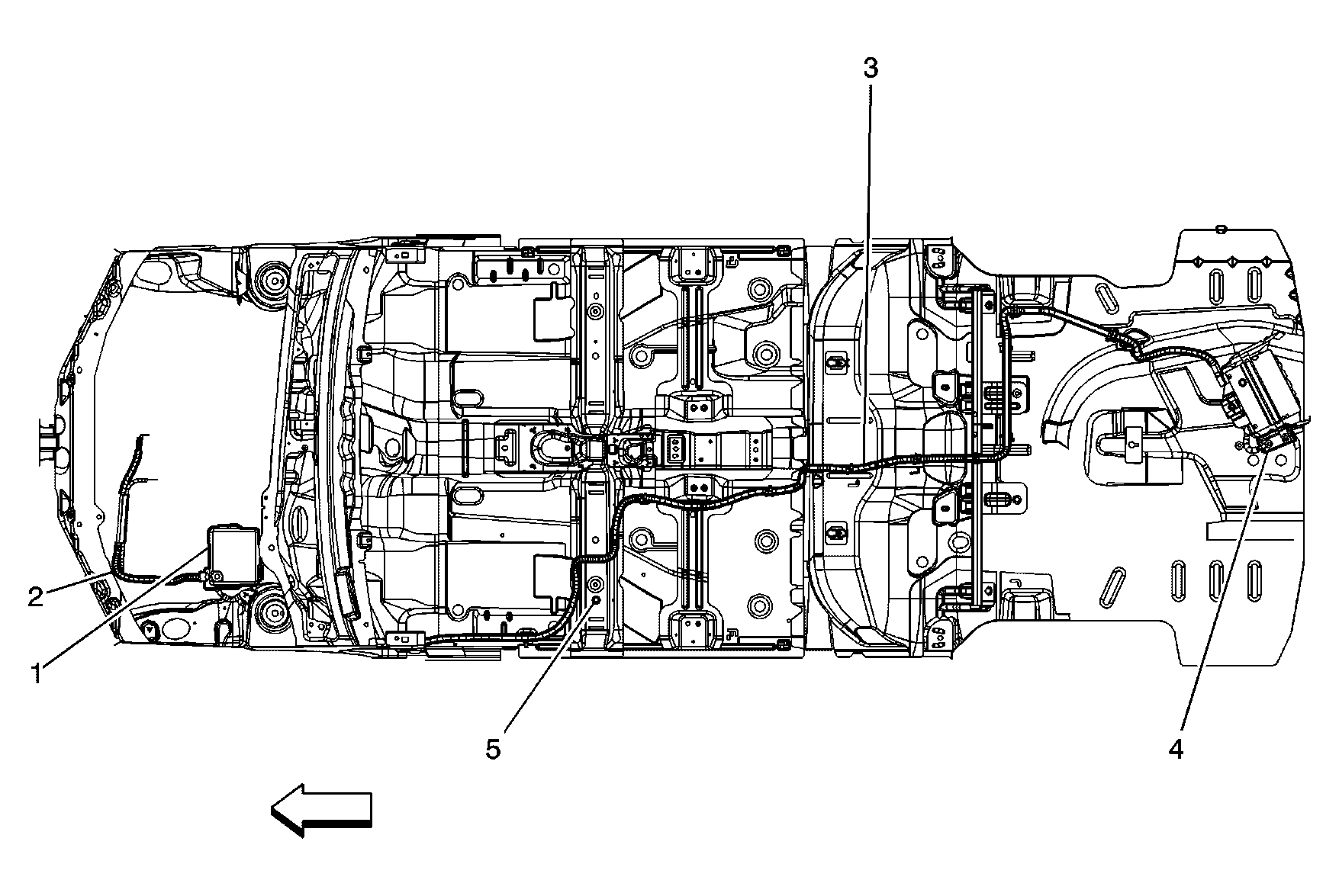

Fig 2: Battery Cable Routing Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood
2	G103
3	Battery Cable - Positive
4	G502
5	G301

Fig 3: Lower Center Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Control Module (BCM)

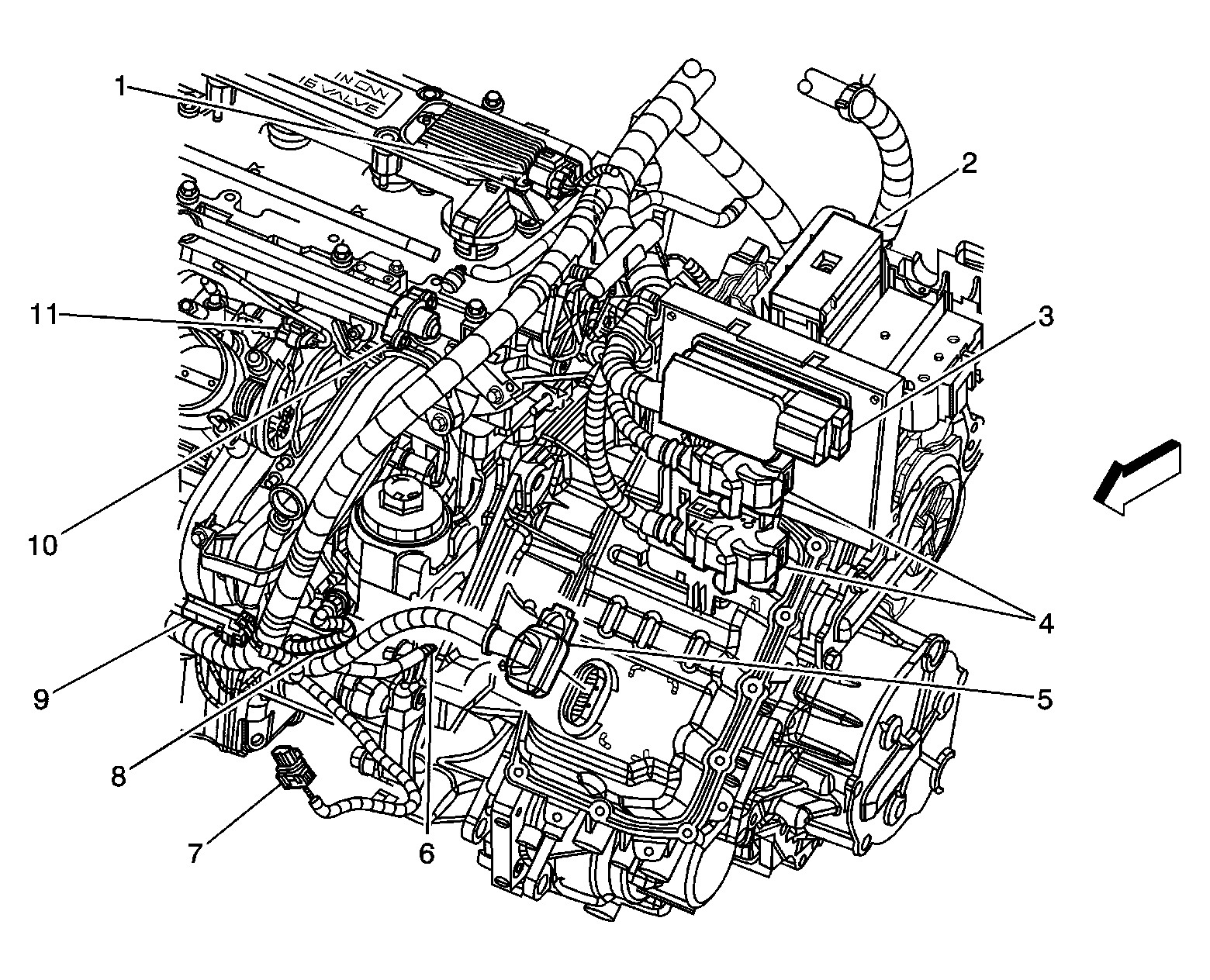

Fig 4: Front Left Side Of Engine (M75) Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Control Module (ICM)
2	Fuse Block Under Hood (FBUH)
3	Engine Control Module (ECM)
4	Transmission Control Module (TCM)
5	C100
6	G105
7	Engine Oil Pressure Switch
8	Crank Shaft Position Sensor
9	Knock Sensor (KS)
10	Fuel Injectors Rail
11	Manifold Absolute Pressure (MAP) Sensor

Fig 5: Under Left Side Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module Coil
2	Ignition Lock Cylinder Control Actuator (M43/M75)
3	Power Steering Control Module (PSCM)
4	Ignition Switch

Fig 6: Rear Shelf Of Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RR
2	Speaker - LR
3	G401/SP401
4	G403/SP403

Fig 7: Left Side Of Engine Compartment (JM4/JL9) Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C161
2	G109
3	Body Harness

Fig 8: Behind Left Side Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C225
2	G201
3	G203

Fig 9: Left Side Of Engine Compartment Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C121 (DF5)
2	G101/SP101
3	Electronic Brake Control Module (EBCM) (JM4/JL9)
4	Engine Control Module (ECM)
