Automatic Transaxle - AF23-5
›
Component Locator
›
Automatic Transmission Electronic Component Views
Automatic Transmission Electronic Component Views

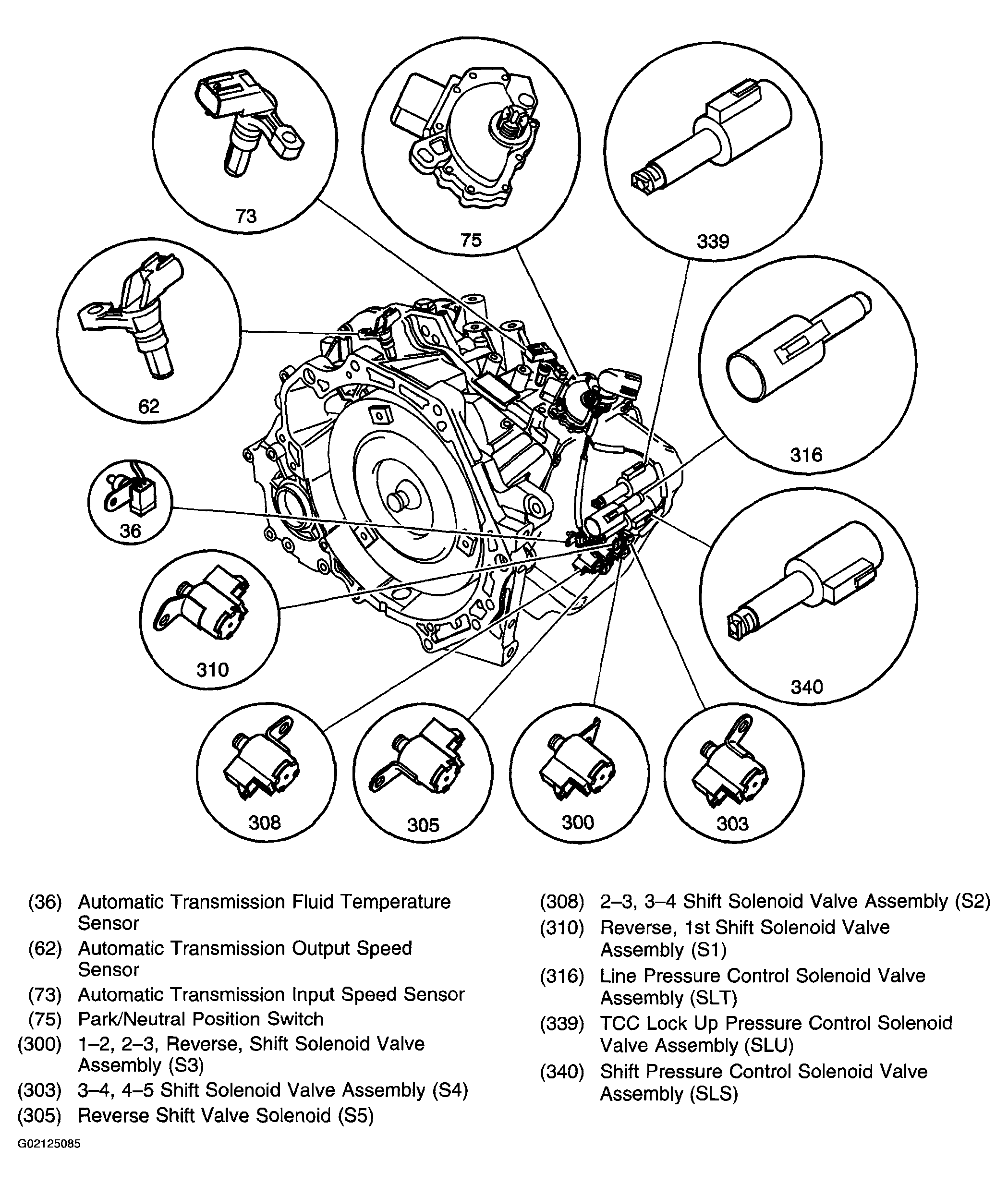

Fig 1: Electronic Component View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
