Component Location

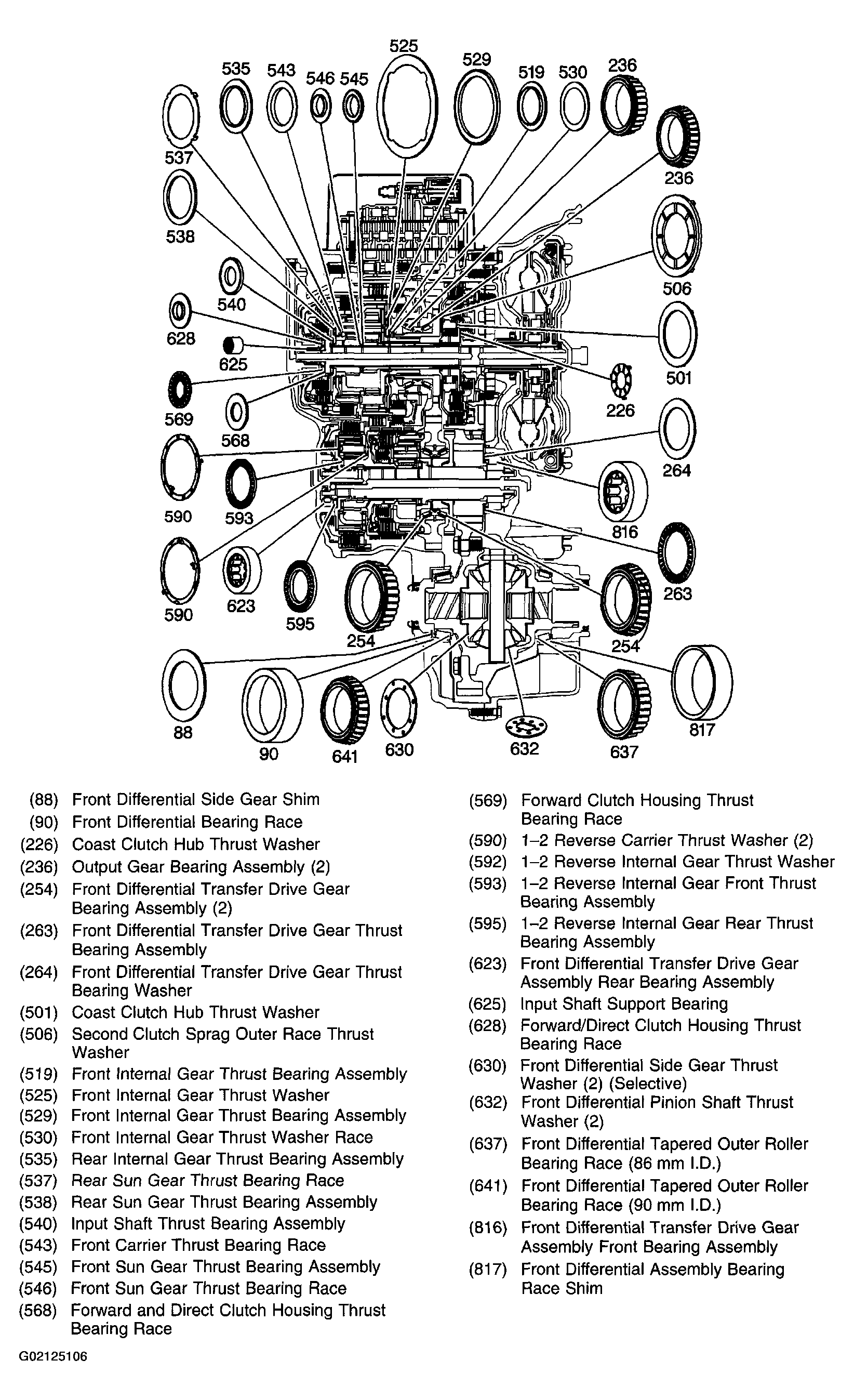

Fig 1: Bearing, Race & Thrust Washer Locations
G02125106Courtesy of GENERAL MOTORS CORP.

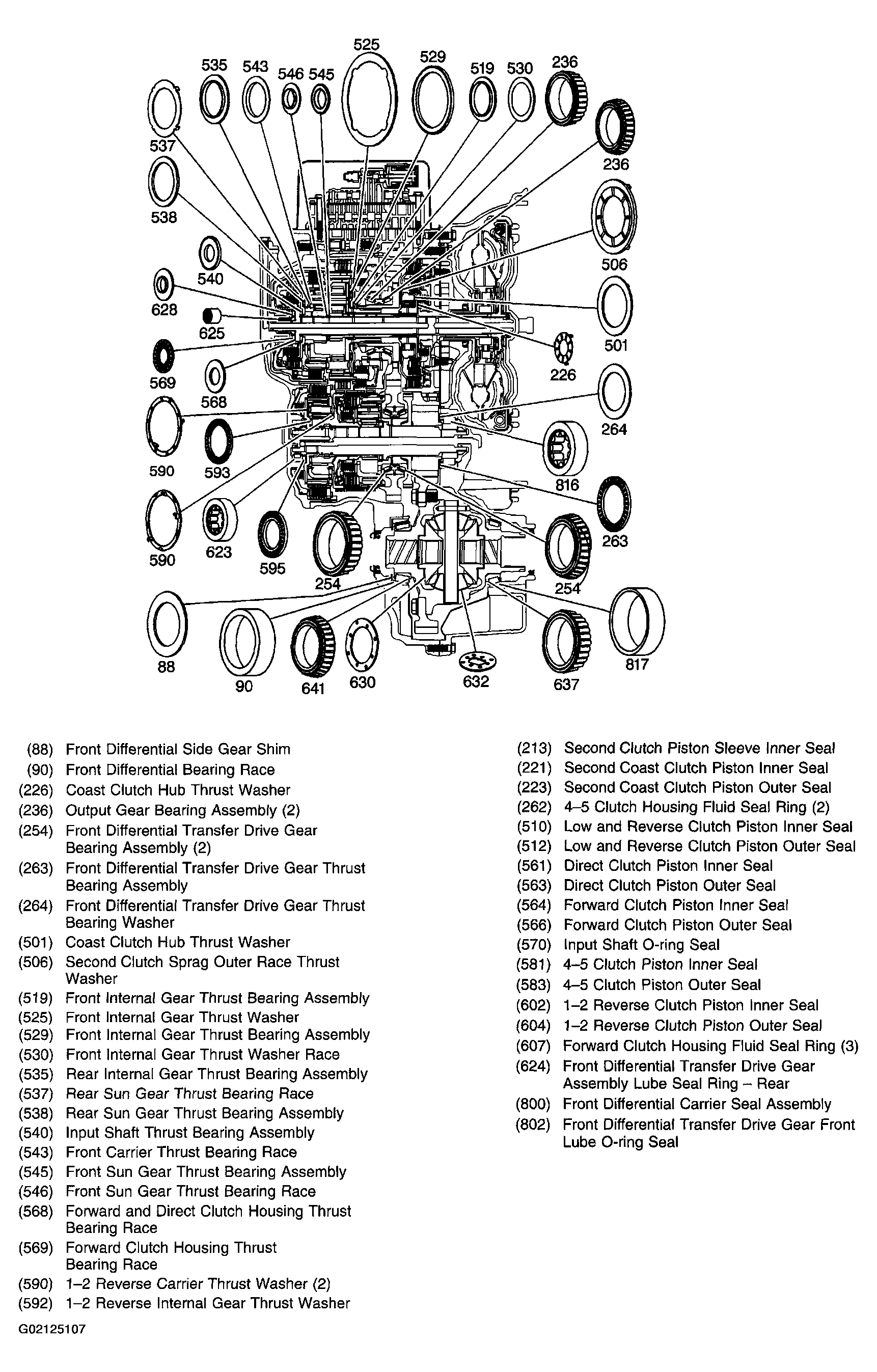

Fig 2: Seal Locations
G02125107Courtesy of GENERAL MOTORS CORP.
