Automatic Transaxle - AF23-5
›
Component Locator
›
Connector End Views
Connector End Views

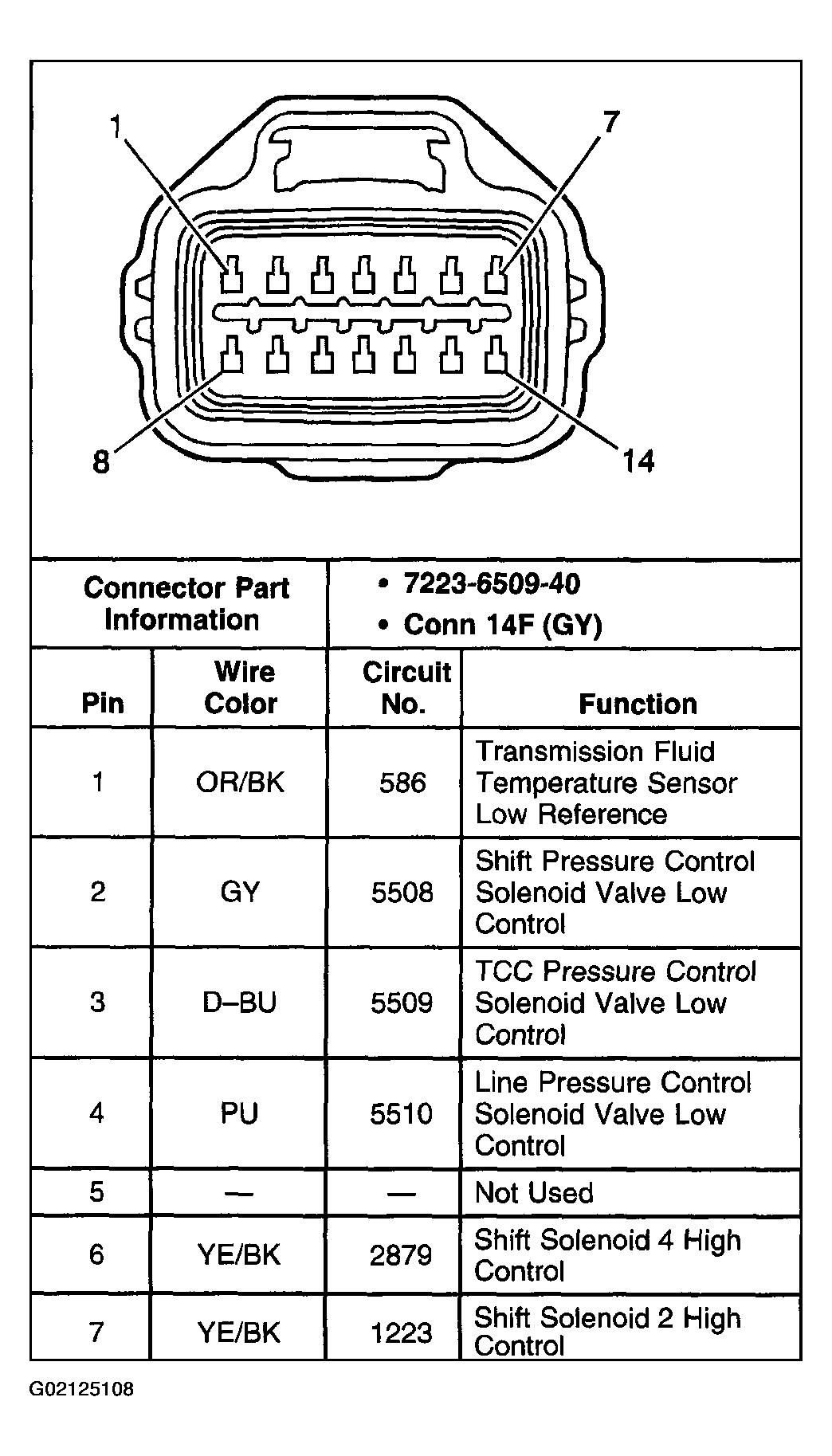

Fig 1: Transmission Inline Connector End View, Wiring Harness Side (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

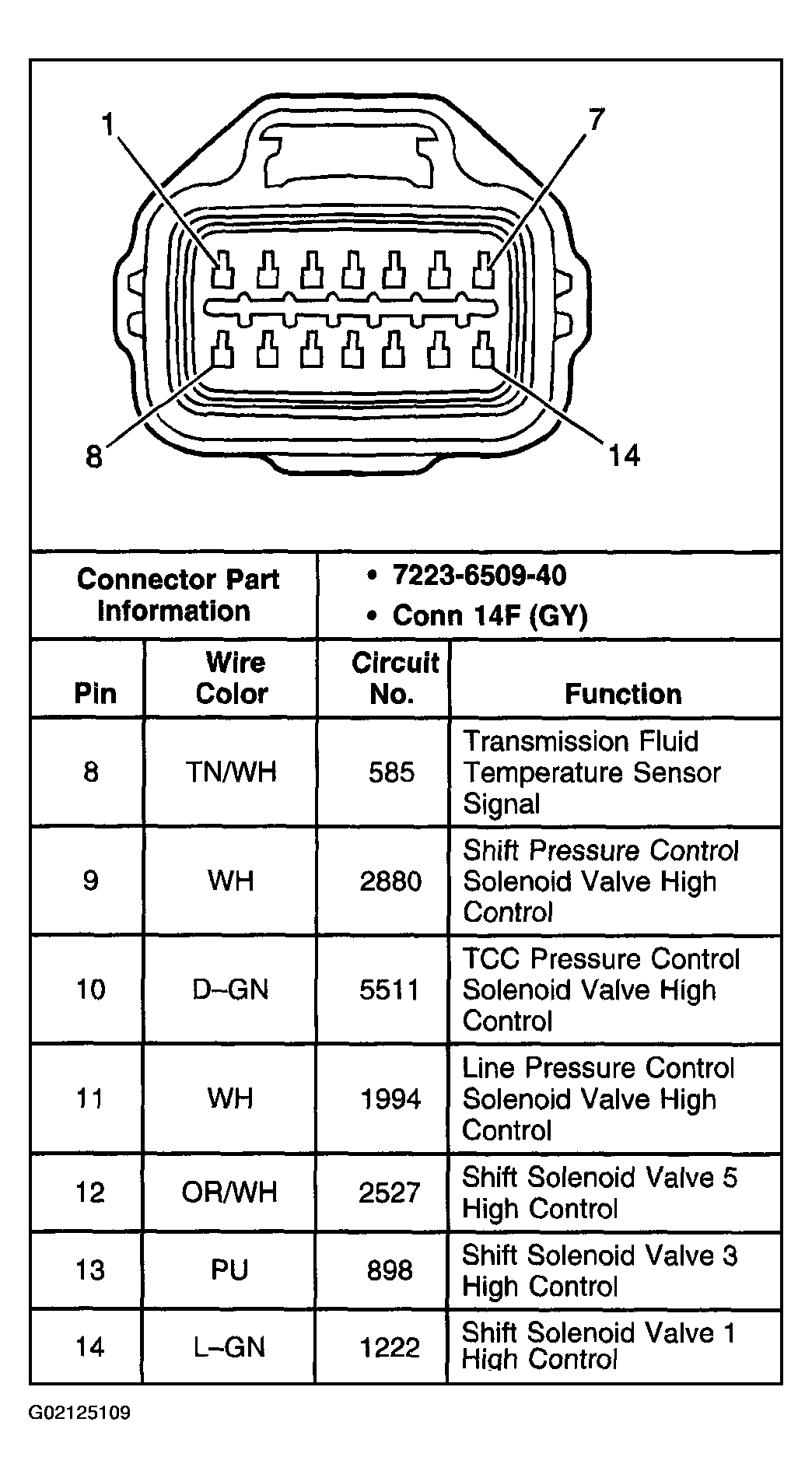

Fig 2: Transmission Inline Connector End View, Wiring Harness Side (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

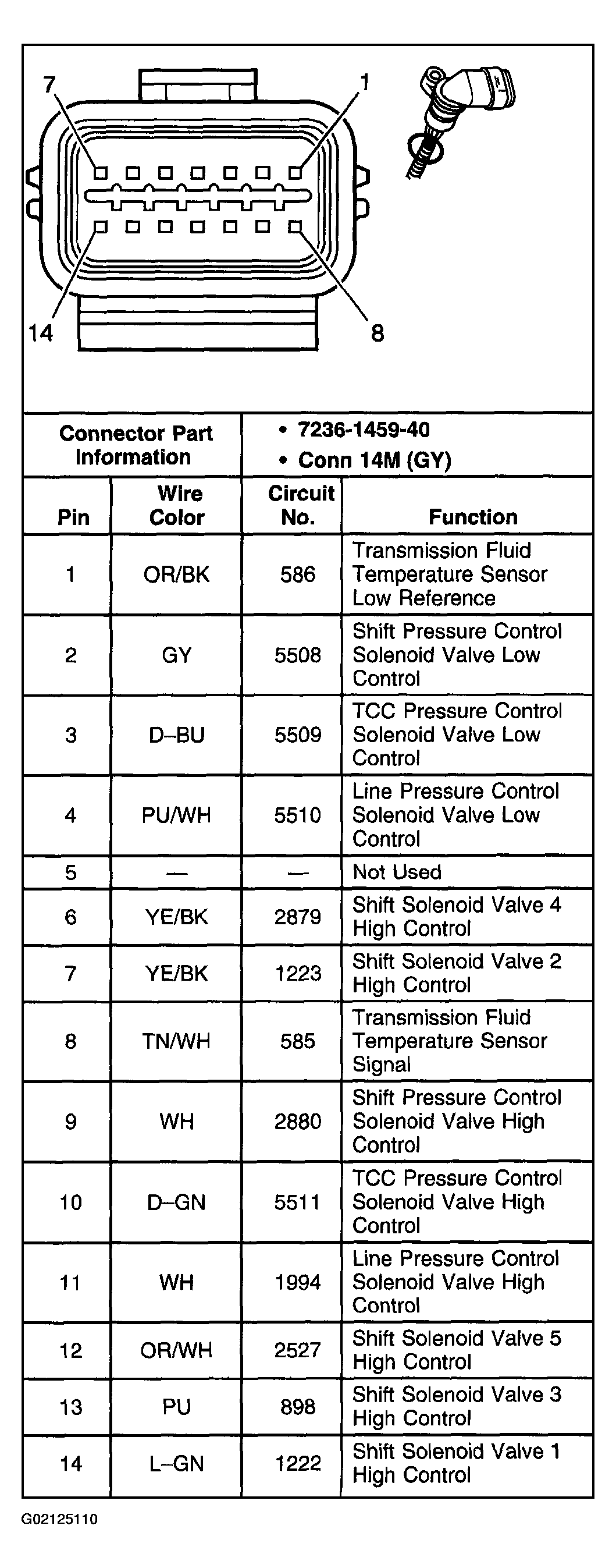

Fig 3: Transmission Inline Connector End View, Transmission Side
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
