Input Speed Sensor Removal

Important:  Do not damage the input speed sensor or transaxle case.

1. Remove the input speed sensor bolt/screw (72).
2. Remove the input speed sensor (73).
3. Remove the input speed sensor O-ring (71).

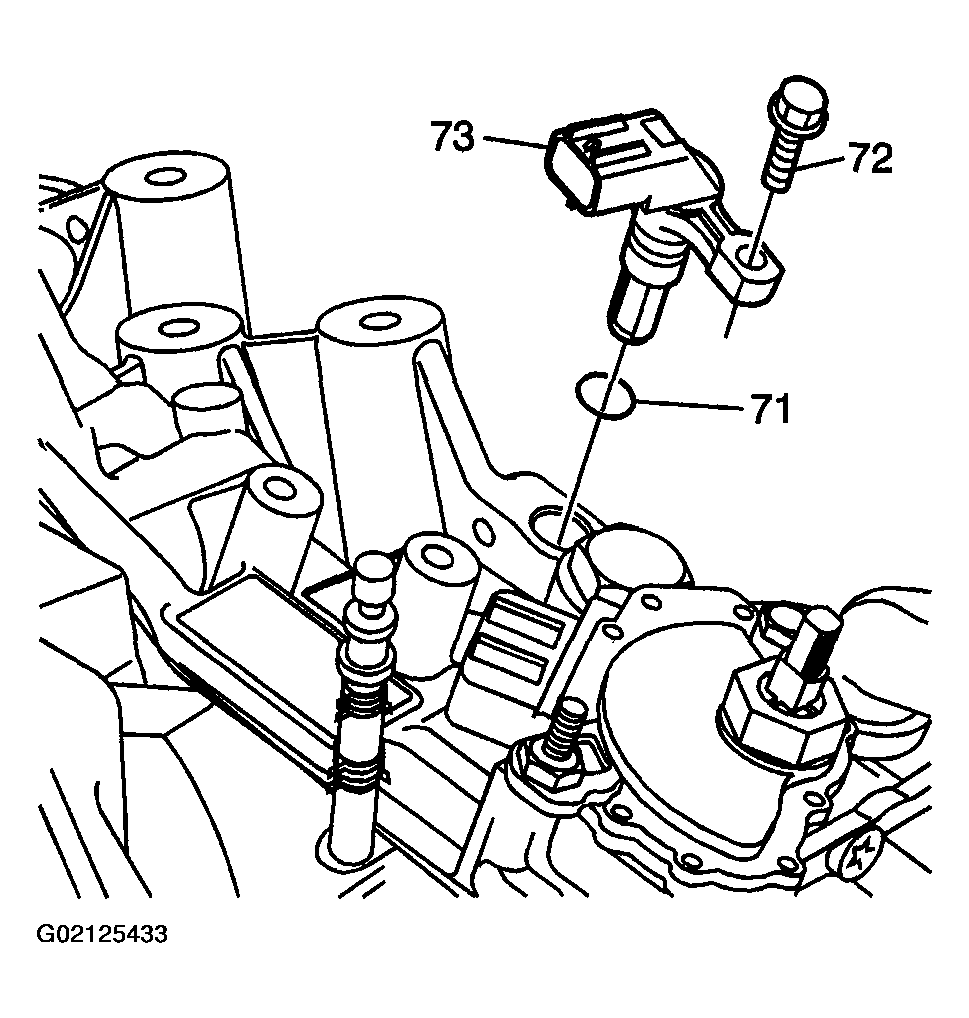

   Fig 1: Removing Input Speed Sensor, Bolt & O-Ring

   Courtesy of GENERAL MOTORS CORP.
