Output Speed Sensor Removal

Important:  Do not damage the output speed sensor or transaxle case.

1. Remove the output speed sensor bolt/screw (61).
2. Remove the output shaft speed sensor (62) and the O-ring (63).
3. Inspect the output speed sensor for damage.

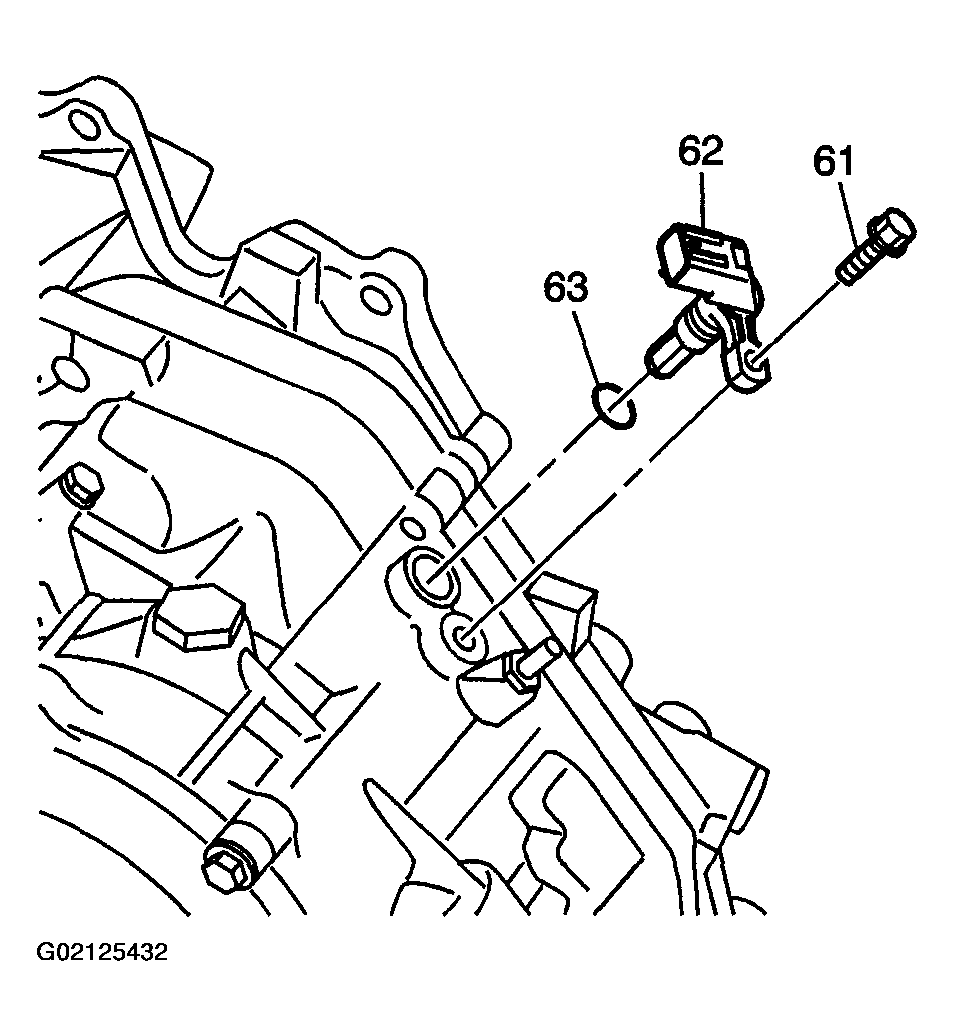

   Fig 1: Removing Output Shaft Speed Sensor, Bolt & O-Ring

   Courtesy of GENERAL MOTORS CORP.
