Transmission Range Switch Logic
Transmission Range Switch Logic

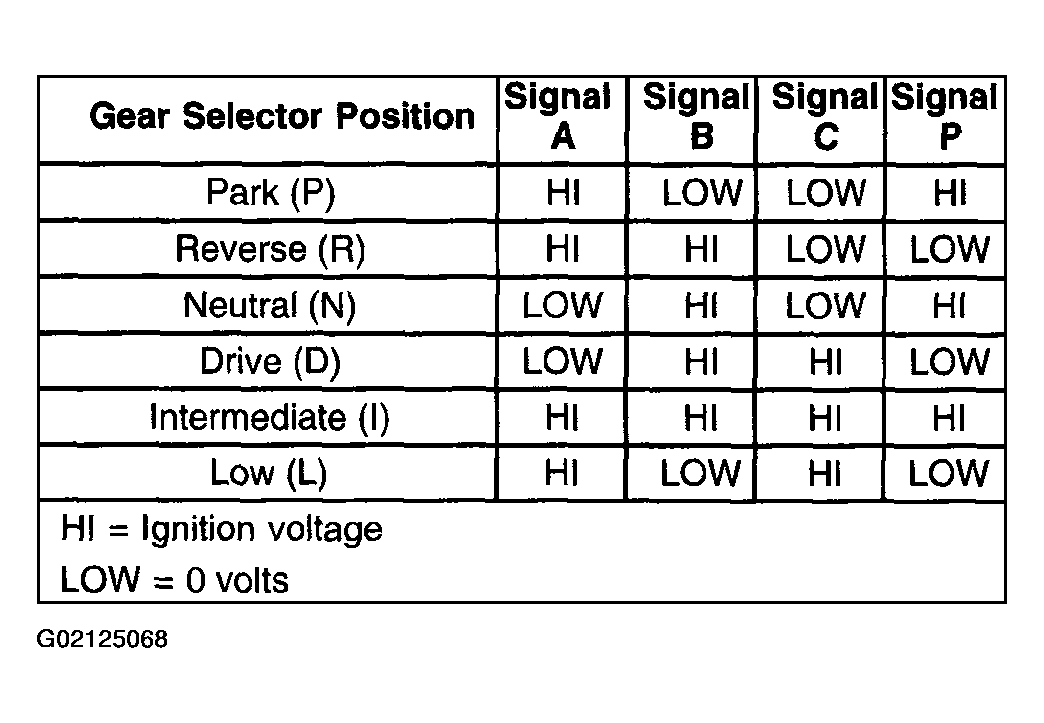

Fig 1: Transmission Range Switch Logic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
