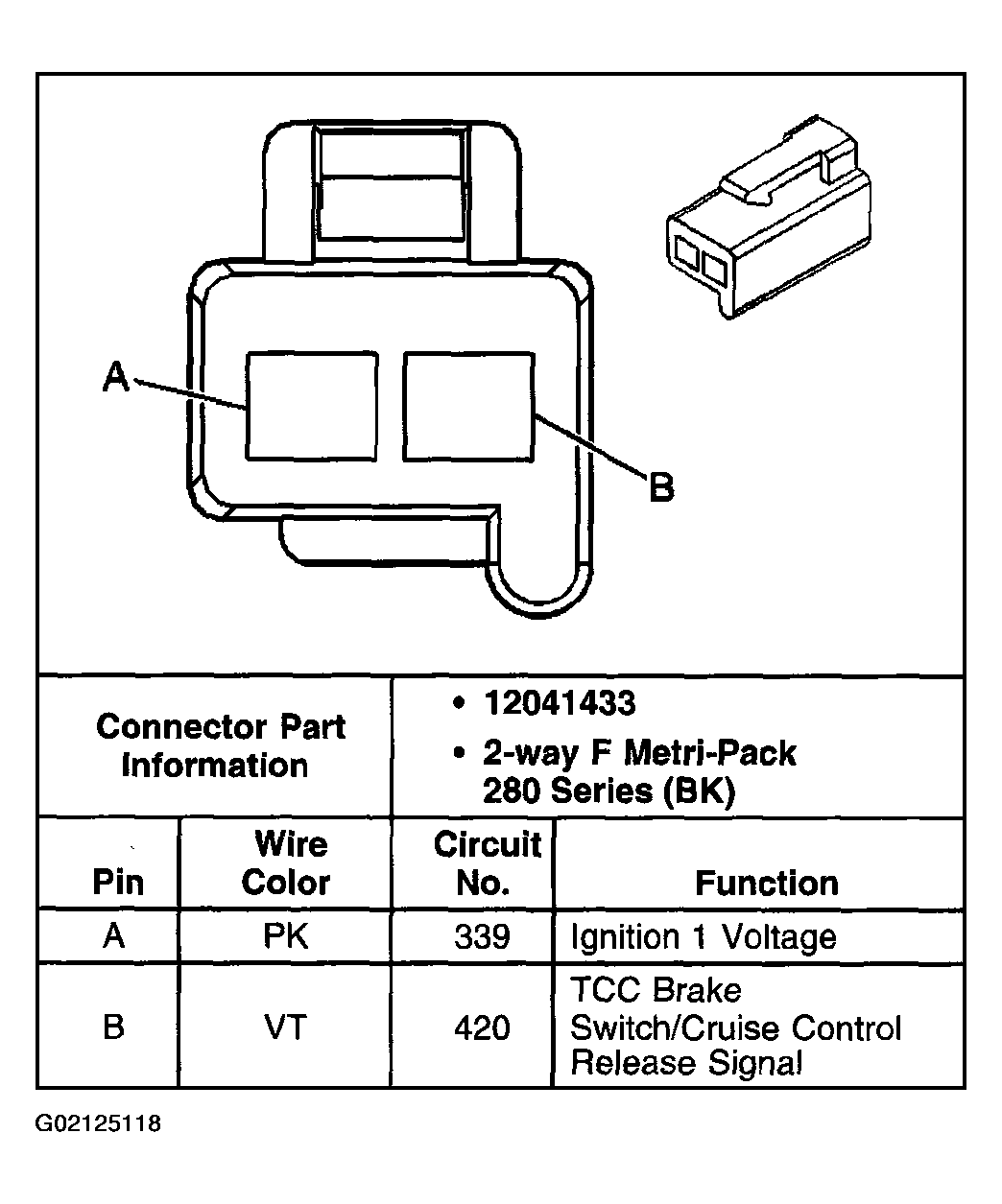

Stop Lamp Switch Connector End View - Lower

Stop Lamp Switch - Lower

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12041433 2 Way F Metri-Pack 280 Series (BK)
Pin	Wire Color	Circuit No.	Function
A	PK	339	Ignition 1 Voltage
B	VT	420	Stop Lamp Switch Signal

Fig 1: Stop Lamp Switch - Lower

Courtesy of GENERAL MOTORS CORP.
