Transmission Control Module Connector End View C2 (2 Of 2)

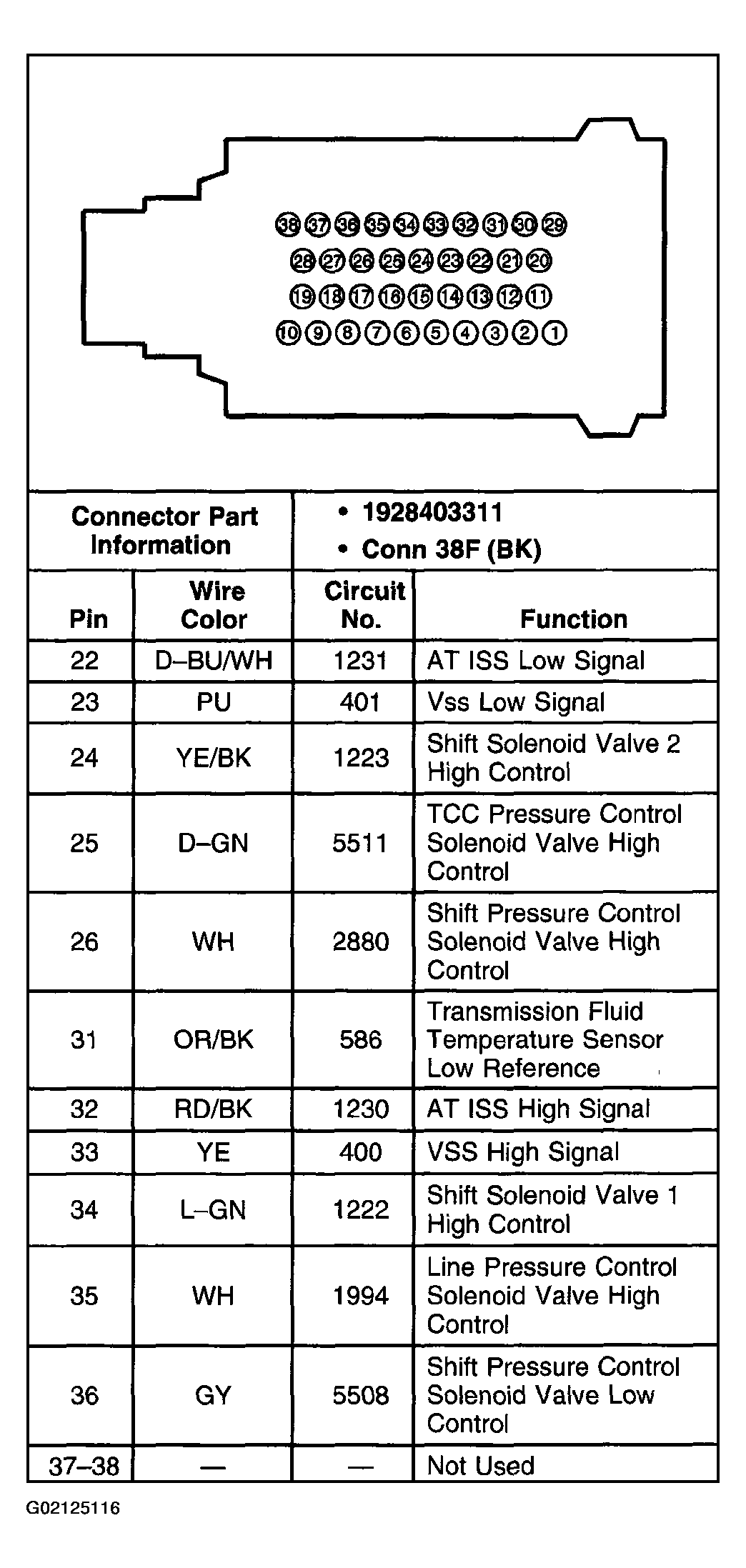

Fig 1: Transmission Control Module C2 (2 Of 2)
G02125116Courtesy of GENERAL MOTORS CORP.
