Speed Sensor Harness 7-Way Connector End View
Speed Sensor Harness 7-Way Connector End View

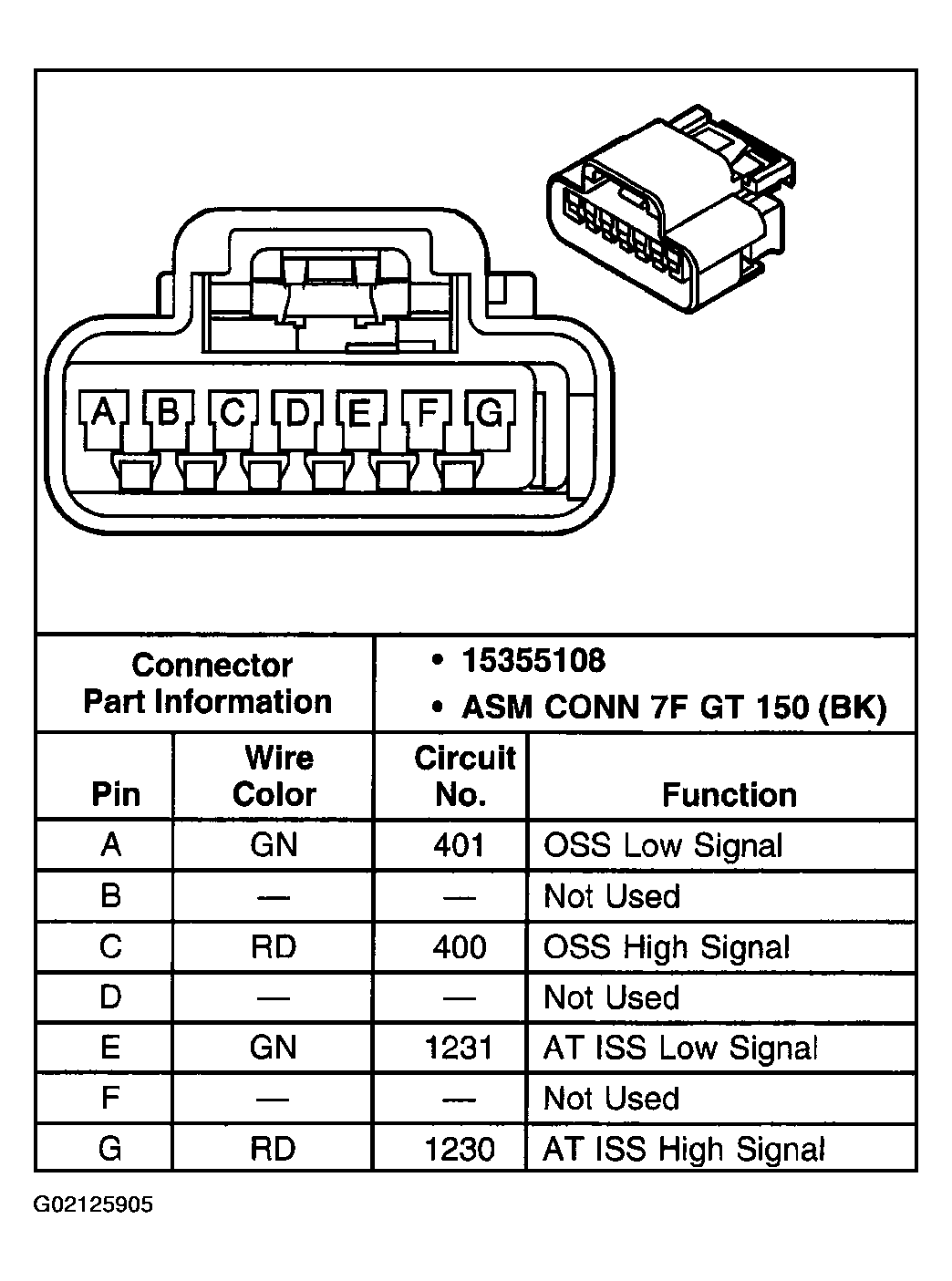

Fig 1: Speed Sensor Harness 7-Way
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
