Transmission Control Module Harness 64-Way Connector End View C2 (1 Of 2)

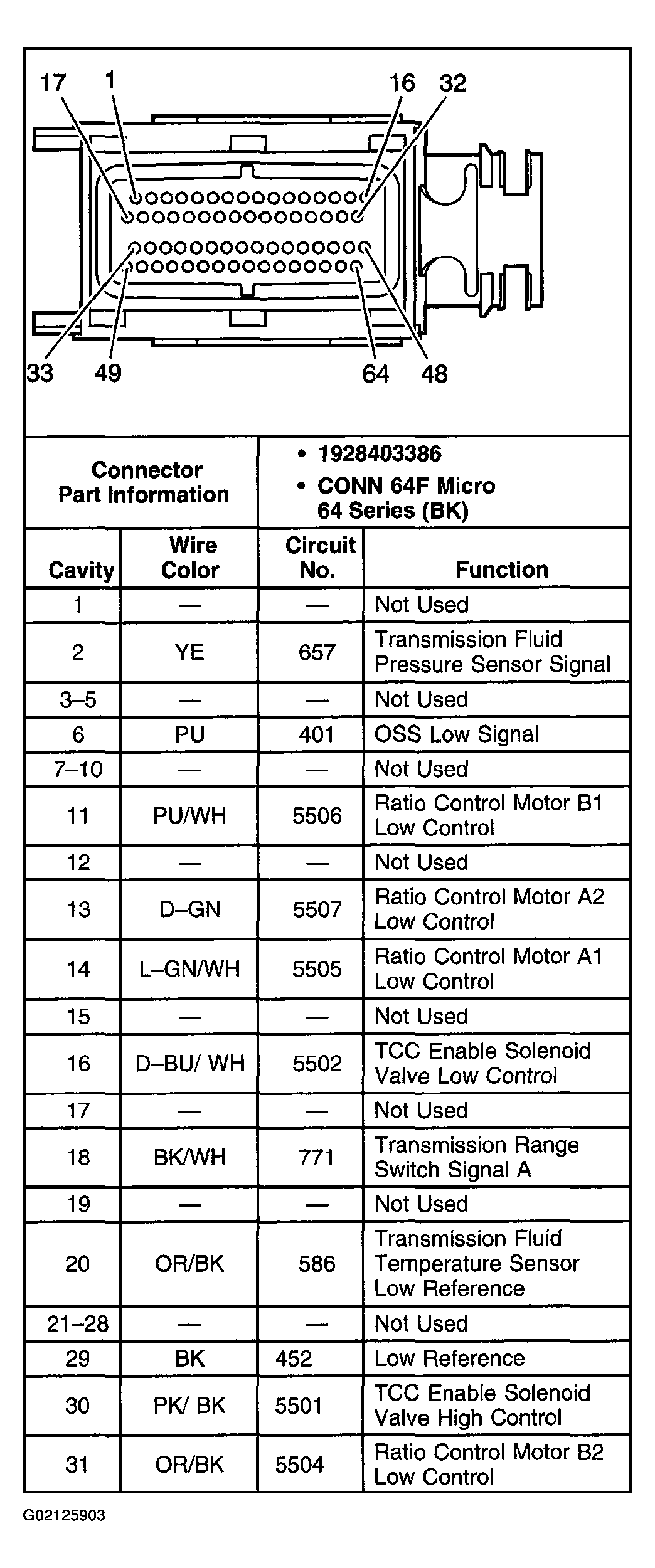

Fig 1: Transmission Control Module Harness 64-Way C2 (1 Of 2)
G02125903Courtesy of GENERAL MOTORS CORP.
