Shift Control Assembly: Removal

1. Remove the left front wheel.
2. Disconnect the shift cables from the transaxle. See Fig 1 .
3. Shift the transaxle into Neutral.
4. Remove the shifter guide bolt. See Fig 2 .
5. Remove the 5 shifter retaining bolts. See Fig 3 .
6. Remove the shifter assembly from the vehicle.

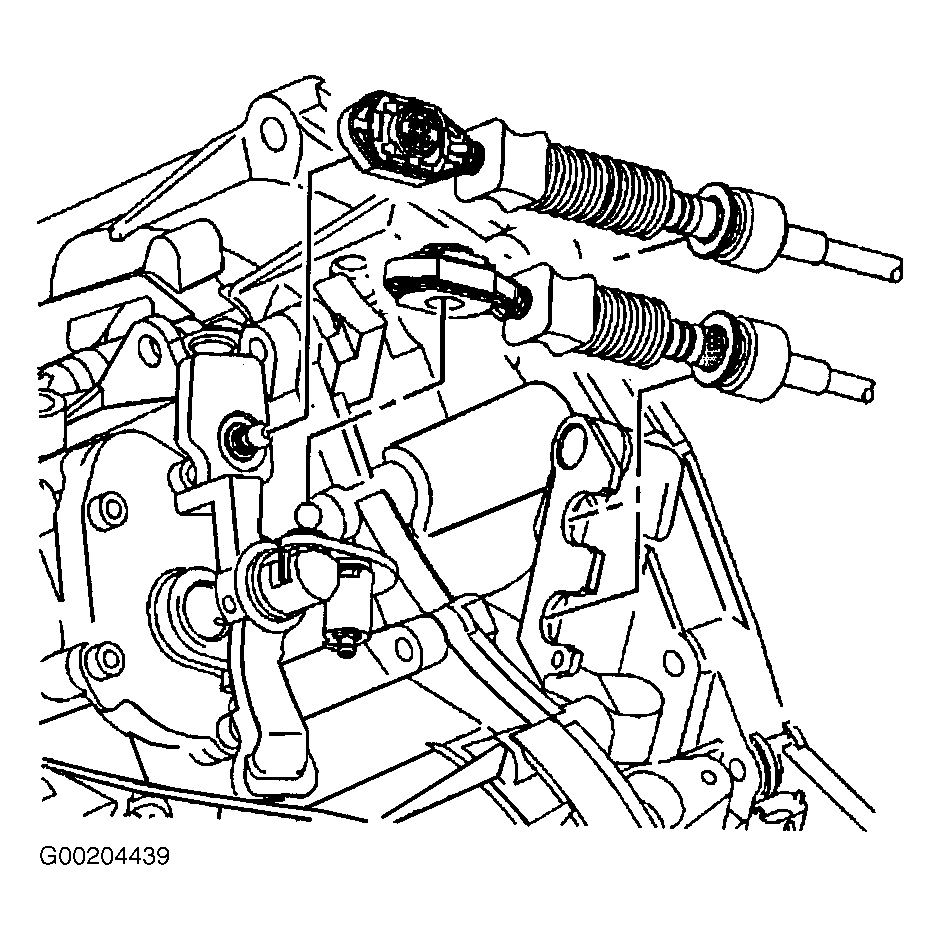

Fig 1: Disconnecting Shift Cables

Courtesy of GENERAL MOTORS CORP.

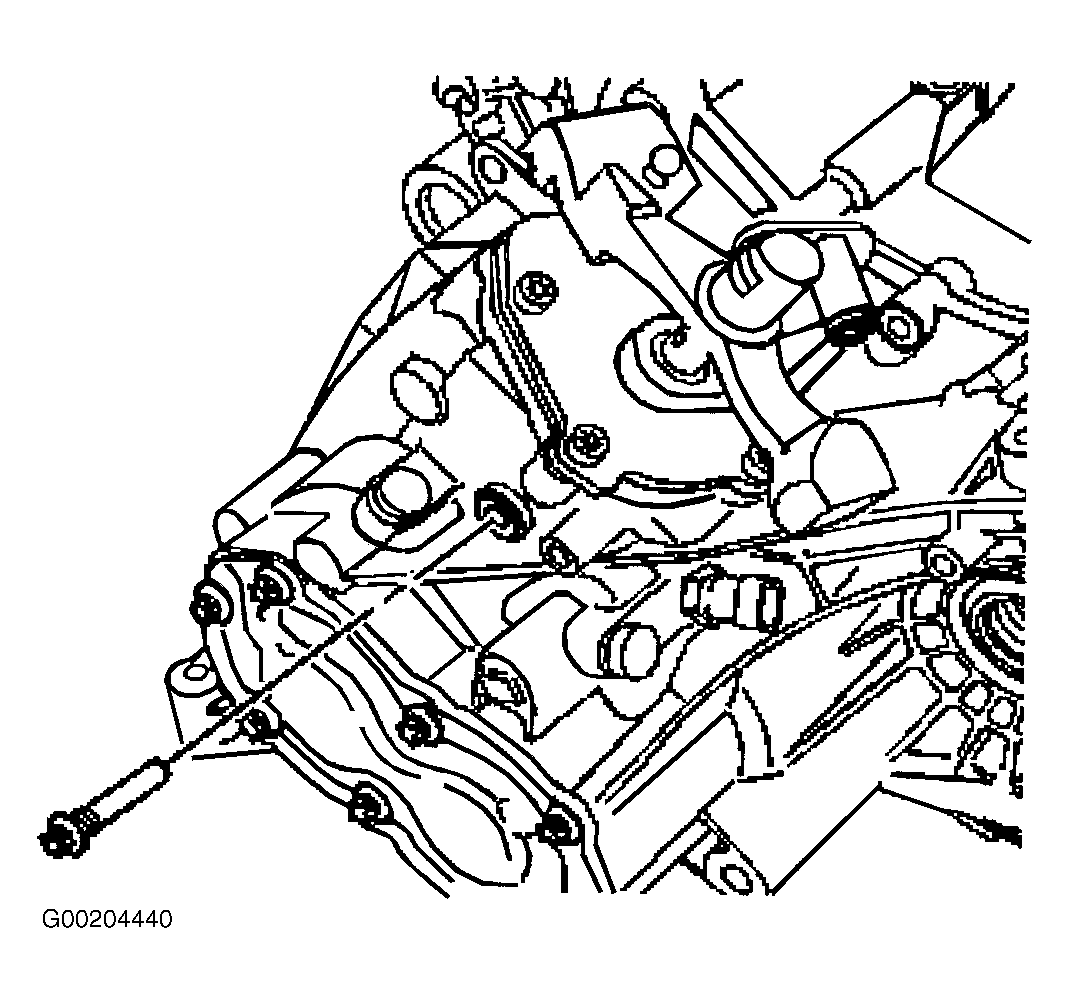

Fig 2: Removing Shifter Guide Bolt

Courtesy of GENERAL MOTORS CORP.

Fig 3: Removing Shifter Assembly

Courtesy of GENERAL MOTORS CORP.
