ABS Component Views

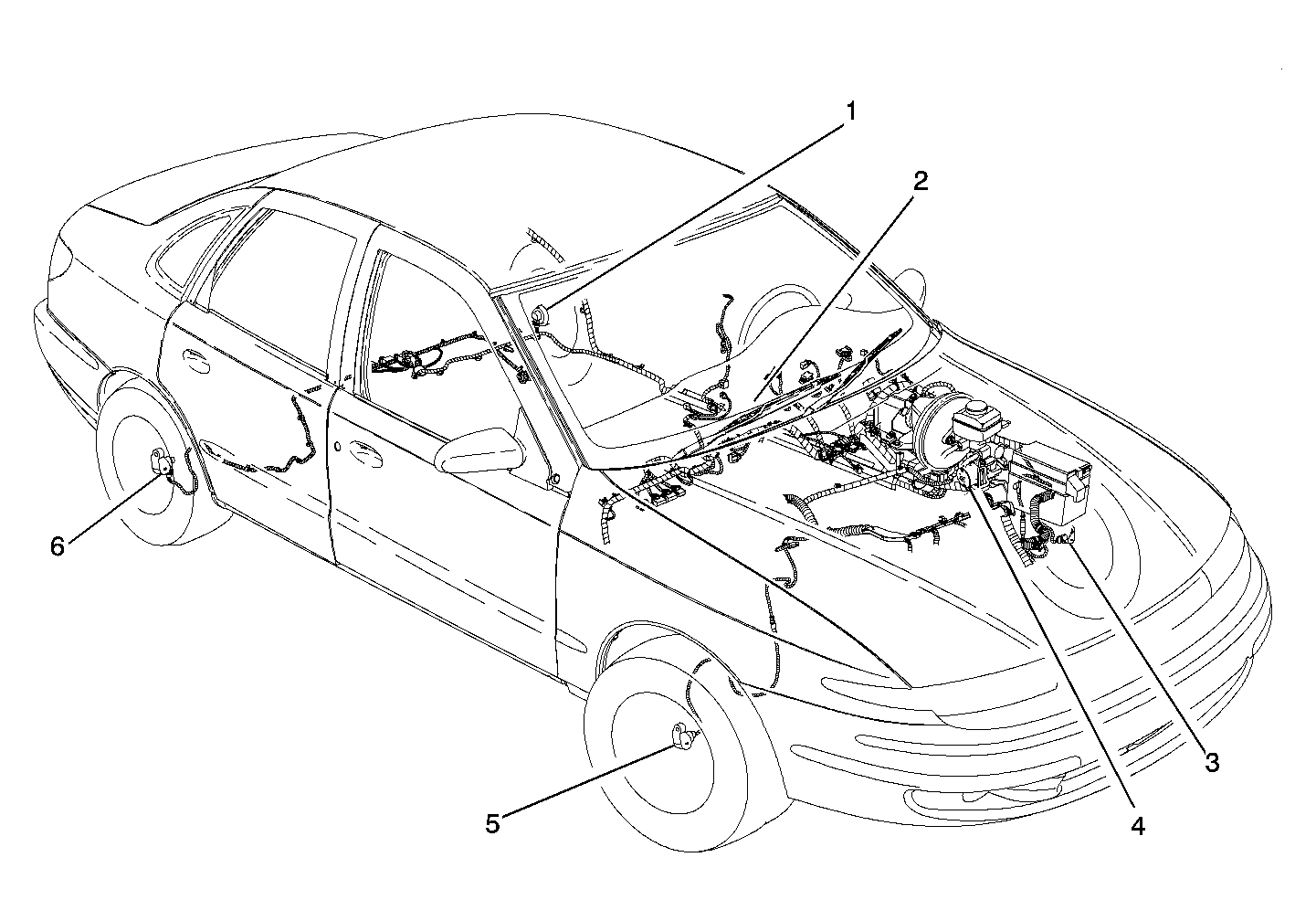

Fig 1: ABS Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS)- LR
2	Right Heated Seat/Traction Switch
3	Wheel Speed Sensor (WSS)- LF
4	Electronic Brake Control Module (EBCM)
5	Wheel Speed Sensor (WSS)- RF
6	Wheel Speed Sensor (WSS)- RR
