Installation Procedure

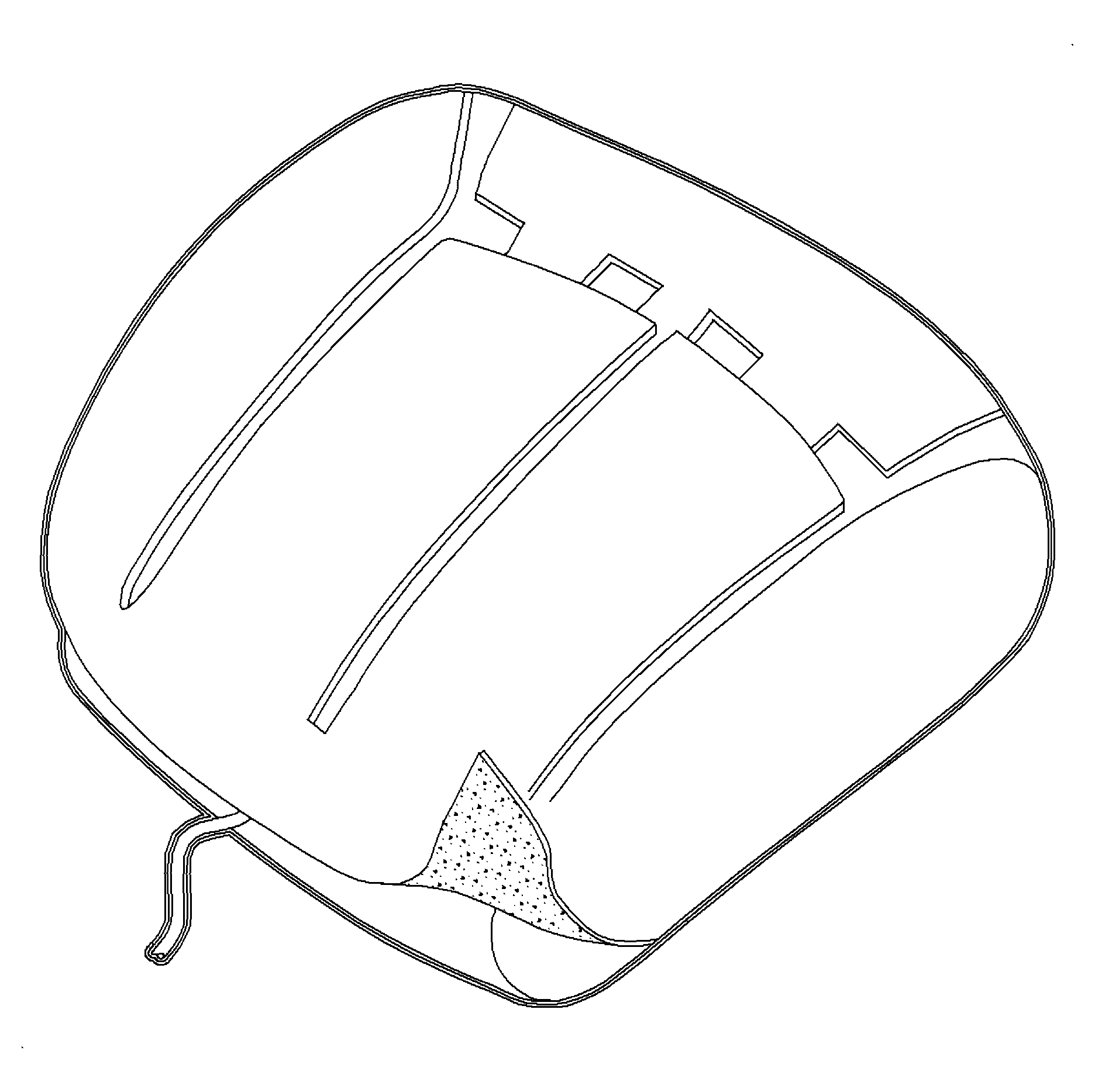

Fig 1: Heat Pad On Seat Foam

Courtesy of GENERAL MOTORS CORP.

Peel off the self-stick paper from the heat pad.
Position the heat pad on the foam and gently press to adhere the heat pad to the foam.

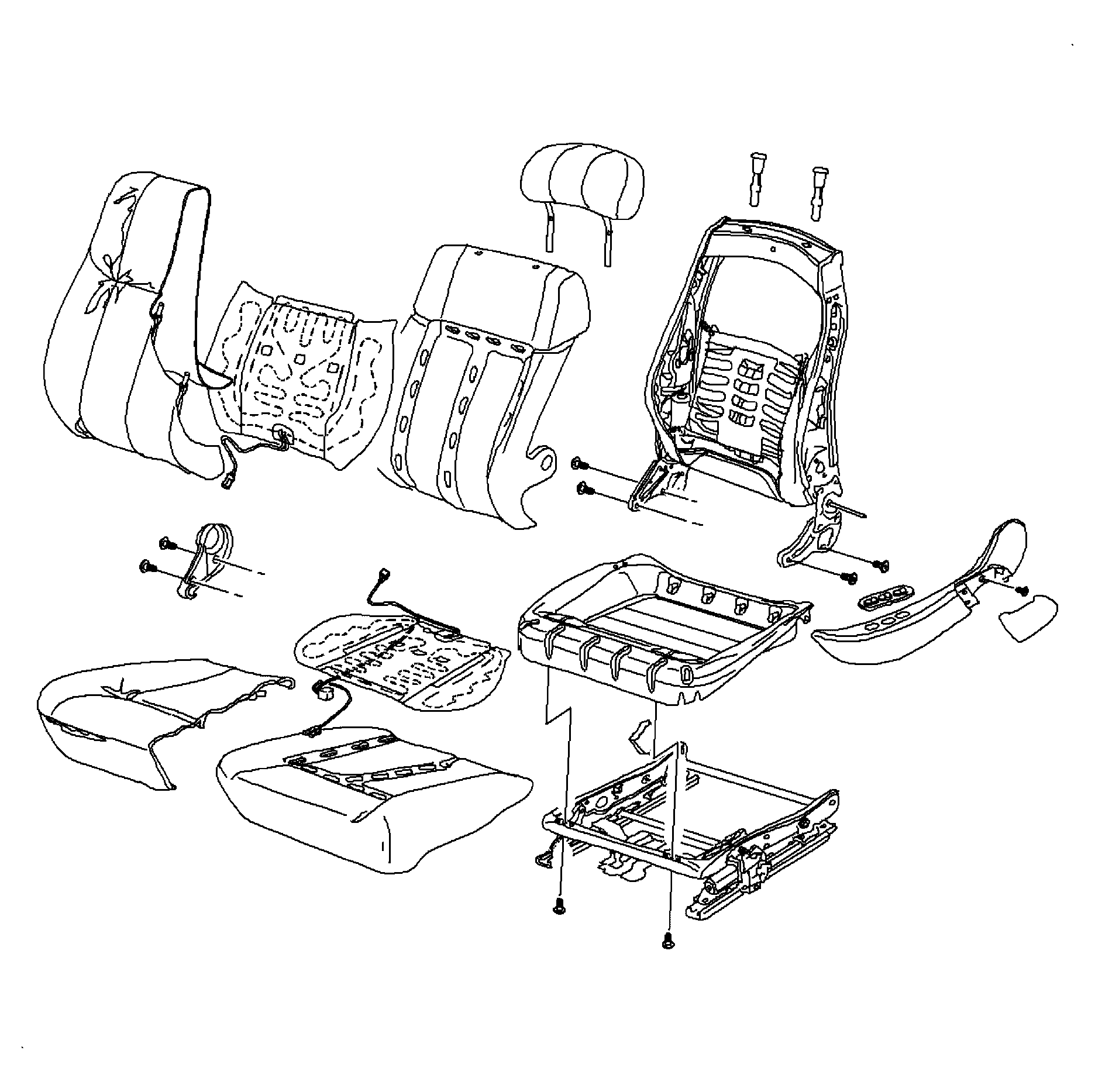

Fig 2: Exploded View Of Front Seat Assembly

Courtesy of GENERAL MOTORS CORP.

Install the seat cushion cover/pad. Refer to Seat Cushion Cover and Pad Replacement - Front (w/ Drawstring) or Seat Cushion Cover and Pad Replacement - Front (w/ J-Strip) .
