DTC P0101: MAF System Performance
›
Diagnostic Procedure
Diagnostic Procedure

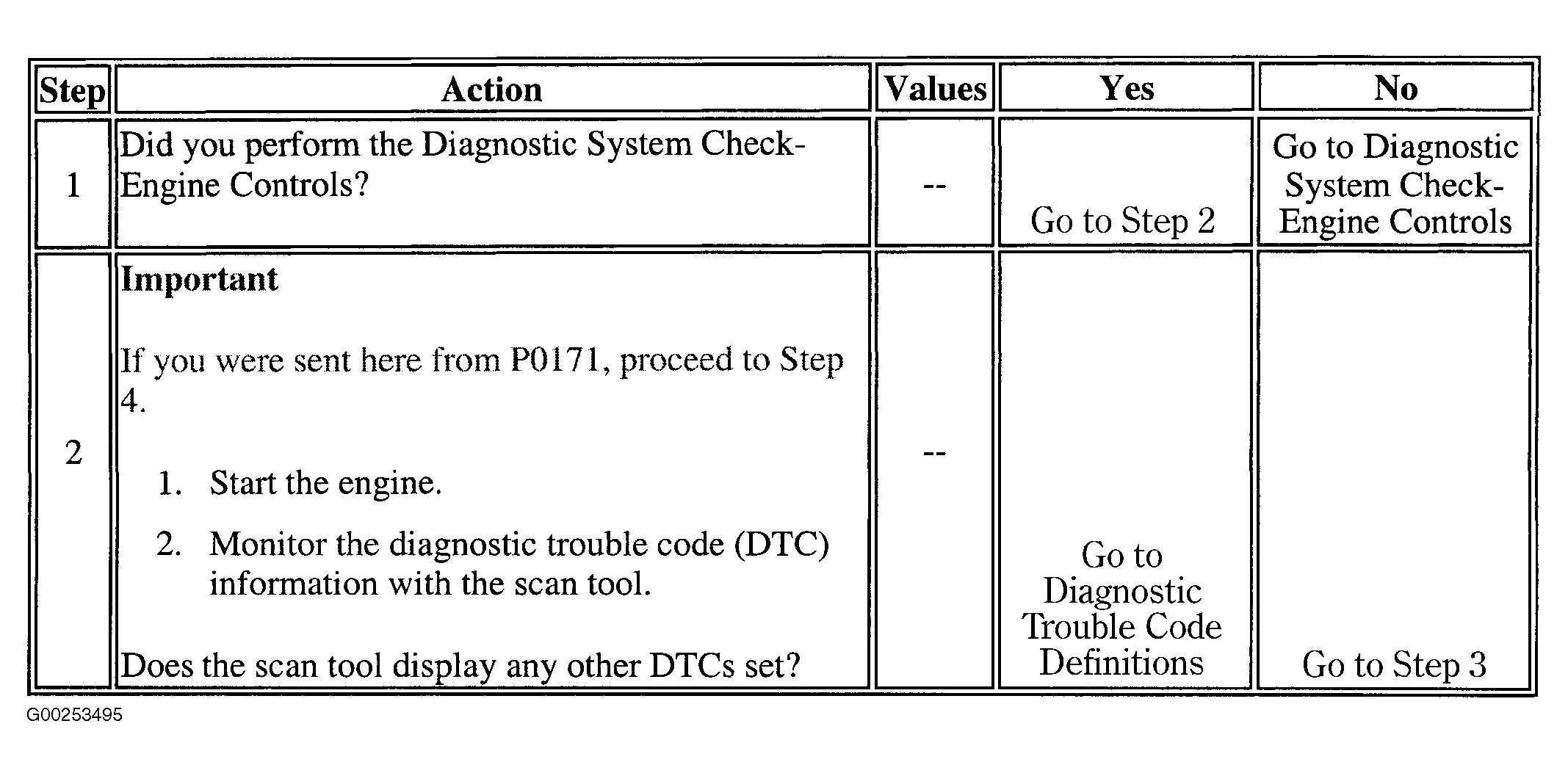

Fig 1: DTC P0101: MAF System Performance (Steps 1 & 2)
Courtesy of GENERAL MOTORS CORP.

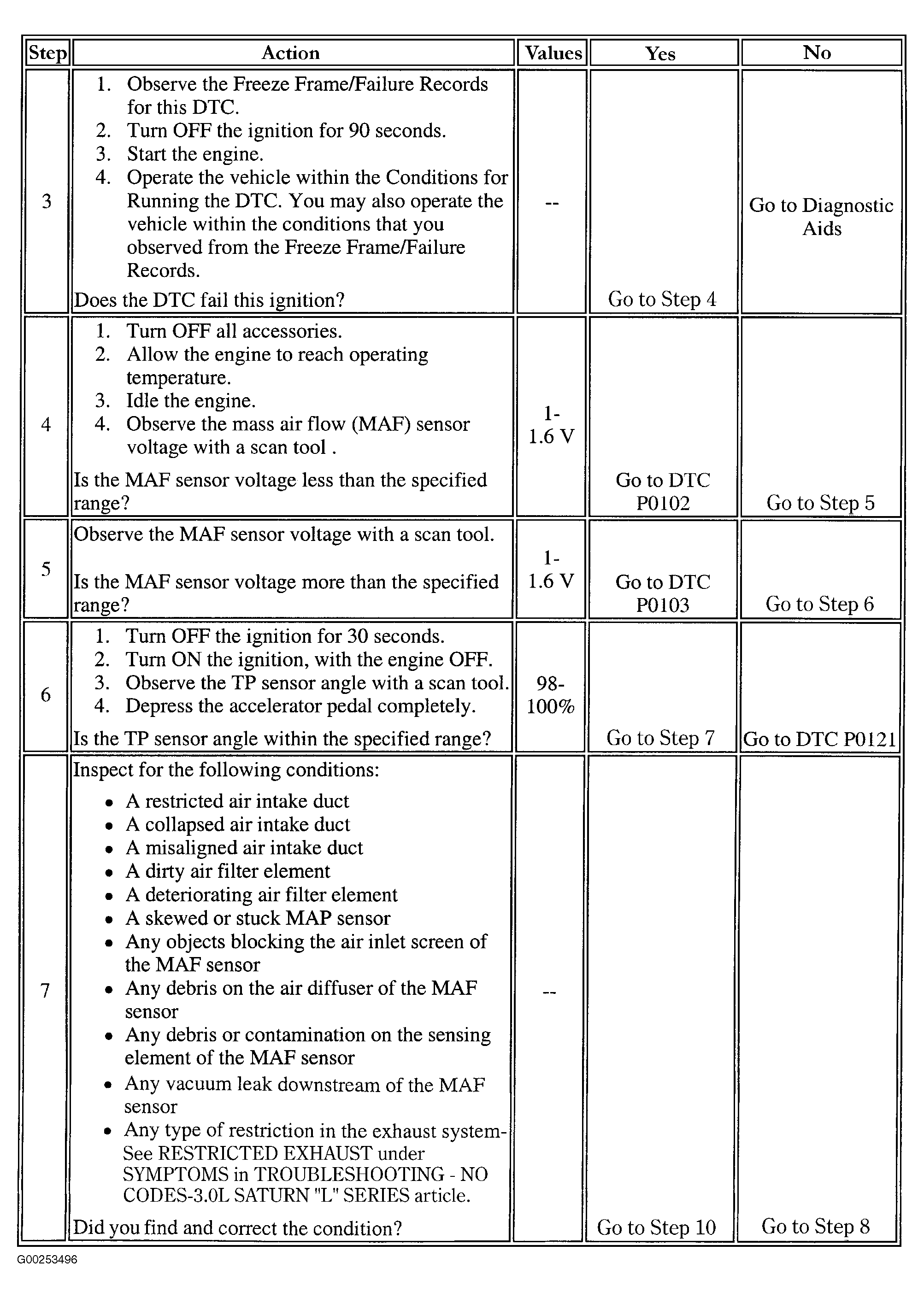

Fig 2: DTC P0101: MAF System Performance (Steps 3-7)
Courtesy of GENERAL MOTORS CORP.

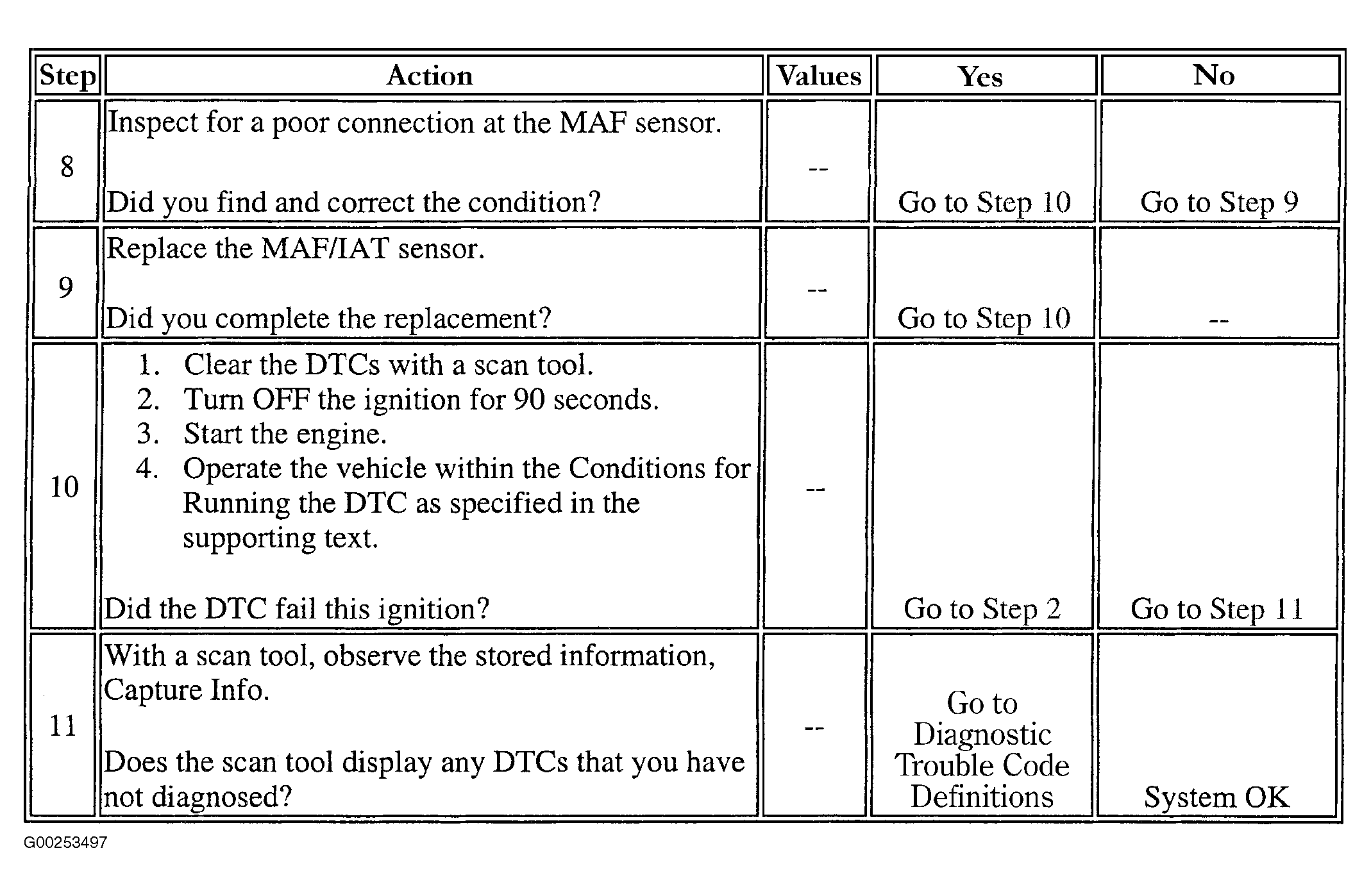

Fig 3: DTC P0101: MAF System Performance (Steps 8-11)
Courtesy of GENERAL MOTORS CORP.
