Diagnostic Procedure

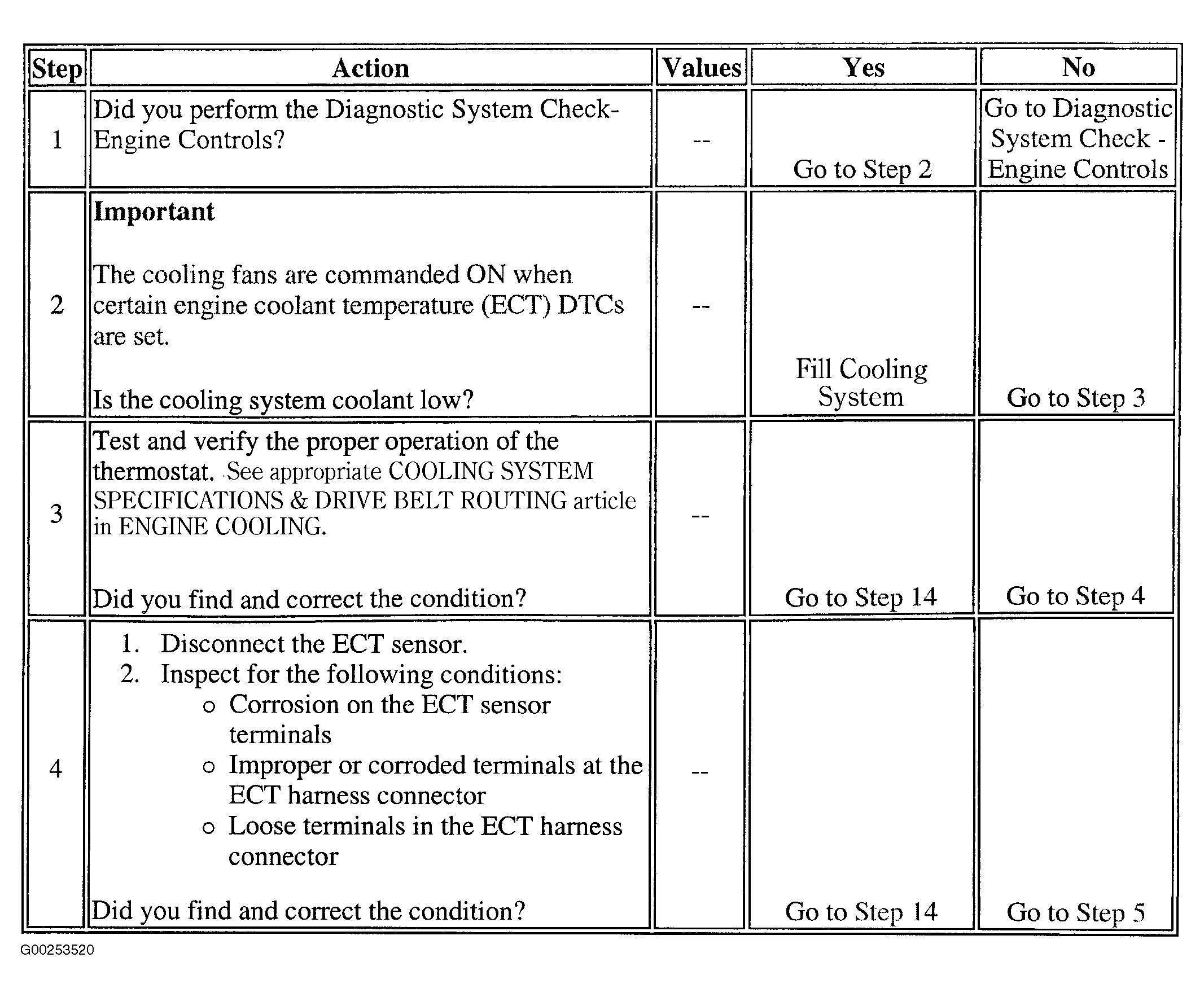

Fig 1: DTC P0115: ECT Sensor Circuit (Steps 1-4)
G00253520Courtesy of GENERAL MOTORS CORP.

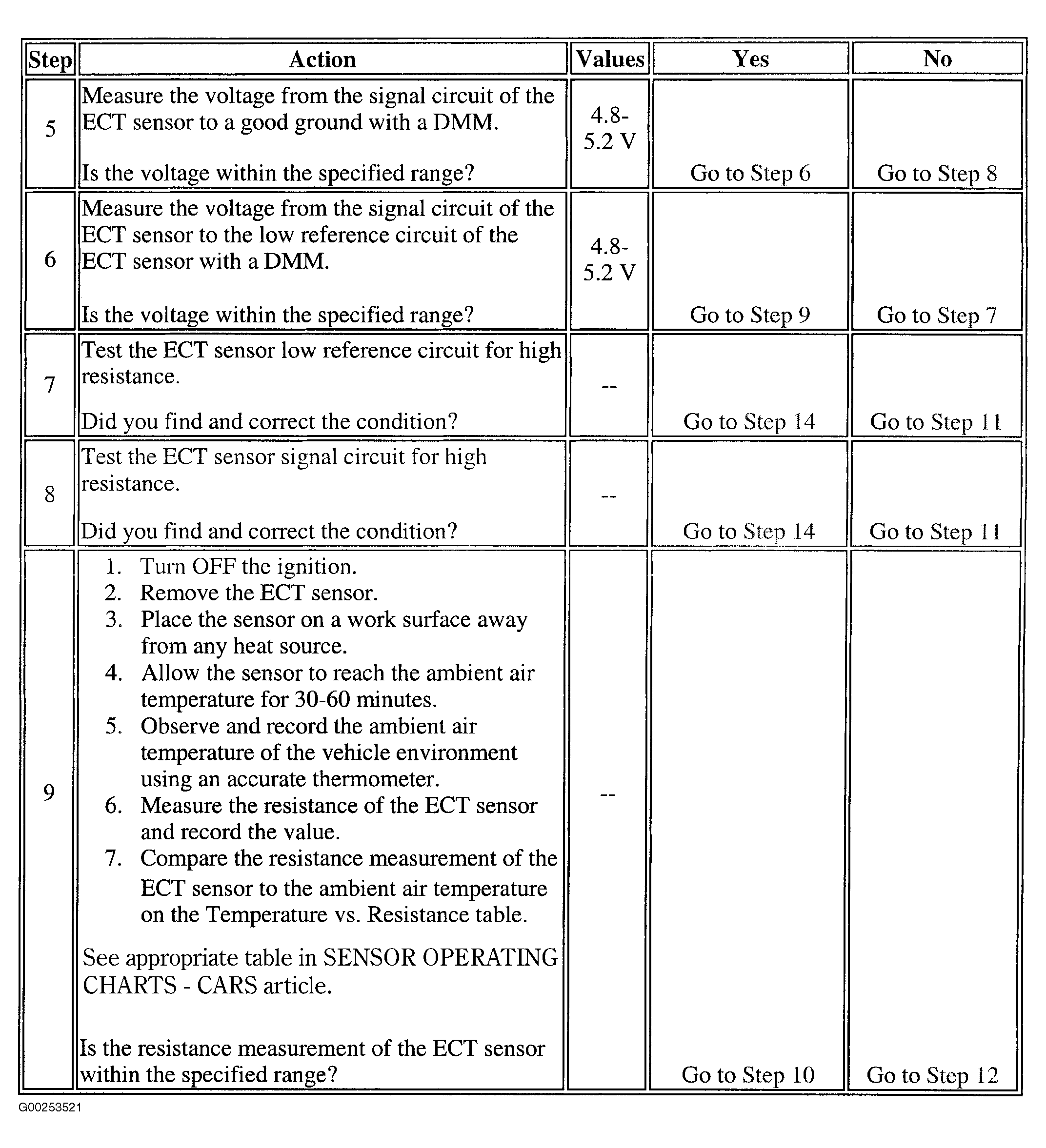

Fig 2: DTC P0115: ECT Sensor Circuit (Steps 5-9)
G00253521Courtesy of GENERAL MOTORS CORP.

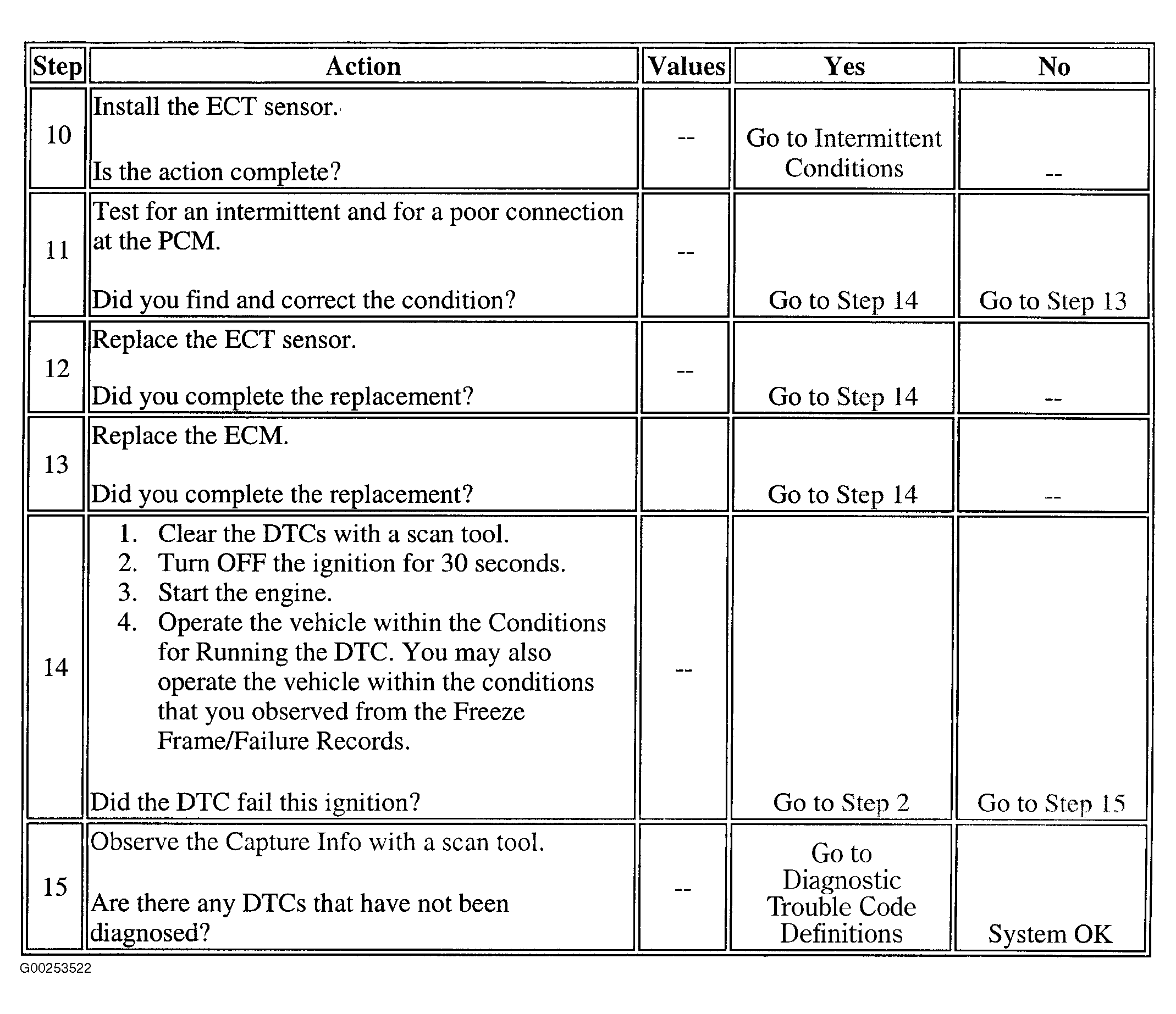

Fig 3: DTC P0115: ECT Sensor Circuit (Steps 10-15)
G00253522Courtesy of GENERAL MOTORS CORP.
