Diagnostic Procedure

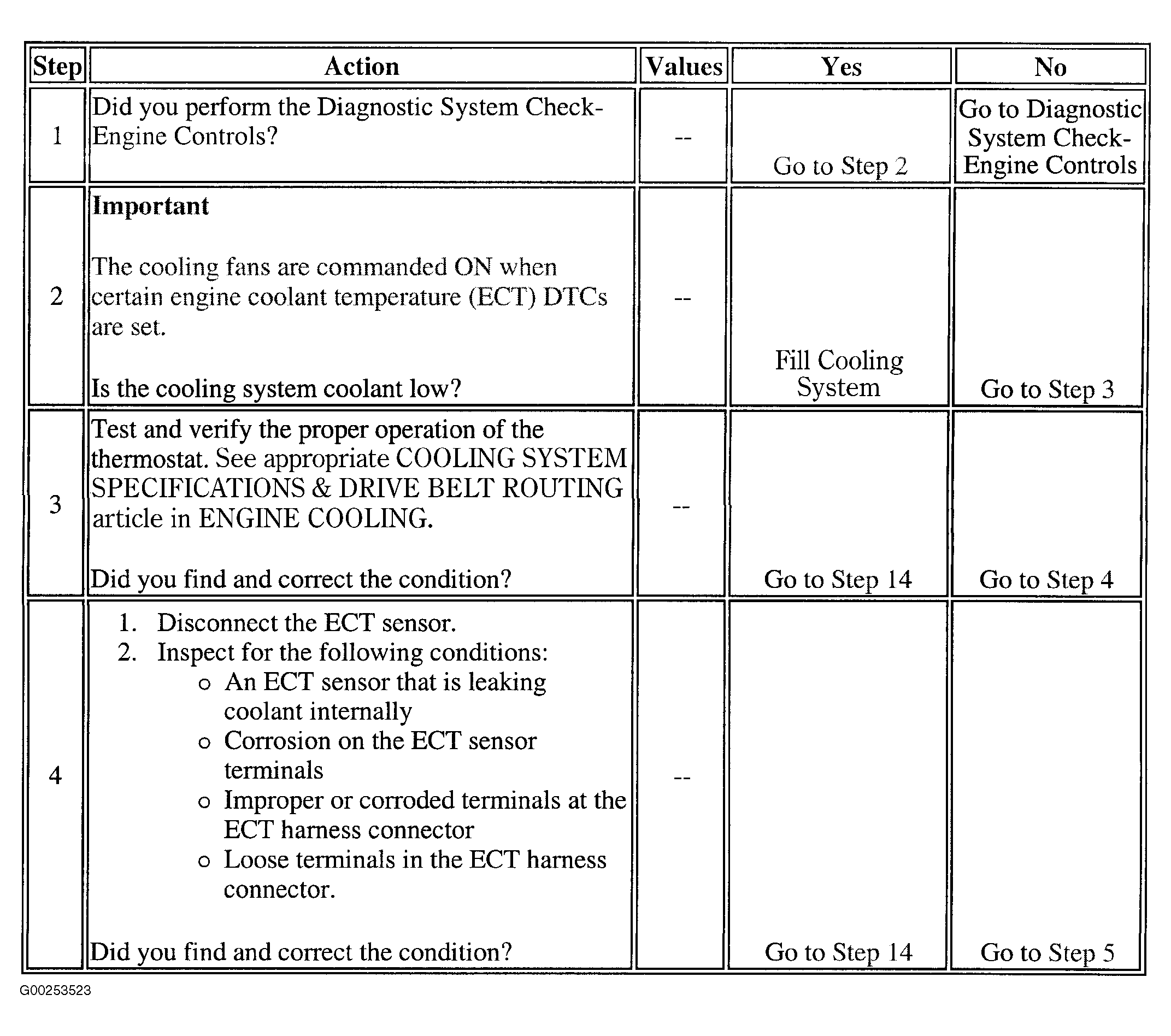

Fig 1: DTC P0116: ECT Sensor Circuit Performance (Steps 1-4)

Courtesy of GENERAL MOTORS CORP.

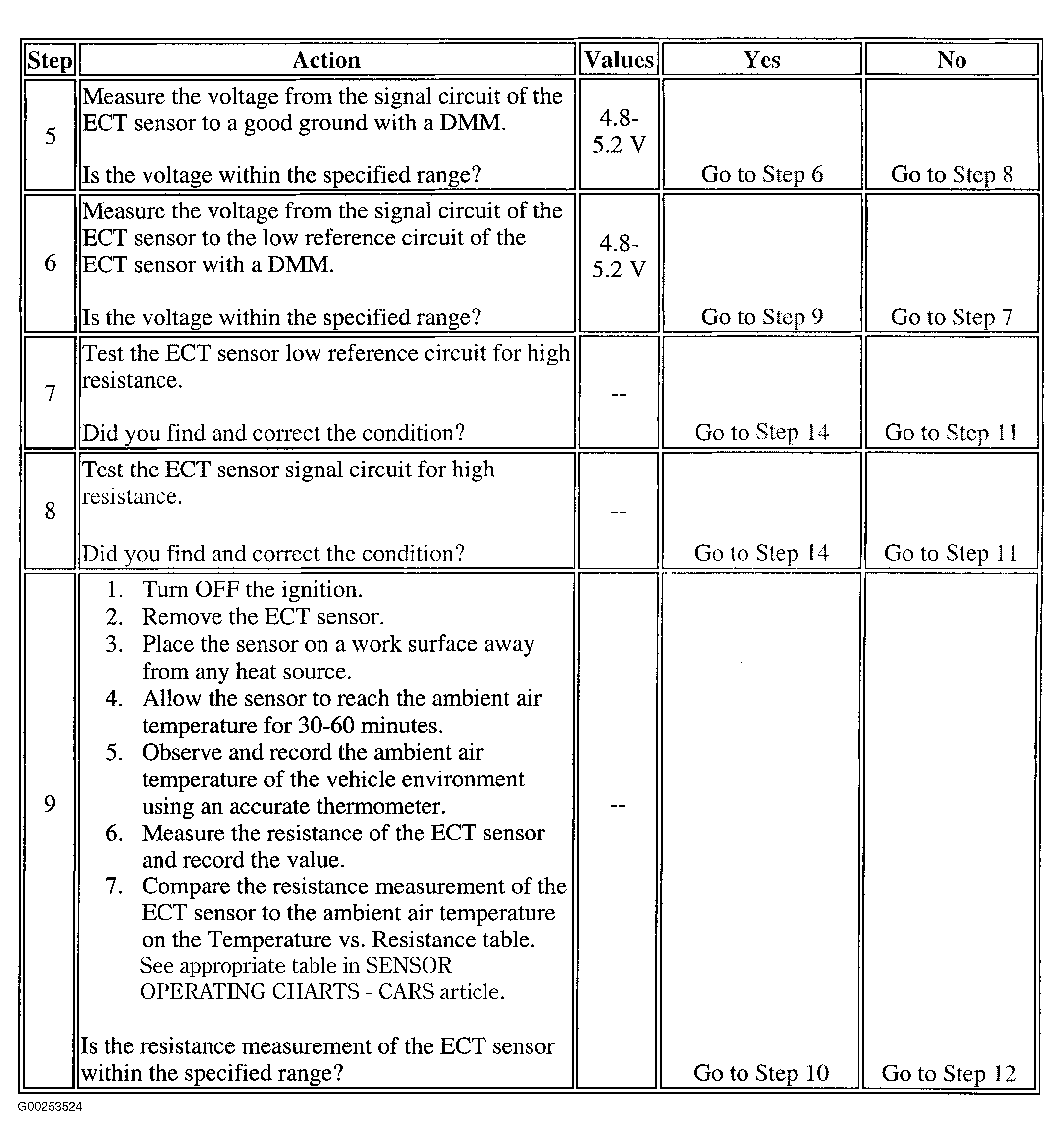

Fig 2: DTC P0116: ECT Sensor Circuit Performance (Steps 5-9)

Courtesy of GENERAL MOTORS CORP.

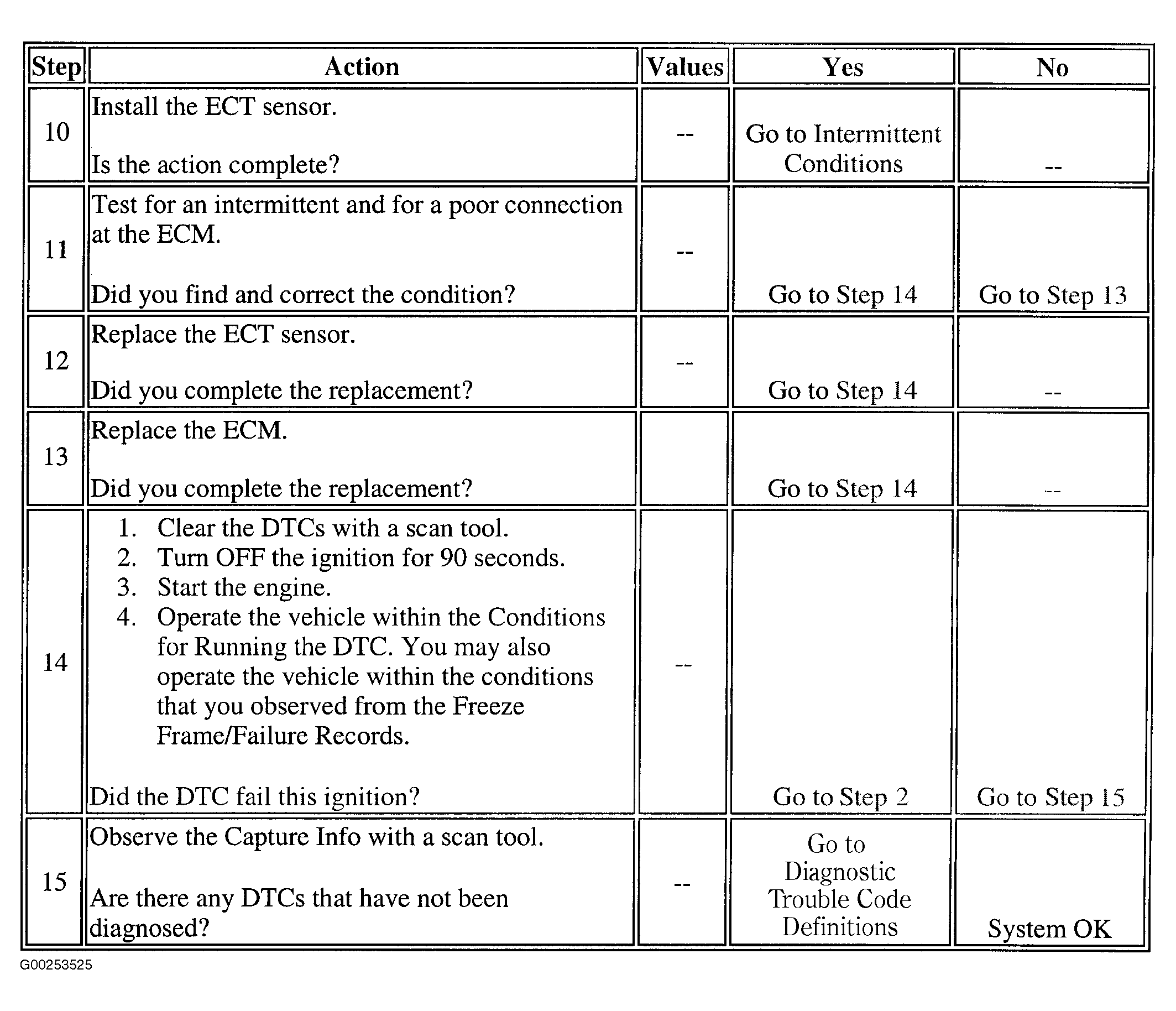

Fig 3: DTC P0116: ECT Sensor Circuit Performance (Steps 10-15)

Courtesy of GENERAL MOTORS CORP.
