Diagnostic Procedure

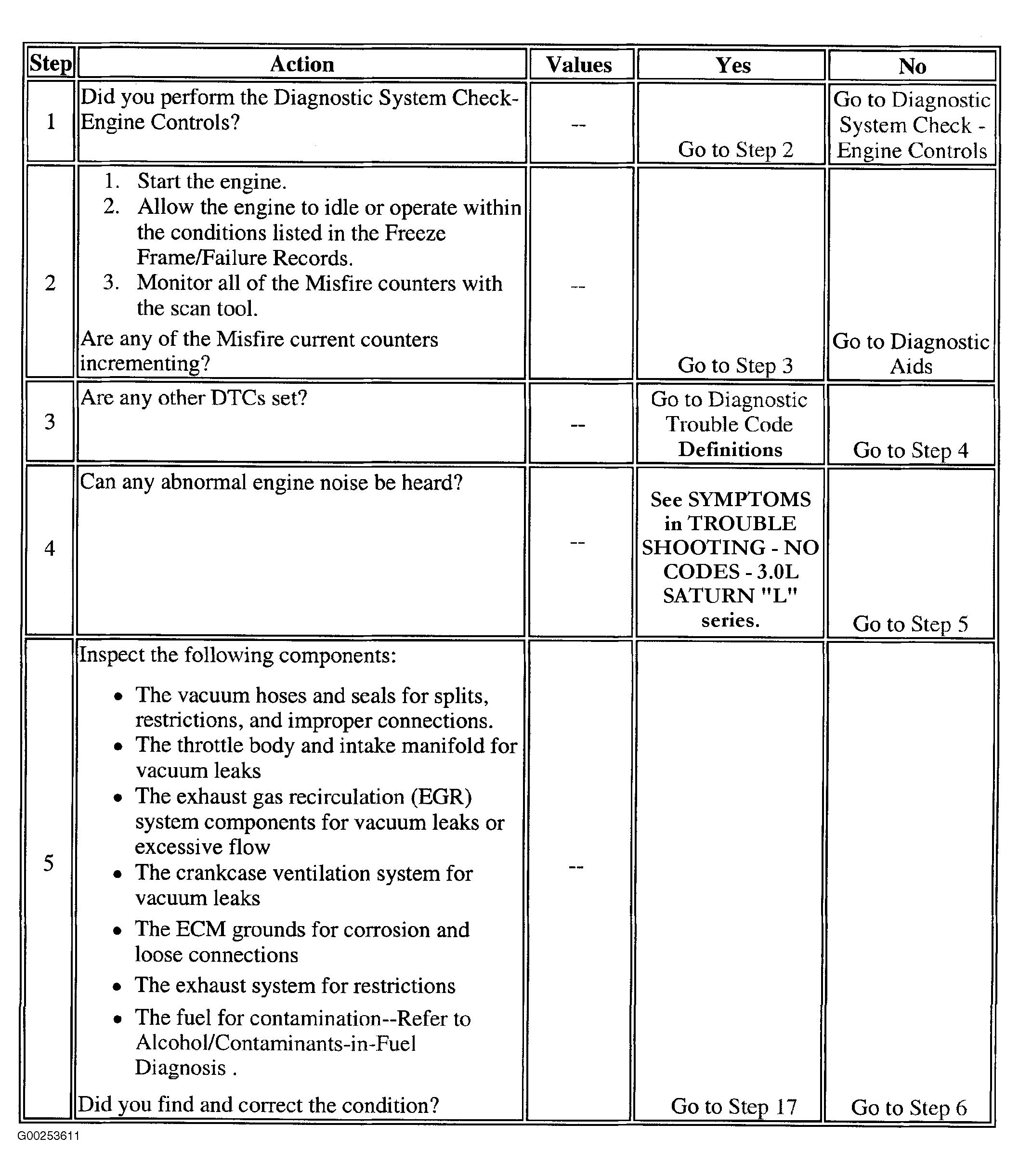

Fig 1: DTC P0300: Engine Misfire Detected (Steps 1-5)
G00253611Courtesy of GENERAL MOTORS CORP.

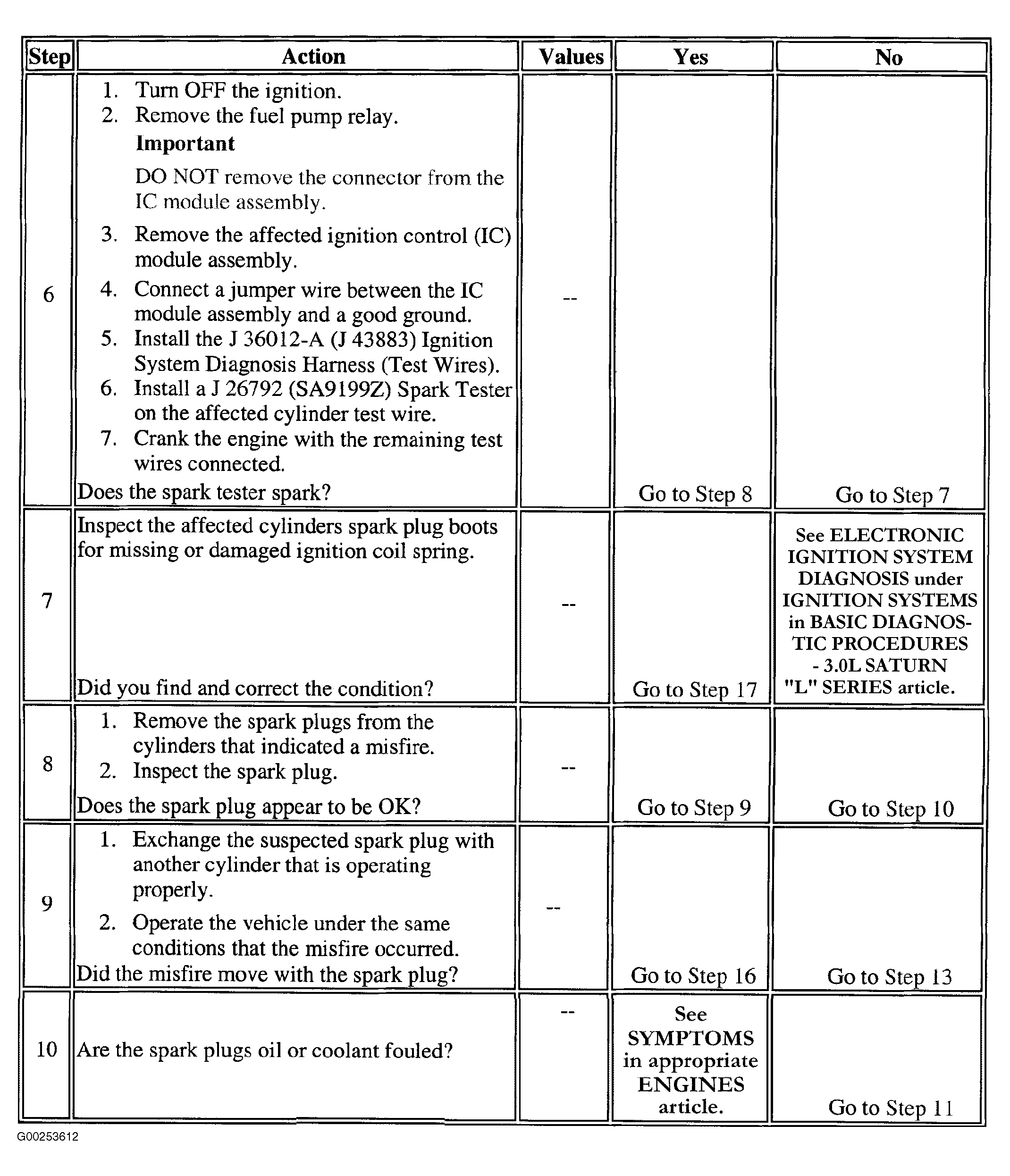

Fig 2: DTC P0300: Engine Misfire Detected (Steps 6-10)
G00253612Courtesy of GENERAL MOTORS CORP.

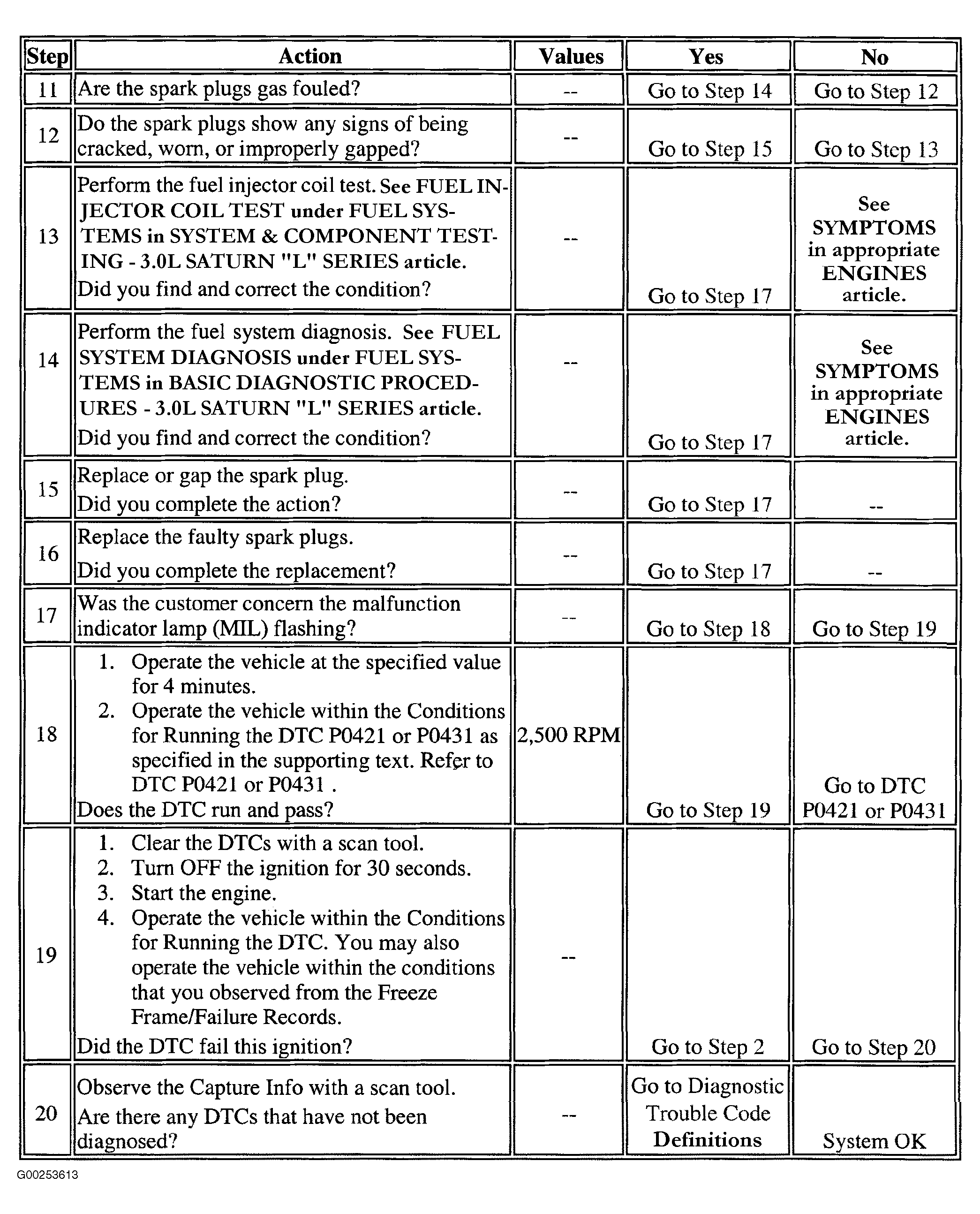

Fig 3: DTC P0300: Engine Misfire Detected (Steps 11-20)
G00253613Courtesy of GENERAL MOTORS CORP.
