Engine Controls - Self-Diagnostics
›
Diagnostic Tests
›
DTC P0446: EVAP Vent System Performance
›
Diagnostic Procedure
Diagnostic Procedure

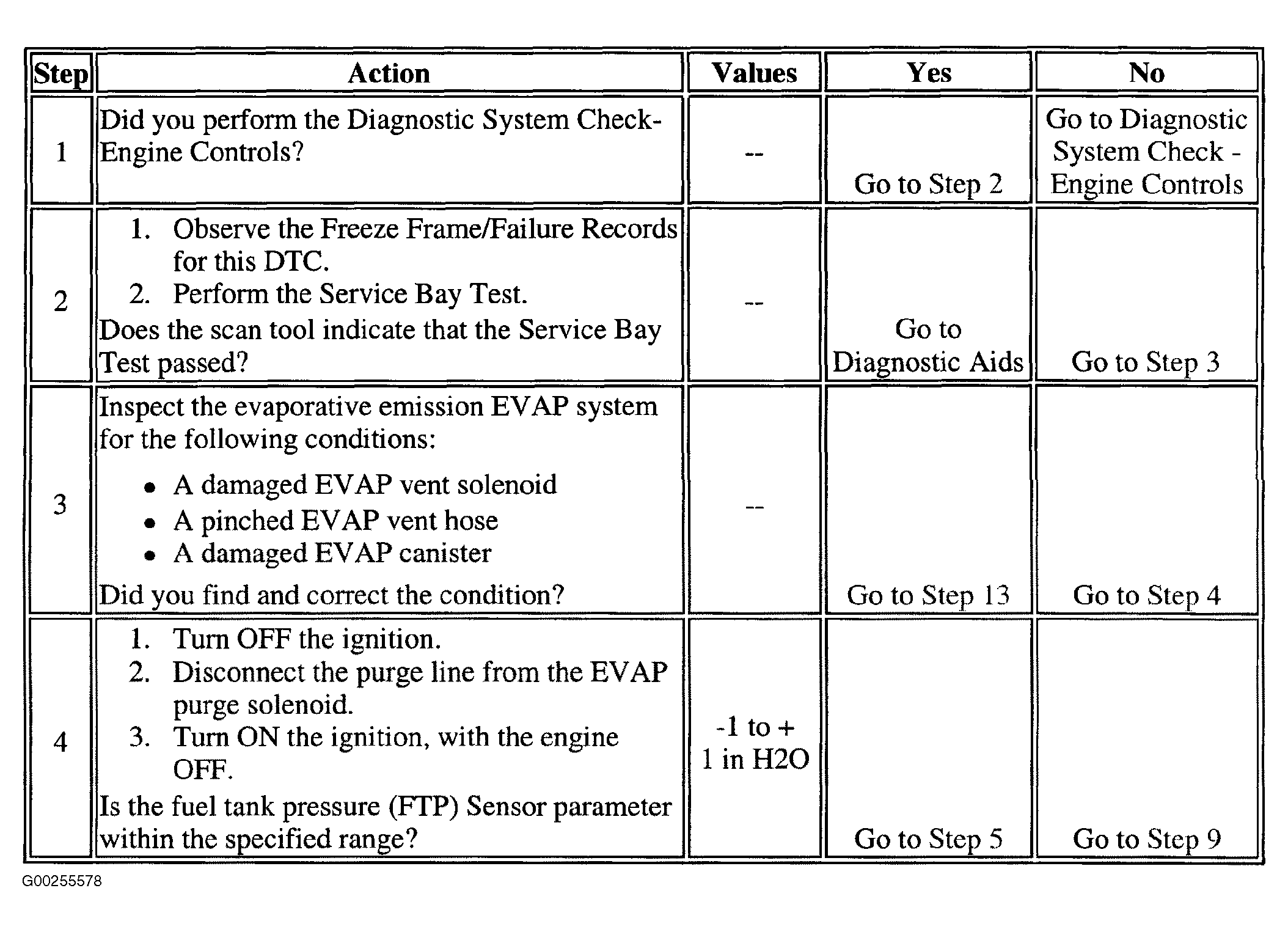

Fig 1: DTC P0446: EVAP Vent System Performance (Steps 1-4)
Courtesy of GENERAL MOTORS CORP.

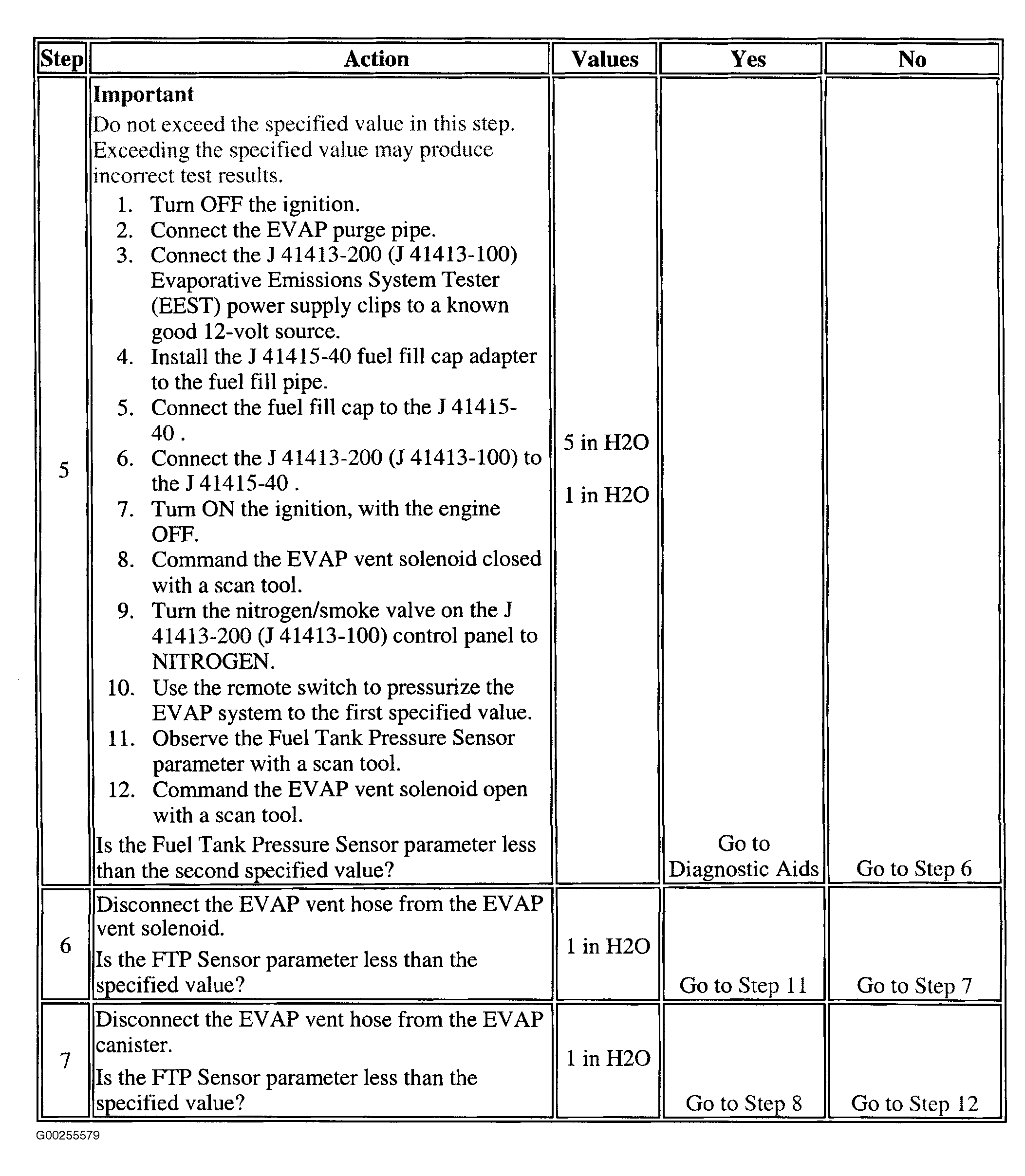

Fig 2: DTC P0446: EVAP Vent System Performance (Steps 5-7)
Courtesy of GENERAL MOTORS CORP.

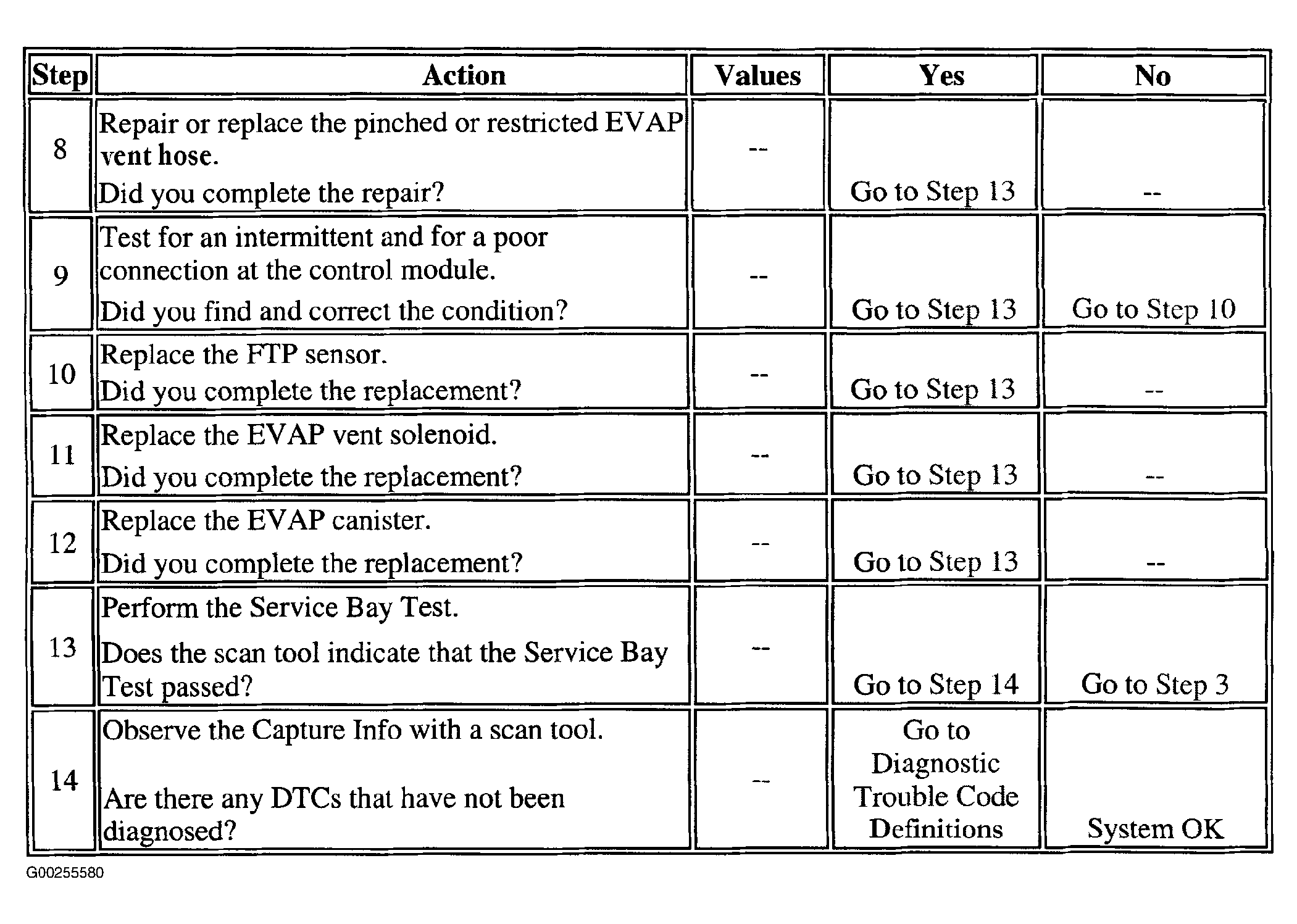

Fig 3: DTC P0446: EVAP Vent System Performance (Steps 8-14)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
