Diagnostic Procedure

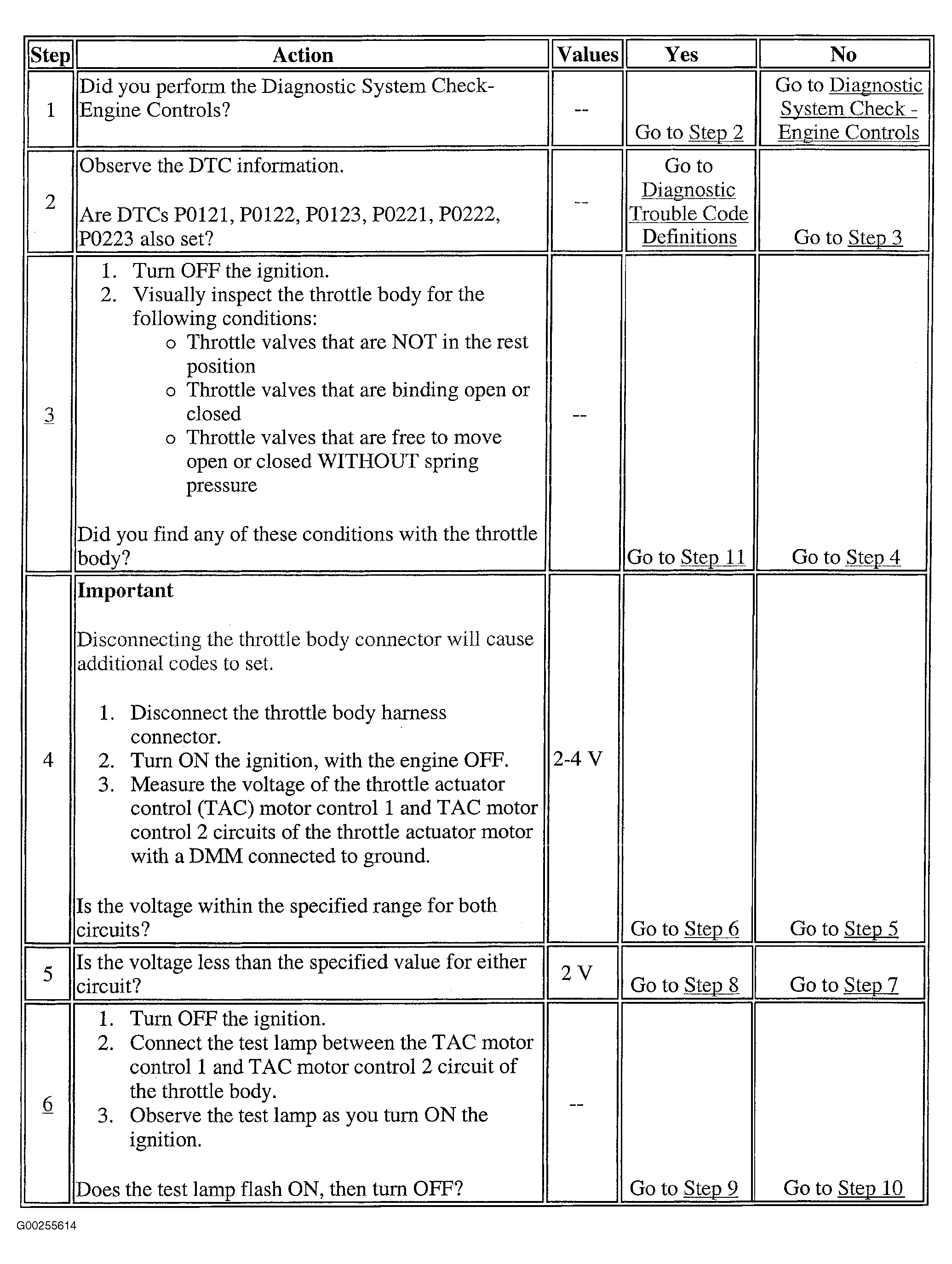

Fig 1: DTC P0638: Throttle Actuator Control Command Performance (Steps 1-6)
G00255614Courtesy of GENERAL MOTORS CORP.

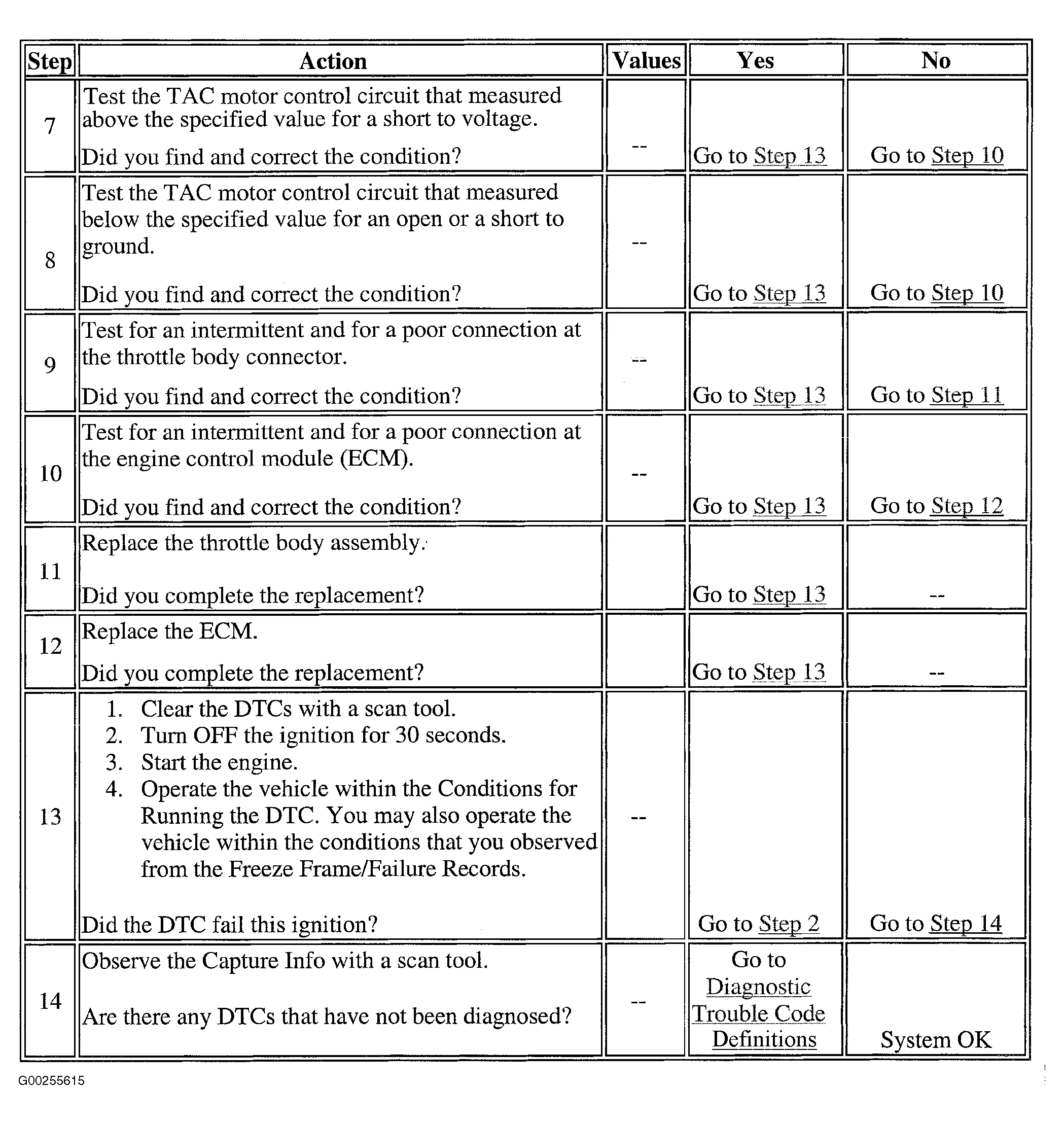

Fig 2: DTC P0638: Throttle Actuator Control Command Performance (Steps 7-14)
G00255615Courtesy of GENERAL MOTORS CORP.
