Diagnostic Procedure

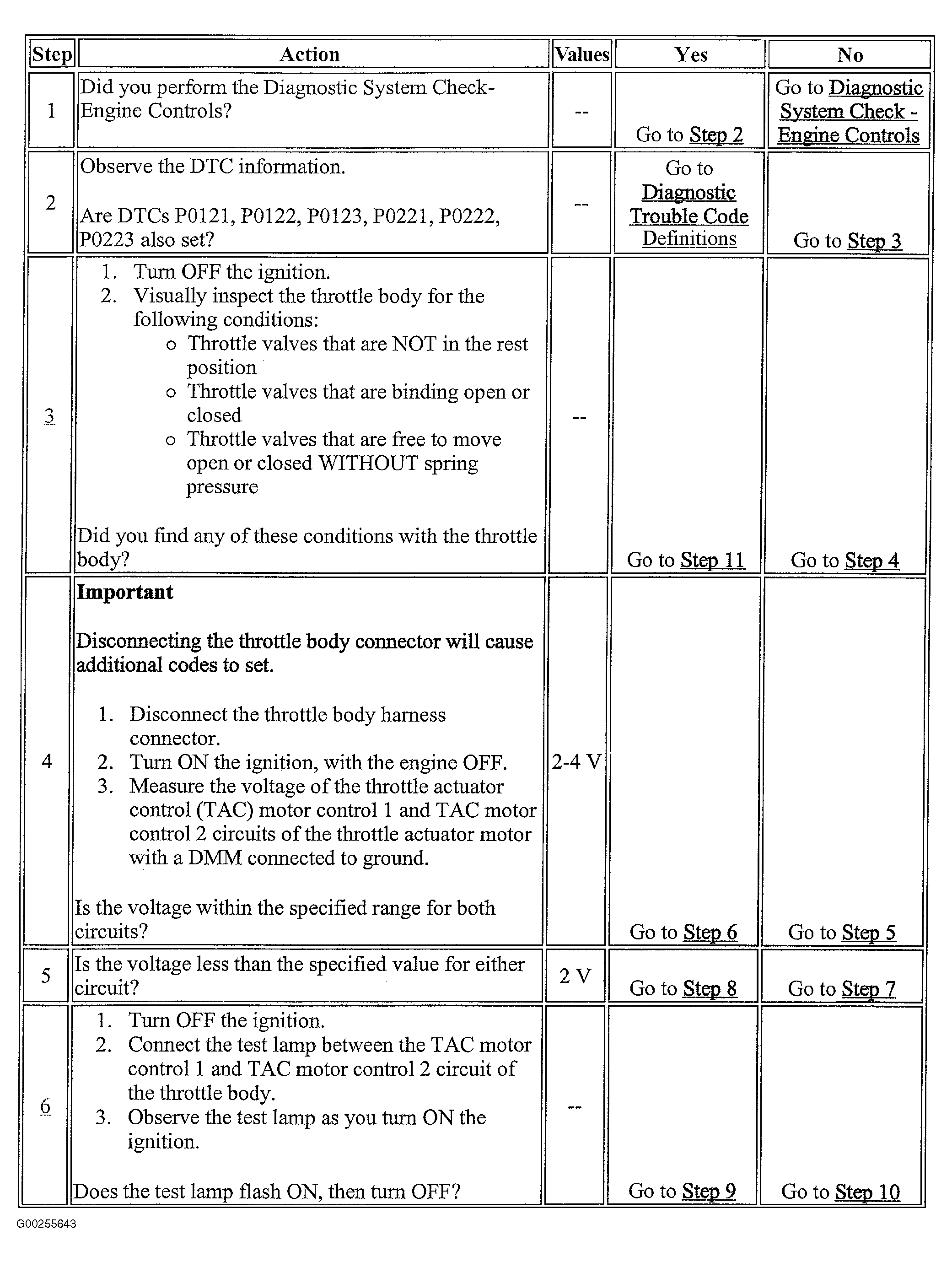

Fig 1: DTC P1510: Throttle Control System - In Limitation (Steps 1-6)
G00255643Courtesy of GENERAL MOTORS CORP.

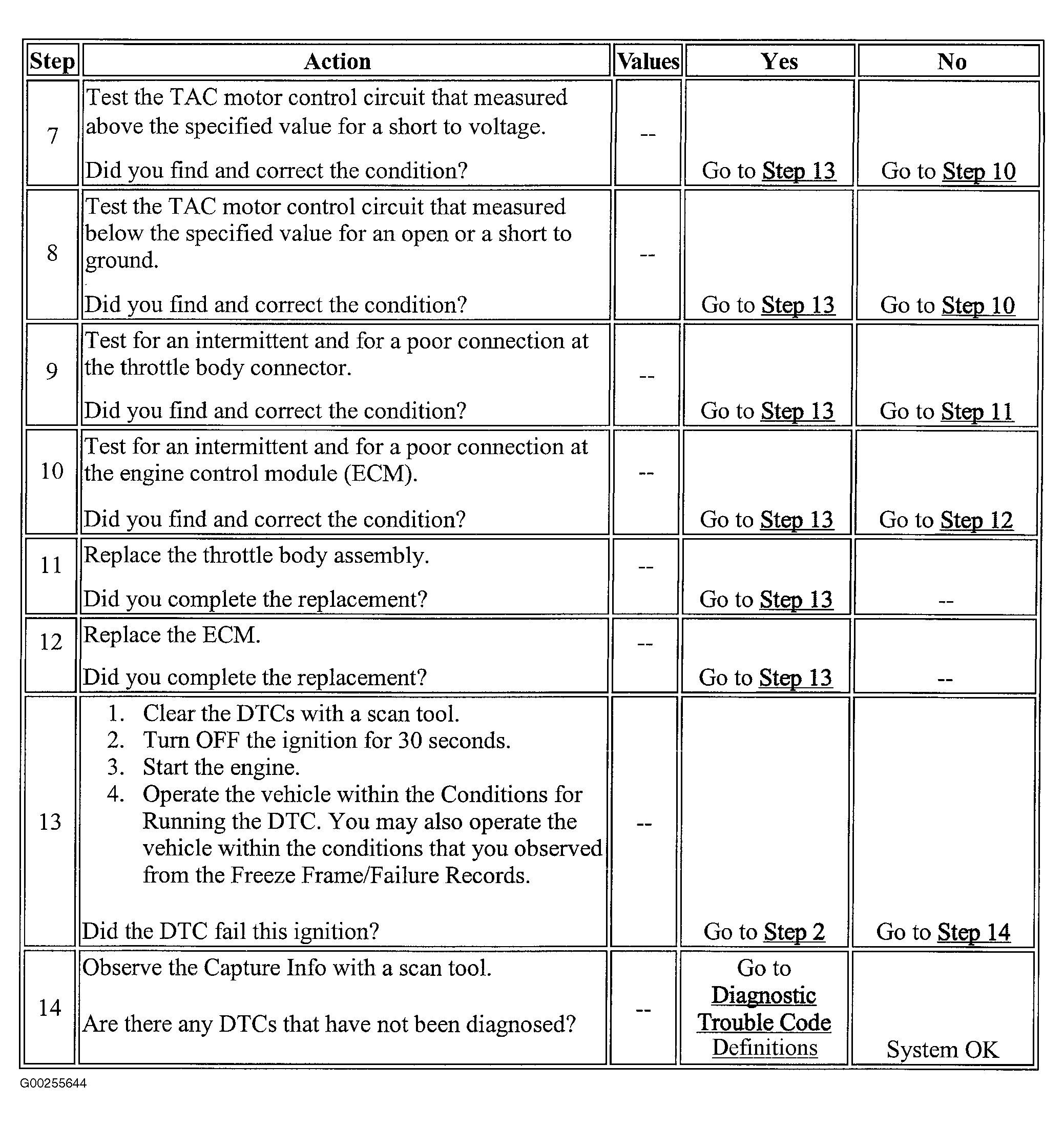

Fig 2: DTC P1510: Throttle Control System - In Limitation (Steps 7-14)
G00255644Courtesy of GENERAL MOTORS CORP.
