Diagnostic Procedure

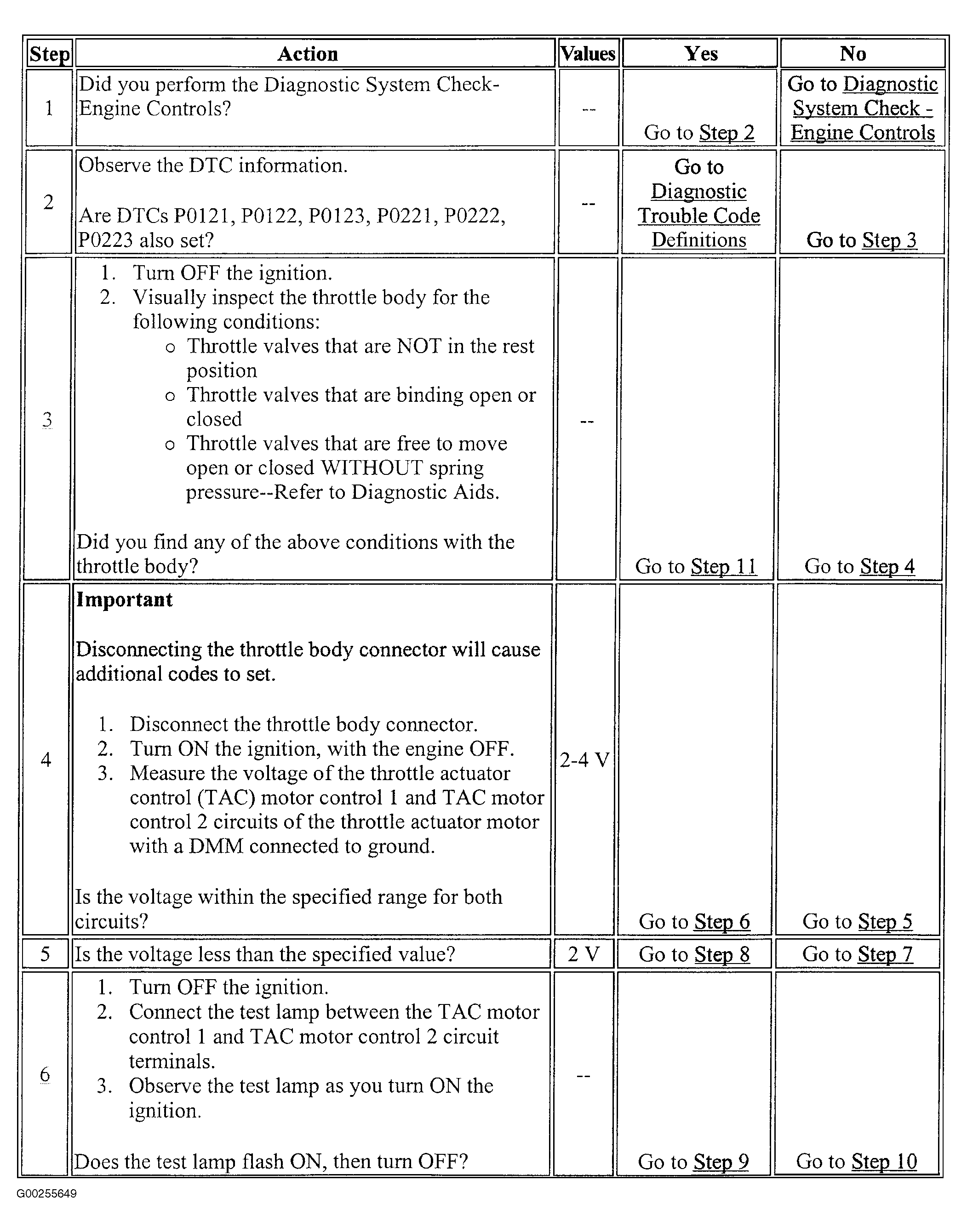

Fig 1: DTC P1519: Throttle Actuator Control (TAC) Module (Steps 1-6)
G00255649Courtesy of GENERAL MOTORS CORP.

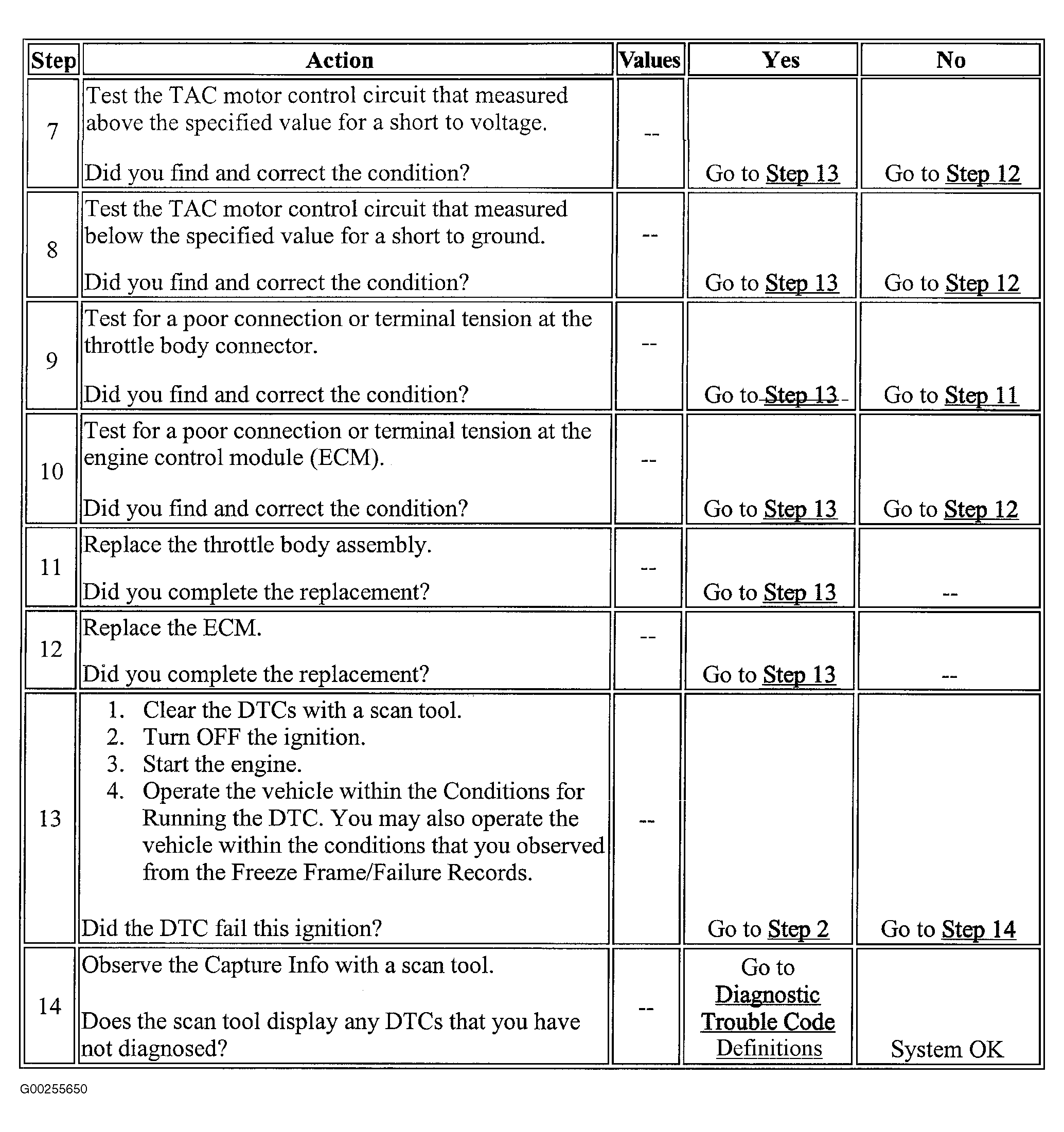

Fig 2: DTC P1519: Throttle Actuator Control (TAC) Module (Steps 7-14)
G00255650Courtesy of GENERAL MOTORS CORP.
