DTC P2008: Intake Manifold Runner Control (IMRC) Solenoid Control Circuit
›
Diagnostic Procedure
Diagnostic Procedure

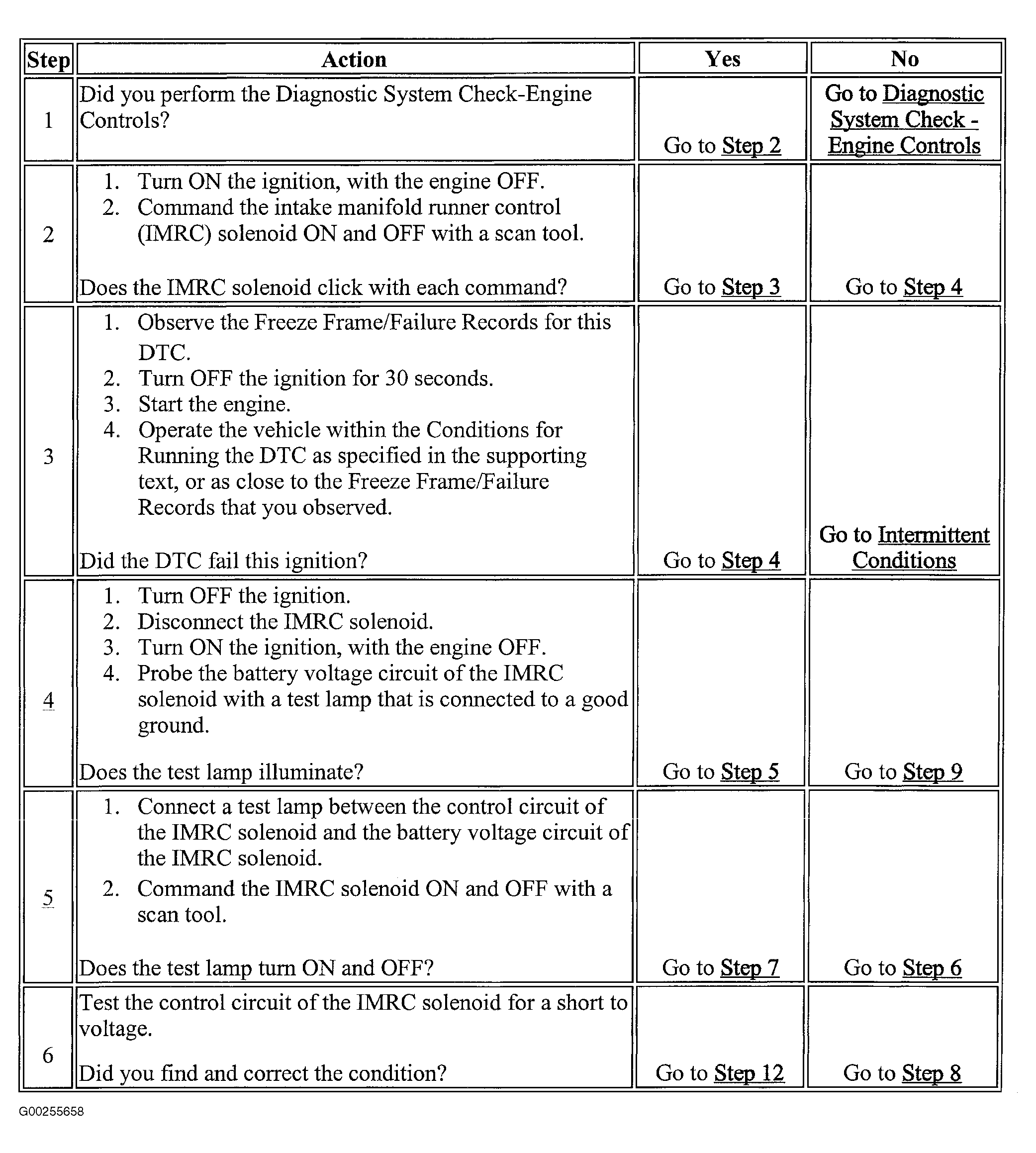

Fig 1: DTC P2008: Intake Manifold Runner Control (IMRC) Solenoid Control Circuit (Steps 1-6)
Courtesy of GENERAL MOTORS CORP.

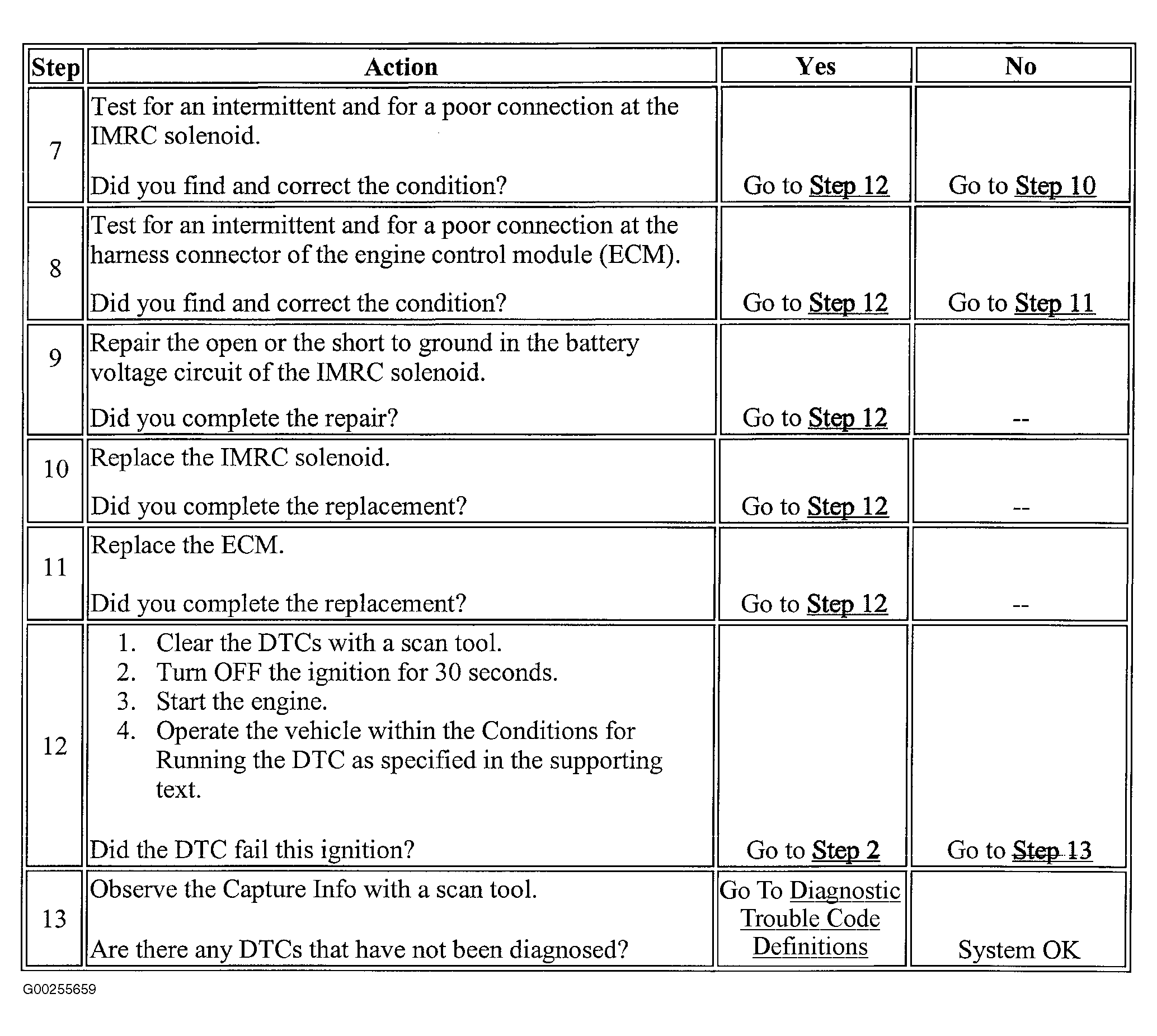

Fig 2: DTC P2008: Intake Manifold Runner Control (IMRC) Solenoid Control Circuit (Steps 7-13)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
