Diagnostic Procedure

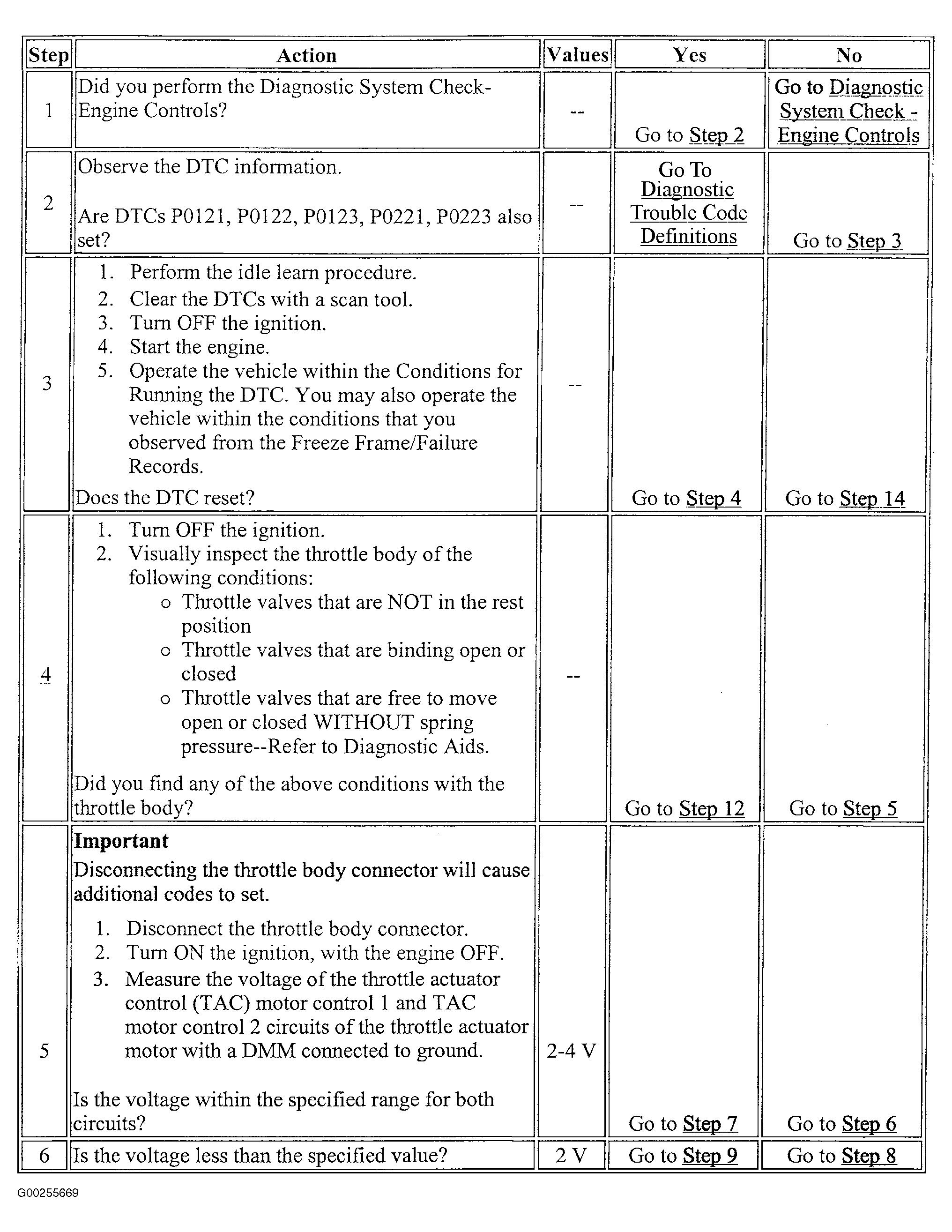

Fig 1: DTC P2107: Throttle Actuator Control (TAC) Module Internal Circuit (Steps 1-6)
G00255669Courtesy of GENERAL MOTORS CORP.

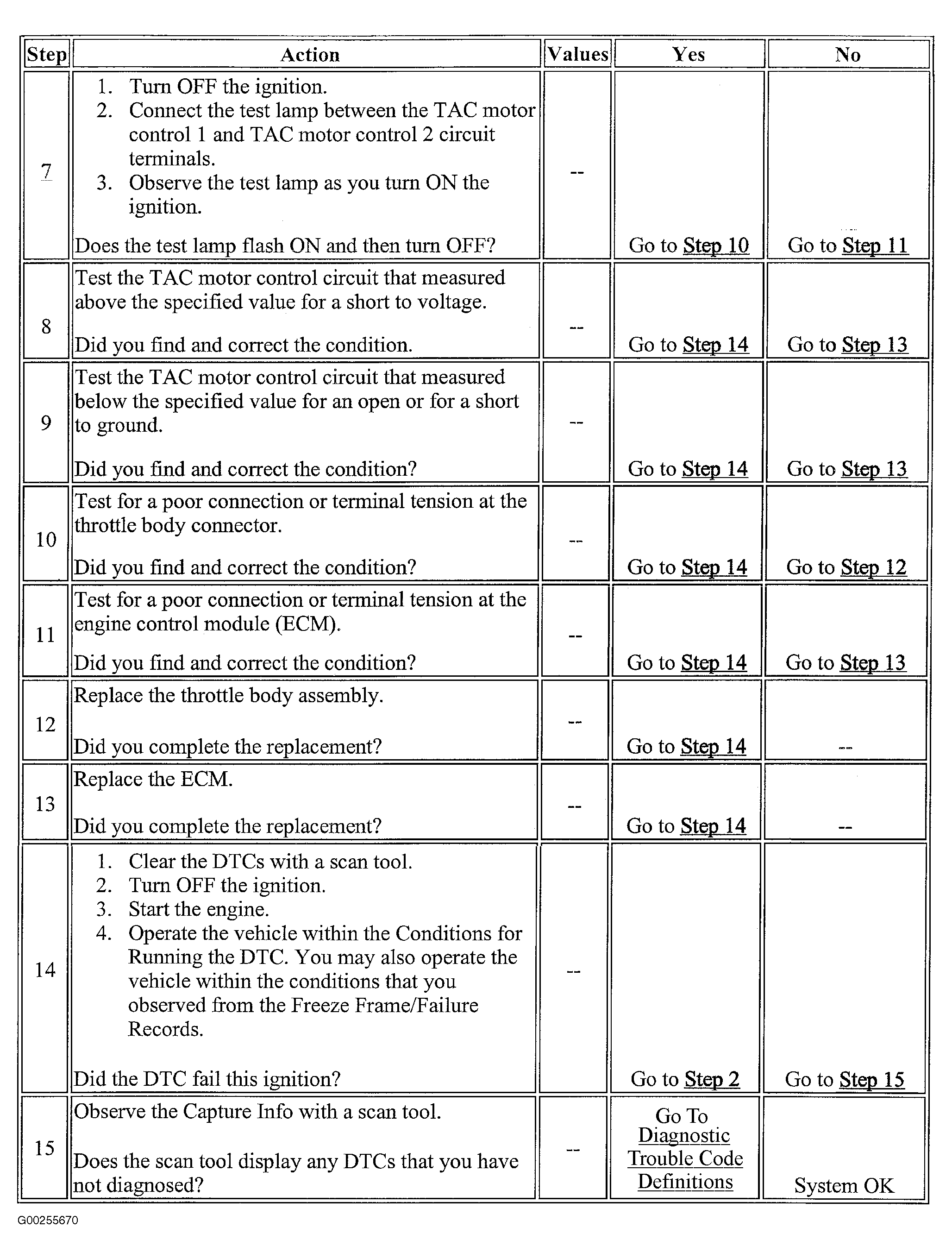

Fig 2: DTC P2107: Throttle Actuator Control (TAC) Module Internal Circuit (Steps 7-15)
G00255670Courtesy of GENERAL MOTORS CORP.
