Power and Grounding Component Views

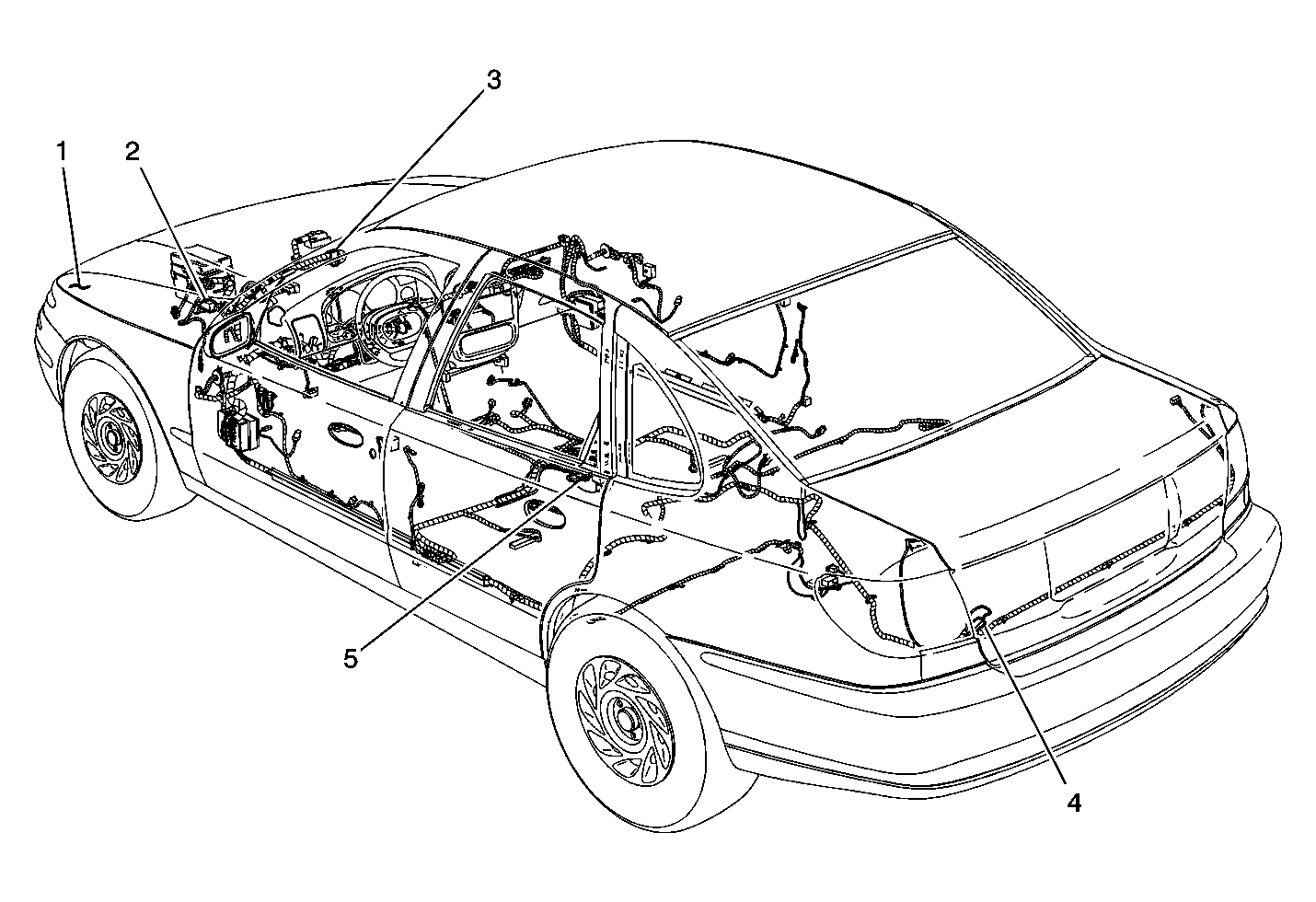

Fig 1: Splice Pack Ground Locations Component View
GM1265305Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Splice Pack SP103, G103
2 Splice Pack SP191, G191
3 Splice Pack SP120, G120
4 Splice Pack SP401, G401
5 Splice Pack SP300, G300
Fig 2: LF of the Engine Compartment Component View
GM1335252Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Daytime Running Lamp (DRL) Resistor
2 G103

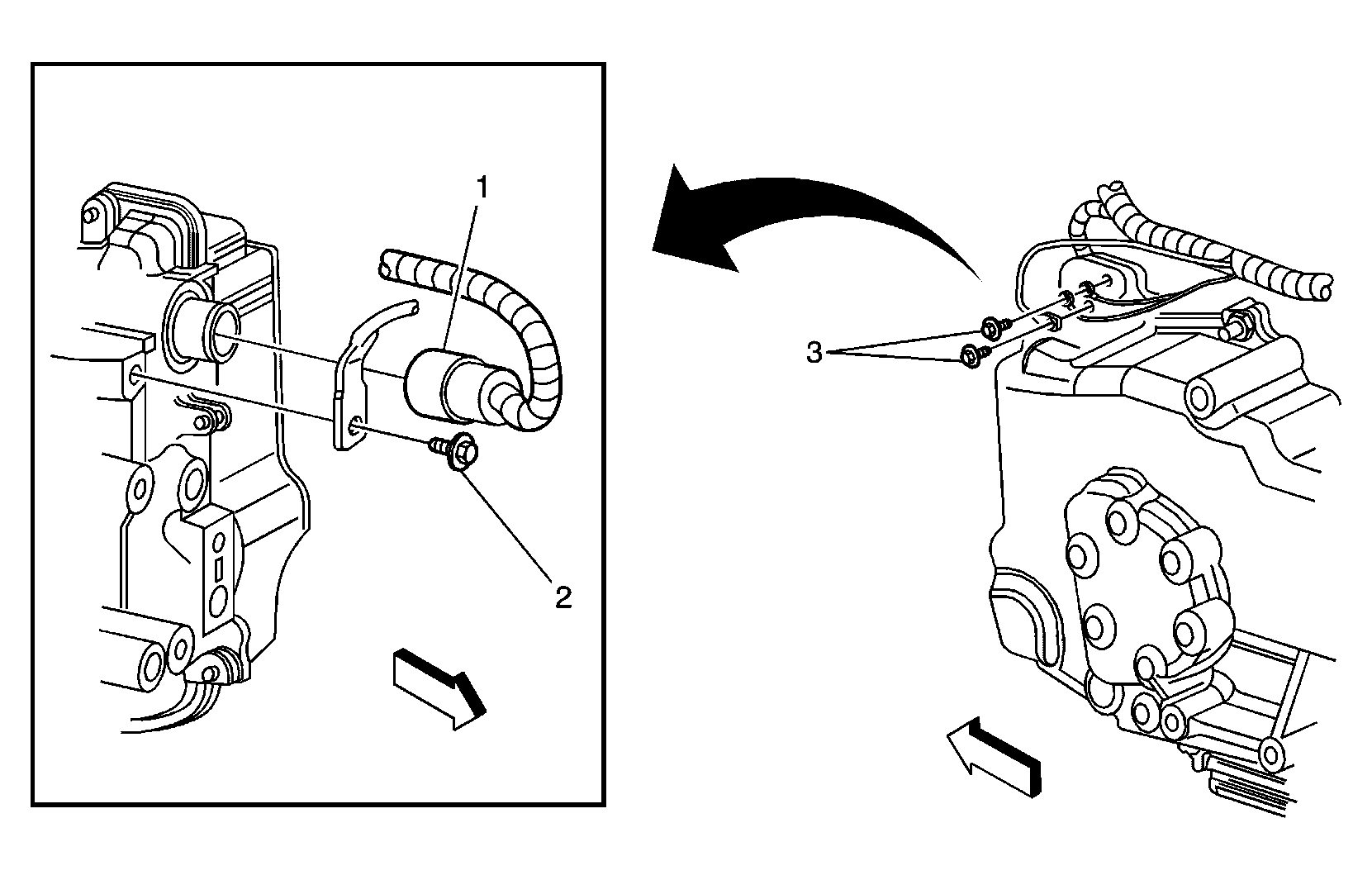

Fig 3: Front of the Transmission Component View
GM1335105Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C100 (3.0L)
2 G113
3 G110 (3.0L)
Fig 4: Lower Right Side of the Engine Component View (2.2L)
GM1335216Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G118
2 A/C Compressor Clutch Coil

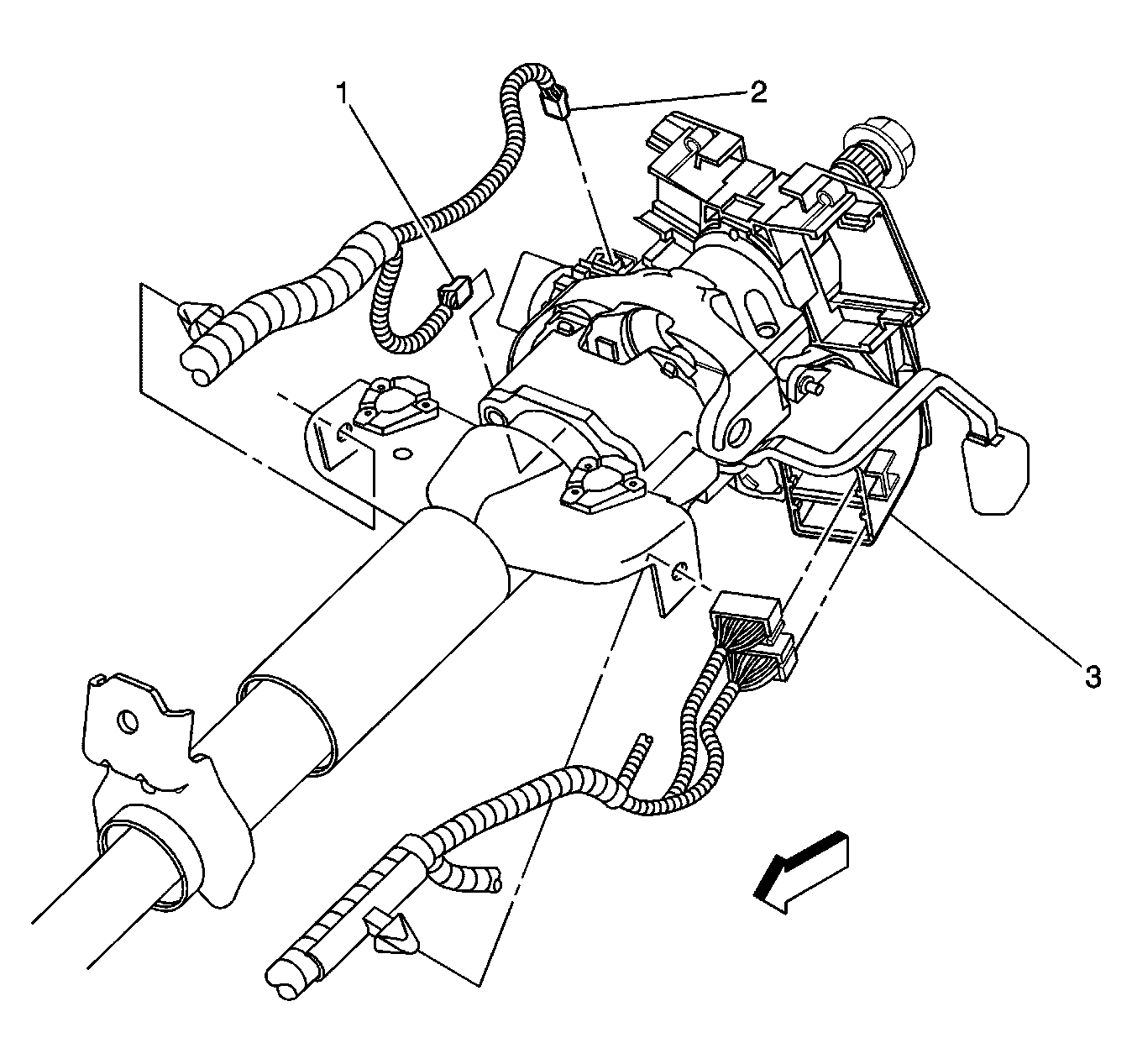

Fig 5: Steering Column Component View
GM1335275Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Lock Cylinder Solenoid
2 Passlock Sensor
3 Ignition Switch
Fig 6: Door Component View
GM1253890Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 SP103
2 Fuse Block - Underhood
3 SP104
4 SP105
5 Fuse Block - I/P - Right
6 Window Motor - Front Passenger
7 Window Switch - RR
8 SP401
9 SP300
10 Window Switch - Front Passenger
11 Window Switch - Driver
12 Cigar Lighter
13 Window Switch - LR
14 Data Link Communication (DLC) Connector
15 Dimmer/Rear Compartment Lid Release Switch
16 Window Motor - Driver
17 Fuse Block - I/P - Left
18 SP191
Fig 7: I/P Harness Component View
GM1253895Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Radio
2 Right Heated Seat/Traction Switch
3 Hazard Switch
4 Left Heated Seat/Fog Lamp Switch
5 Passlock Sensor
6 Ambient Light Sensor
7 Ignition Lock Cylinder Solenoid
8 Windshield Wiper/Washer Switch
9 Ignition Switch C1
10 Headlamp/Turn Signal Switch
11 Ignition Switch C2
12 Inflatable Restraint Steering Wheel Module Coil C4
13 Instrument Panel Cluster (IPC)
14 Dimmer/Rear Compartment Lid Release Switch
15 Wheel Speed Conditioner Module
16 Cruise/ Brake Switch
17 Fuse Block - I/P - Left
18 C207
19 Data Link Connector (DLC)
20 C215
21 Accelerator Pedal Position (APP) Sensor
22 Cruise Control Module
23 C215
24 C205
25 I/P Compartment Lamp
26 Body Control Module (BCM)
27 C204 (w/o UE1)
28 C204 (w/ UE1)
29 Fuse Block - I/P - Right
30 C200 Body Harness Side
31 C200 Headliner Harness Side
32 Inflatable Restraint I/P Module
Fig 8: Forward Lamp Harness Component View
GM1261562Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cooling Fan Control Module
2 Fuse Block - Underhood
3 SP103
4 Windshield Washer Fluid Level Switch Connector
5 Windshield Washer Fluid Pump Connector
6 G105
7 C103
8 Left Headlamp Harness
9 Ambient Air Temperature Sensor Connector
10 Right Headlamp Harness
11 Horn Connector
12 C102
Fig 9: Center Console Component View
GM1261567Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Console Harness
2 C301
3 Auxiliary Power Outlet Connector
4 Park Brake Switch Connector
5 Inflatable Restraint Sensing and Diagnostic Module (SDM)
6 Automatic Transmission Shift Lock Actuator Connector
7 Electronic PRNDL Module Connector
8 Cigar Lighter Connector
Fig 10: Center of Passenger Compartment Floor Component View
GM1261623Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G303
2 Window Switch - Driver Connector
3 Window Switch - Front Passenger Connector
4 Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
5 SP300
6 C305 (C306 Similar)

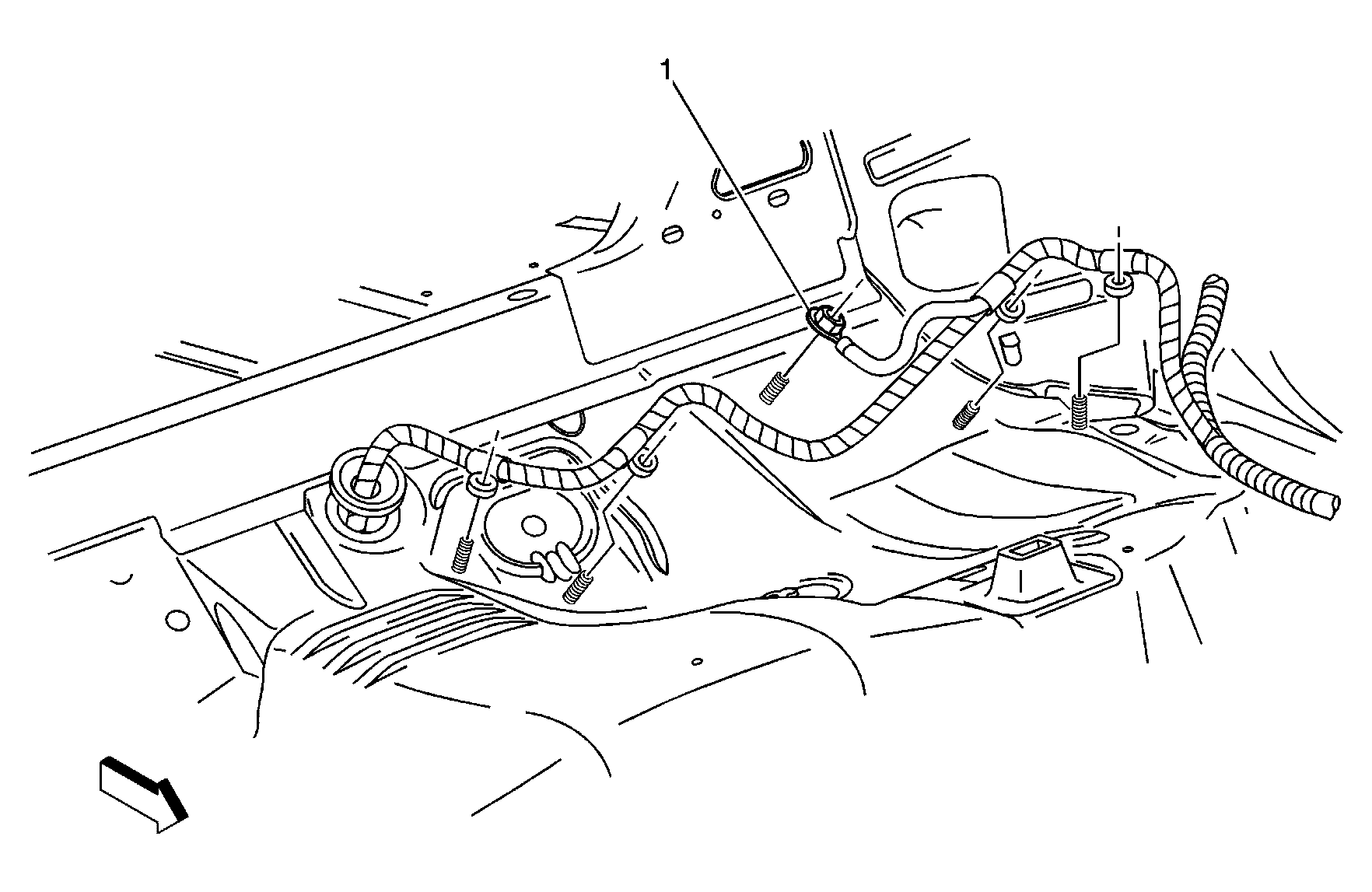

Fig 11: Rear of the Passenger Compartment Component View (Sedan)
GM1335184Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G400

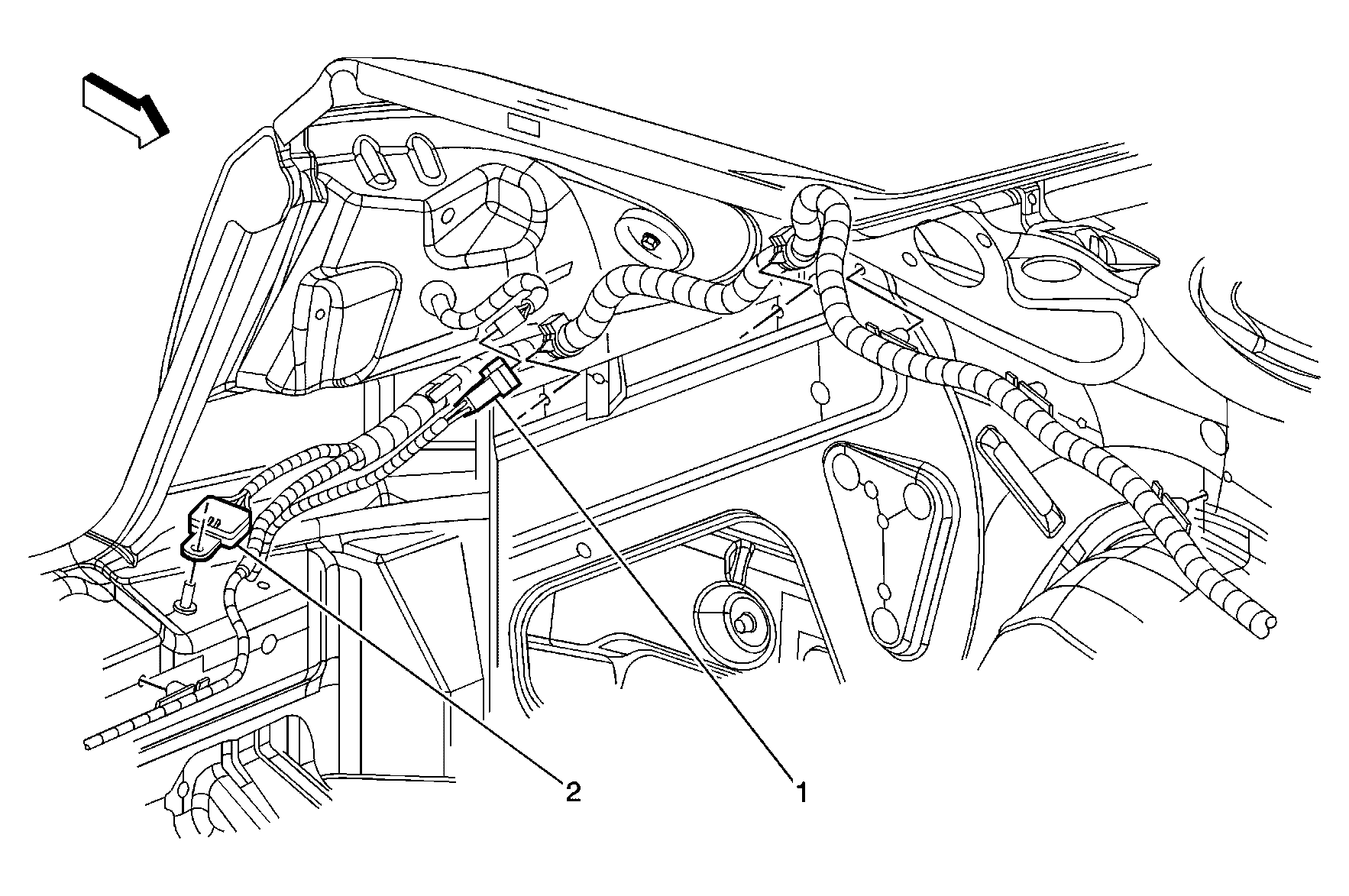

Fig 12: LR Rear Compartment Component View (Sedan)
GM1335140Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C498
2 SP401

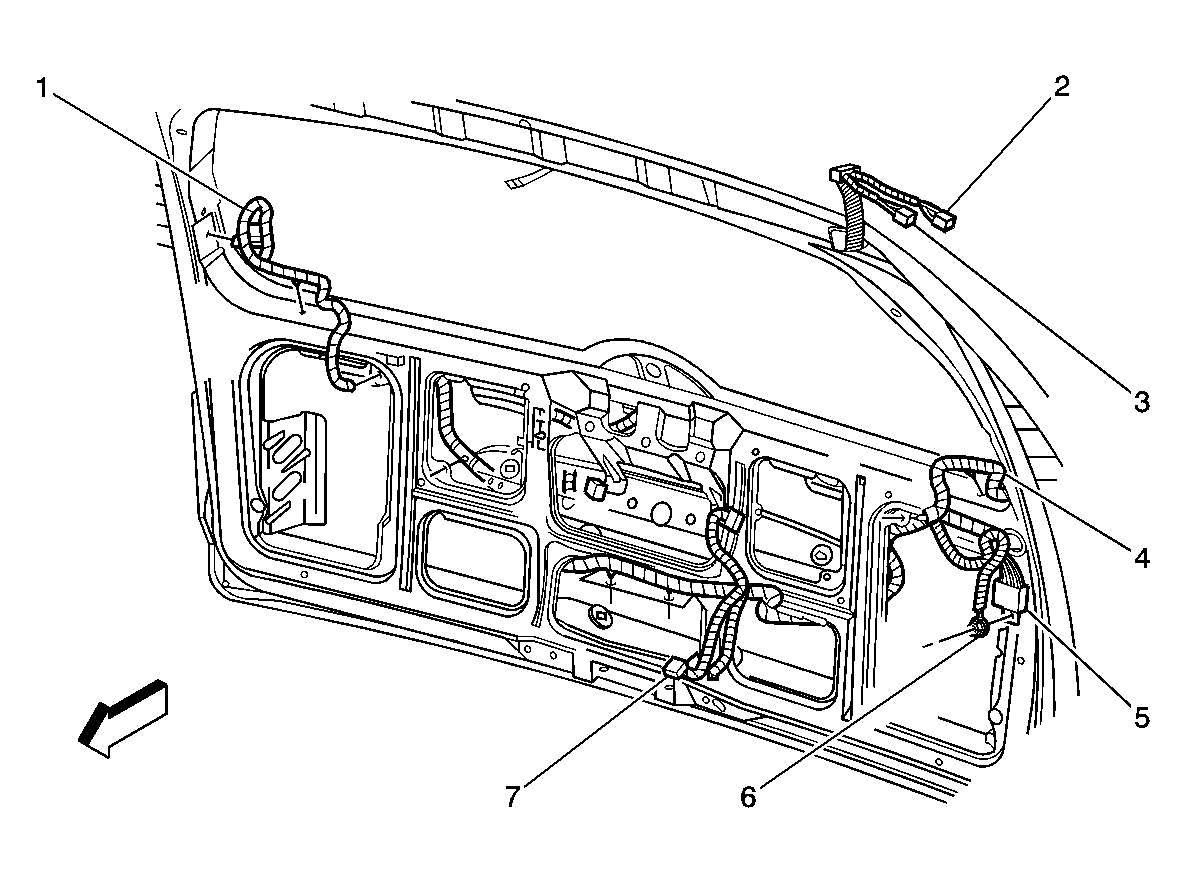

Fig 13: Rear Liftgate Component View
GM1335246Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C493
2 C495
3 Rear Defogger Grid Connector
4 SP464
5 G464
6 Liftgate Release Actuator
7 Rear Defogger Grid Connector
