Cruise Control Component Views

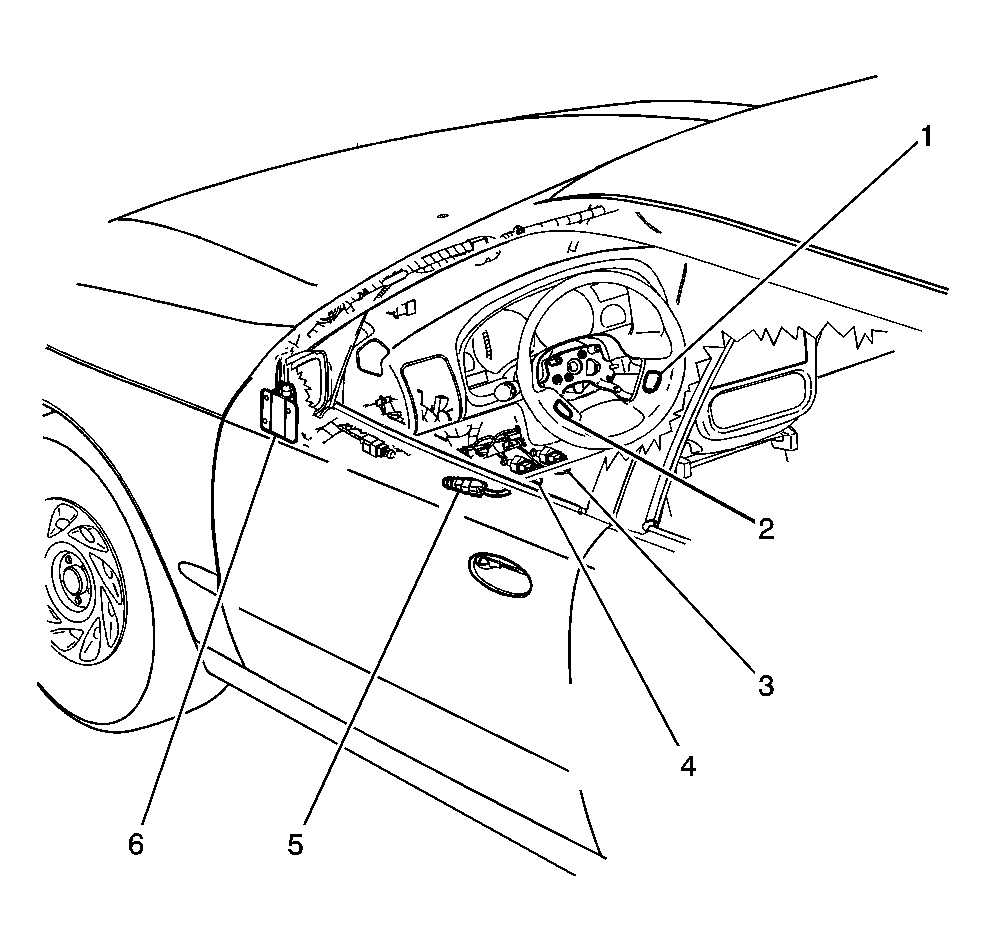

Fig 1: Cruise Control Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cruise Set/Resume Switch
2	Cruise On/Off Switch
3	Stop Lamp Switch
4	Cruise Brake Switch
5	Cruise Clutch Switch (M/T)
6	Cruise Control Module (CCM)
