Splice Pack Connector End Views

Splice Pack SP103 Connector End View

GM966355Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12176482
  • 12-Way F Metri-Pack 280 Splice Saver (BK)
Pin Wire Color Circuit Number Function
A-C BK 150 Ground
D - - Not Used (Ground)
E -J BK 150 Ground
K - - Not Used (Ground)
L-M BK 150 Ground
Splice Pack SP104 Connector End View

GM726823Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12191910
  • 6-Way F Metri-Pack 280 Splice Saver (BK)
Pin Wire Color Circuit Number Function
A-B GY 416 5 Volt Reference
C - - Not Used
D-F GY 416 5 Volt Reference

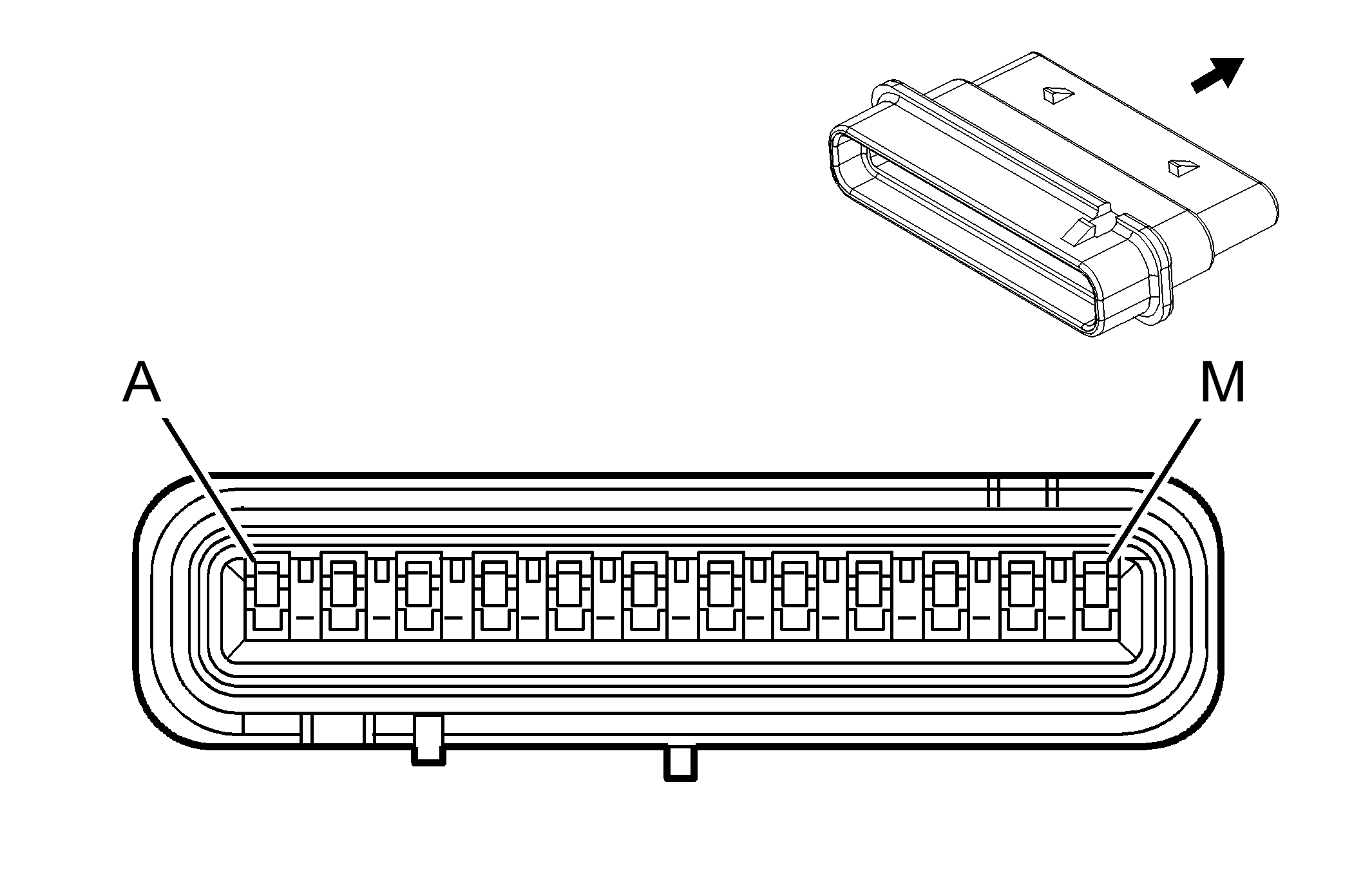

Splice Pack SP105 Connector End View

GM903281Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12191900
  • 12-Way F Metri-Pack 280 Splice Saver (BK)
Pin Wire Color Circuit Number Function
A-E PU/WH 652 Low Reference
F - - Not Used
G-H PU/WH 652 Low Reference
J-M - - Not Used
Splice Pack SP120 Connector End View

GM831366Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15305291
  • 12-Way F Metri-Pack 280 Splice Saver Double (BK)
Pin Wire Color Circuit Number Function
A-D BK/WH 451 Ground
E - - Not Used (Ground)
F BK/WH 451 Ground
G-M - - Not Used (Ground)
Splice Pack SP191 Connector End View

GM726823Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336820
  • 6-Way F Metri-Pack 280 Splice Saver (GY)
Pin Wire Color Circuit Number Function
A BK 550 Ground
B - - Not Used (Ground)
C BK 550 Ground
BK 550 Ground
D BK 350 Ground
BK 550 Ground
E-F - - Not Used (Ground)
Splice Pack SP300 Connector End View

GM966355Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12176482
  • 12-Way F Metri-Pack 280 Splice Saver (BK)
Pin Wire Color Circuit Number Function
A-C BK 450 Ground
D - - Not Used (Ground)
E BK 450 Ground
F - - Not Used (Ground)
G BK 450 Ground
H - - Not Used (Ground)
J BK 450 Ground (w/ U67)
K-L BK 450 Ground
M BK 550 Ground
Splice Pack SP401 Connector End View

GM655693Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12176491
  • 6-Way F Metri-Pack 280 Splice Saver (BK)
Pin Wire Color Circuit Number Function
A BK 650 Ground
BK 650 Ground
B-C BK 650 Ground
D BK 650 Ground
BK 650 Ground
E BK 650 Ground
F - - Not Used (Ground)
Splice Pack SP464 Connector End View

GM655693Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12176491
  • 6-Way F Metri-Pack 280 Splice Saver (BK)
Pin Wire Color Circuit Number Function
A BK 650 Ground
BK 650 Ground
B-F BK 650 Ground
