Cooling System Component Views

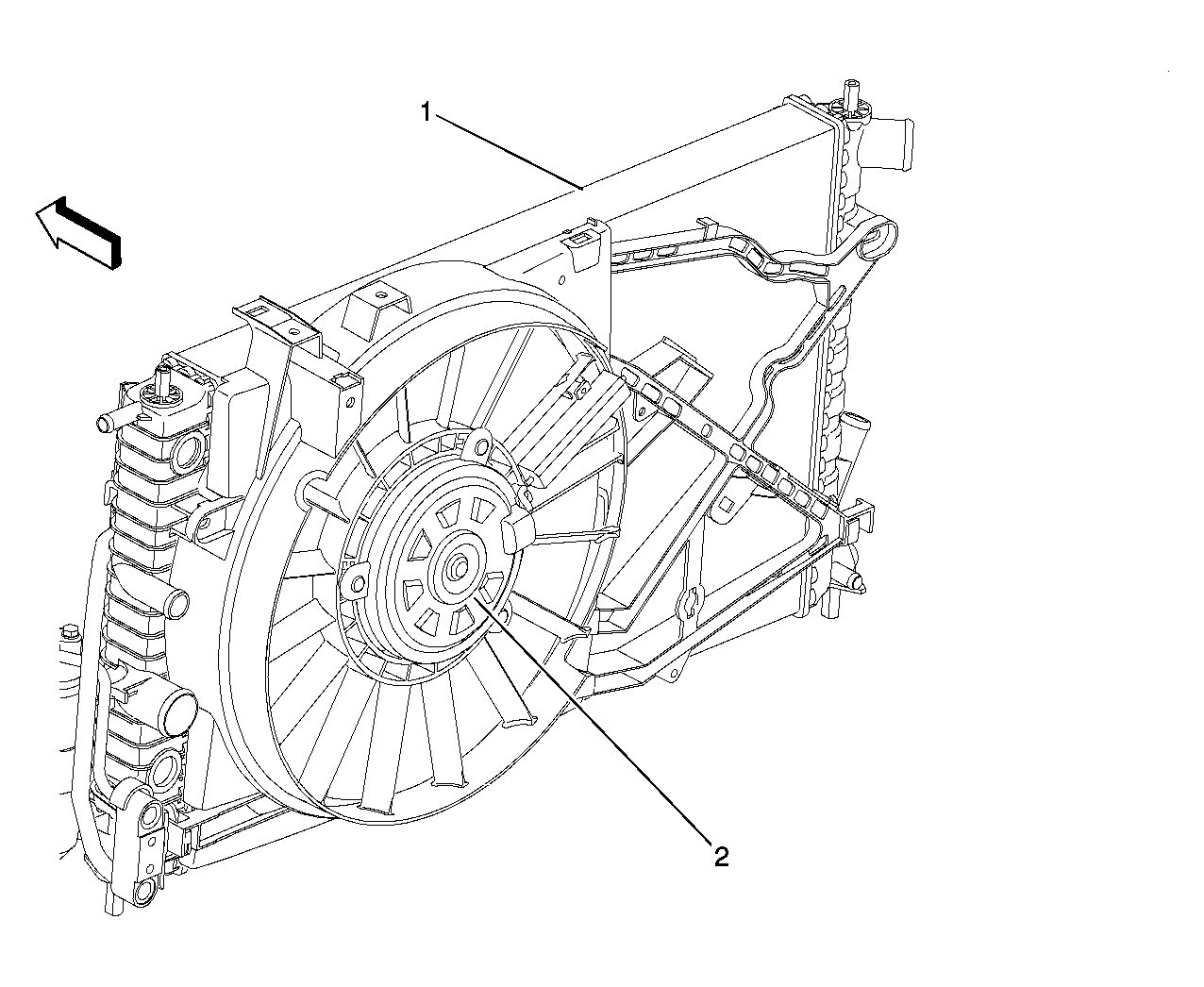

Fig 1: Engine Cooling Fans Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cooling Fan 2
2	Cooling Fan 1 (Front of Radiator)

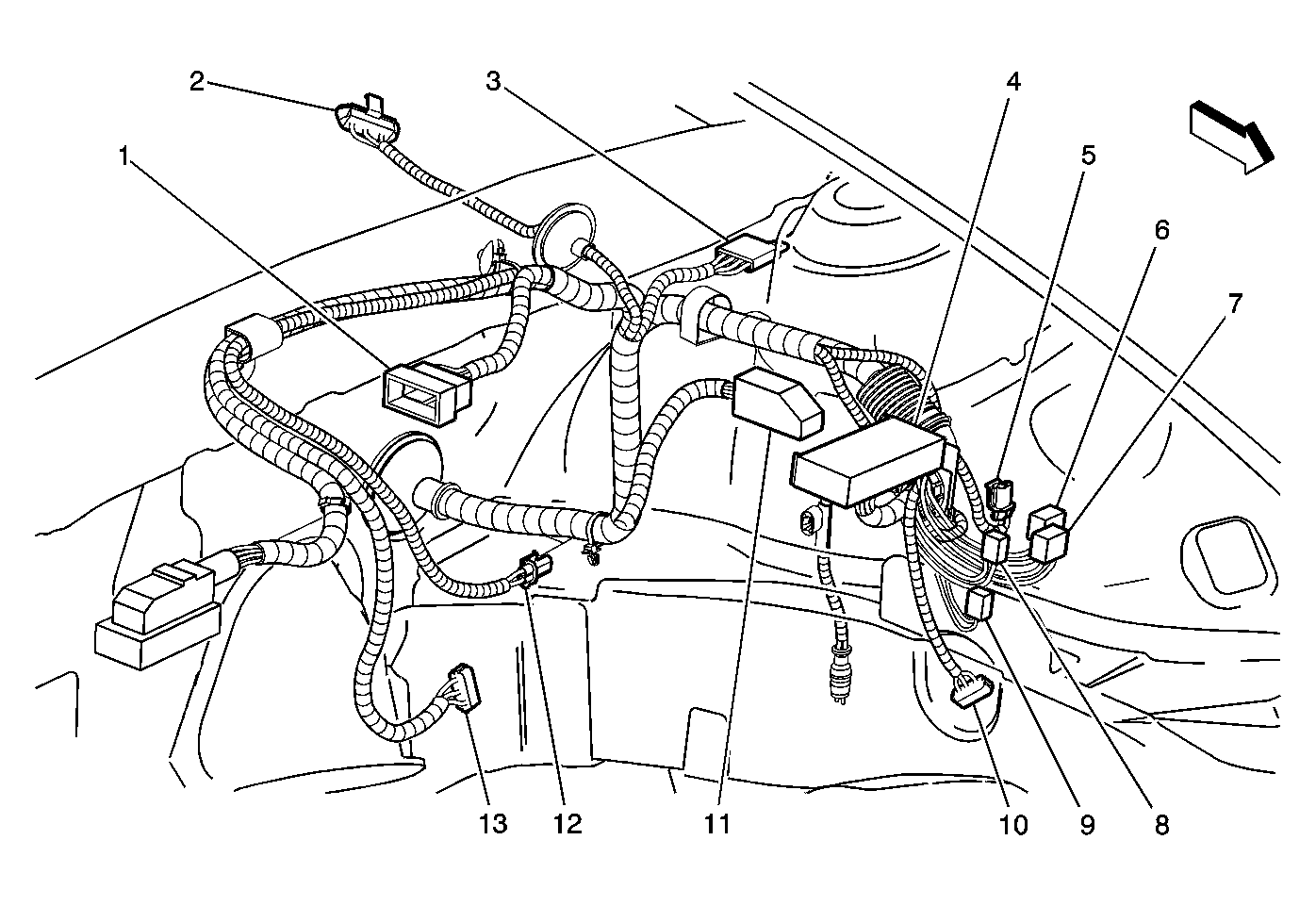

Fig 2: LR Corner of the Engine Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cruise Control Module (CCM)
2	Windshield Wiper Motor Connector
3	SP191
4	Fuse Block - Underhood
5	Coolant Level Switch
6	Cooling Fan Control Module C1
7	Cooling Fan Control Module C2
8	Daytime Running Lamp (DRL) Resistor
9	Windshield Washer Fluid Level Switch
10	G103 (SP103)
11	Electronic Brake Control Module (EBCM)
12	Brake Fluid Level Switch
13	C199

Fig 3: LF Corner of the Engine Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cooling Fan Control Module
2	Battery
