Component Locations

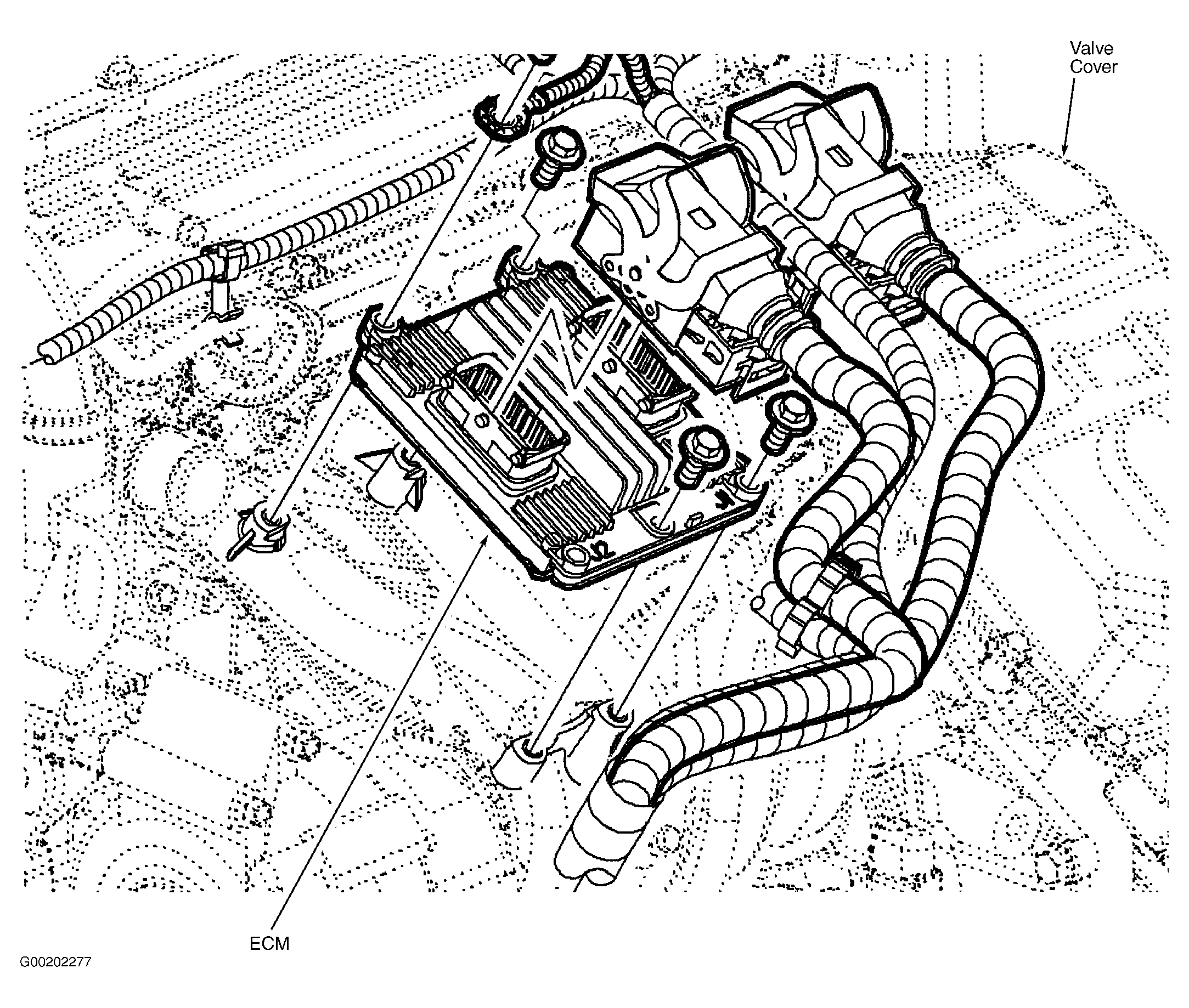

Fig 1: Locating Engine Control Module

Courtesy of GENERAL MOTORS CORP.

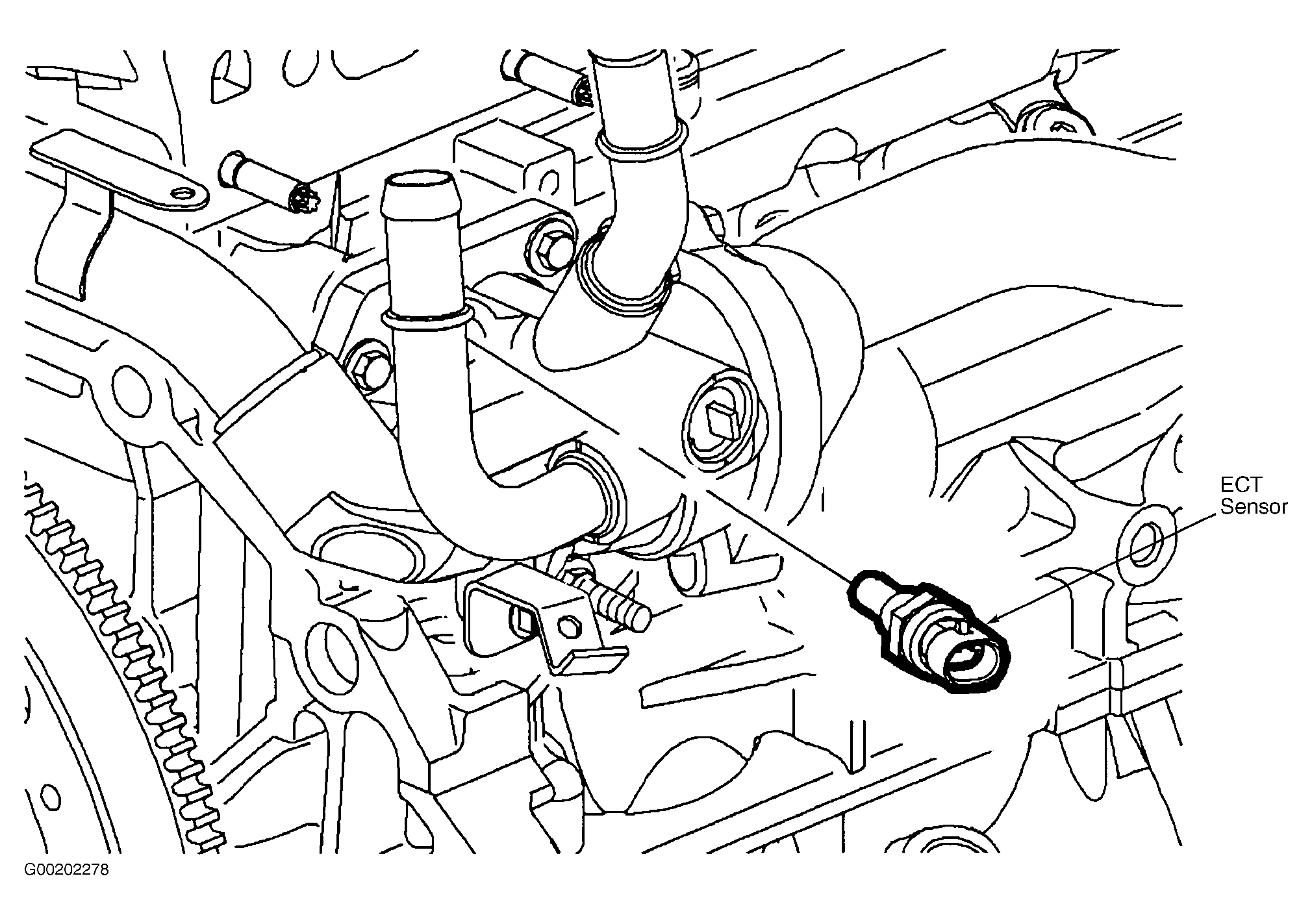

Fig 2: Locating Engine Coolant Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

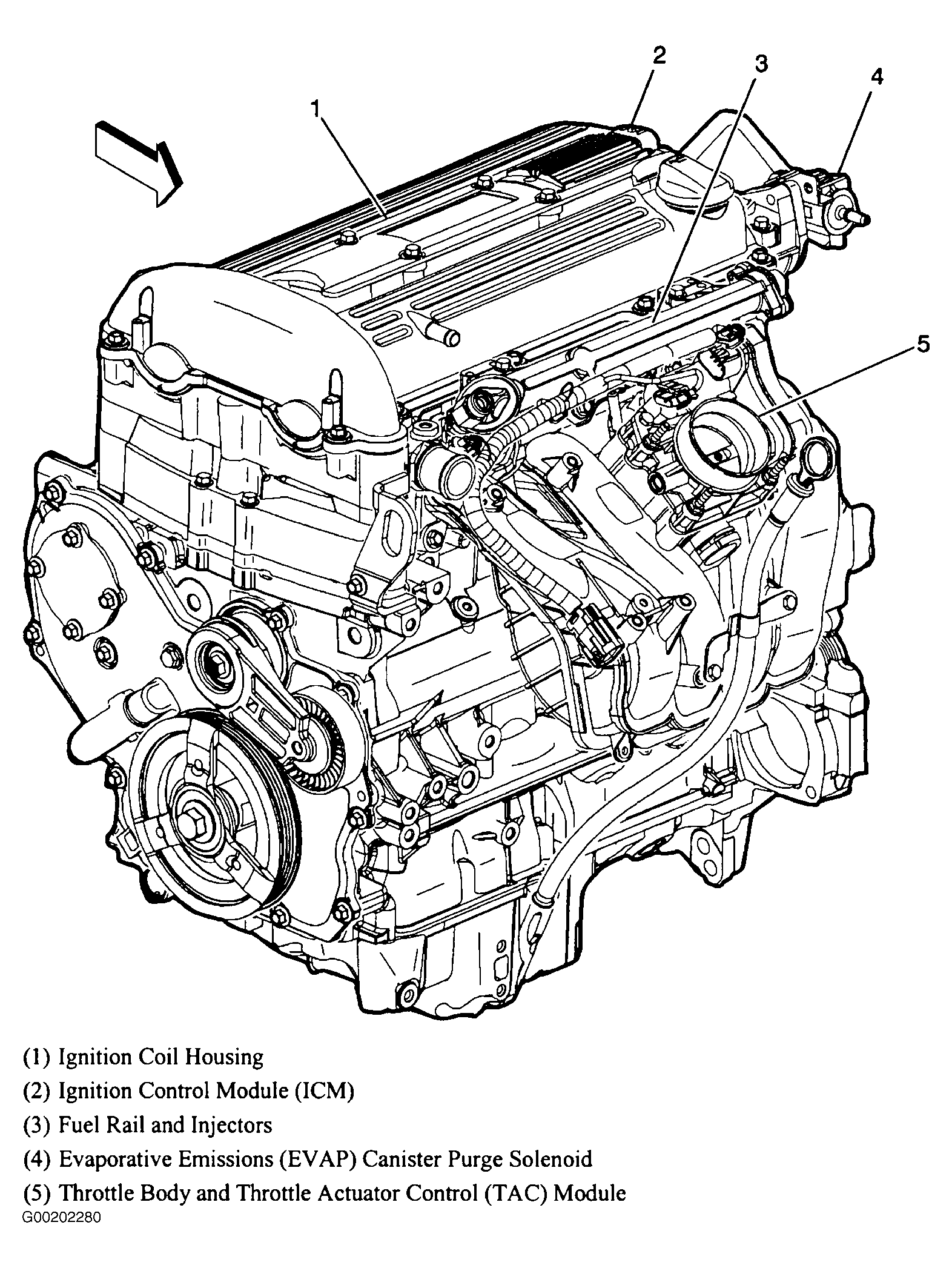

Fig 3: Locating Engine Control Components (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

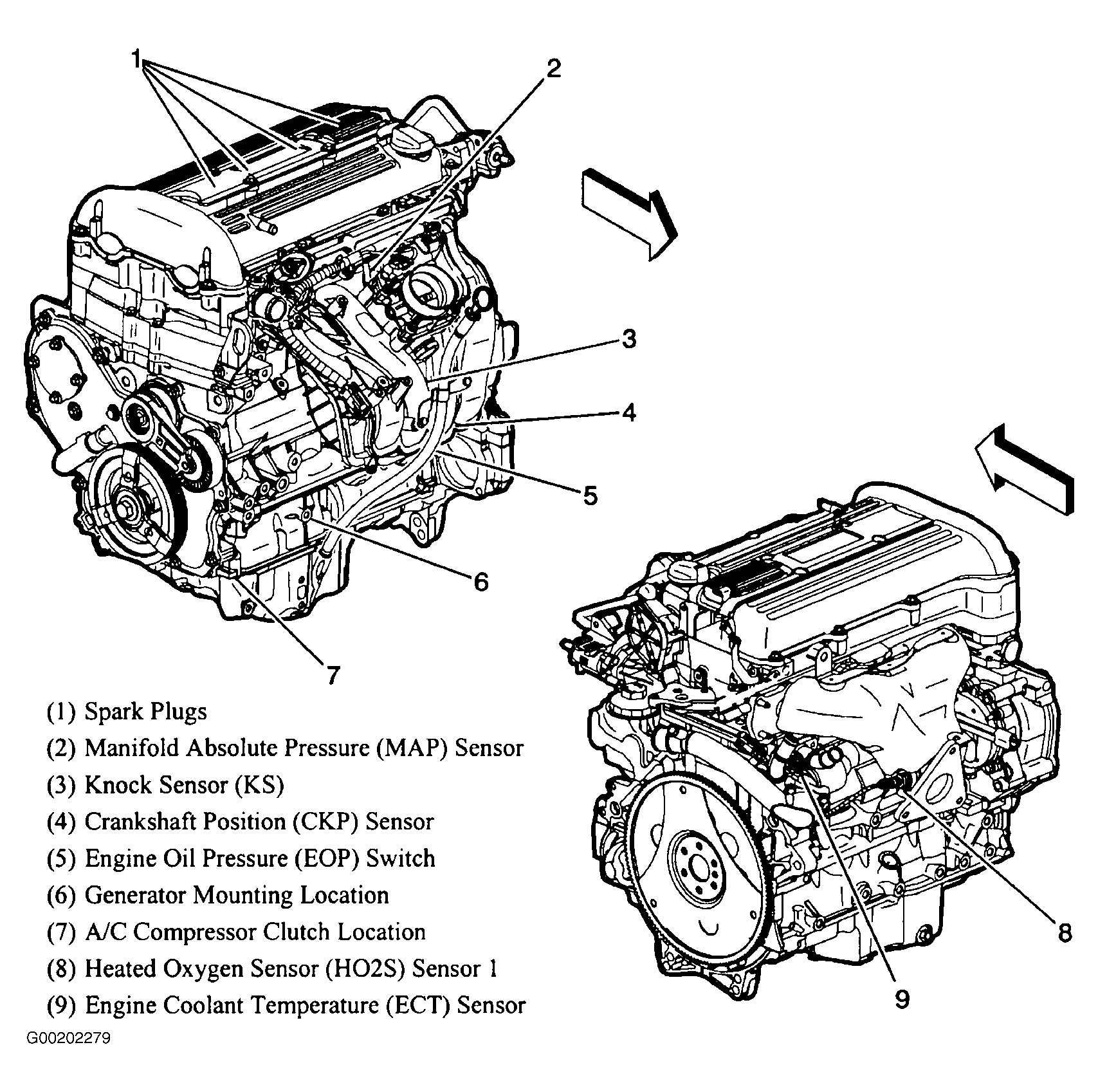

Fig 4: Locating Engine Control Components (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

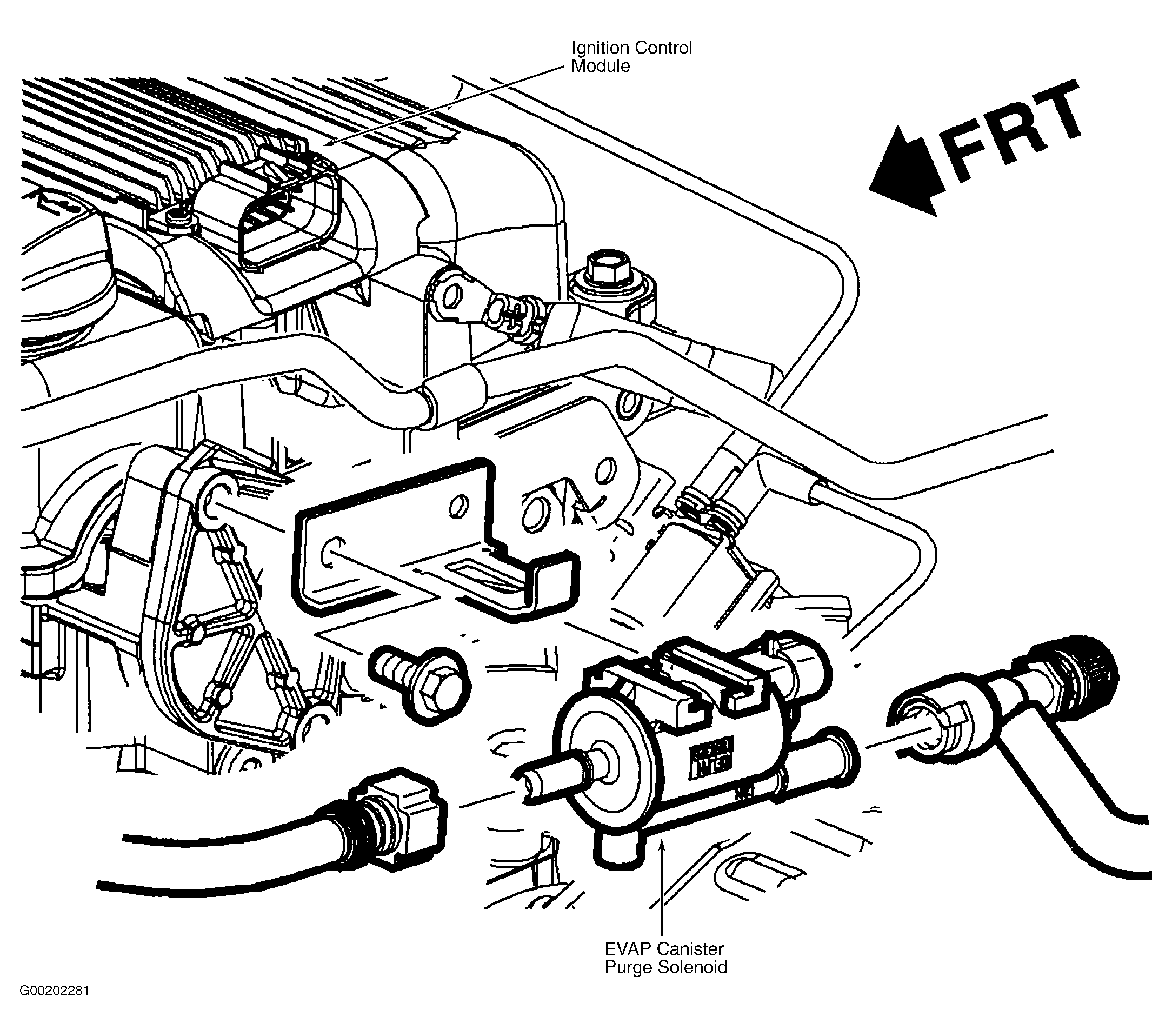

Fig 5: Locating EVAP Canister Purge Solenoid

Courtesy of GENERAL MOTORS CORP.

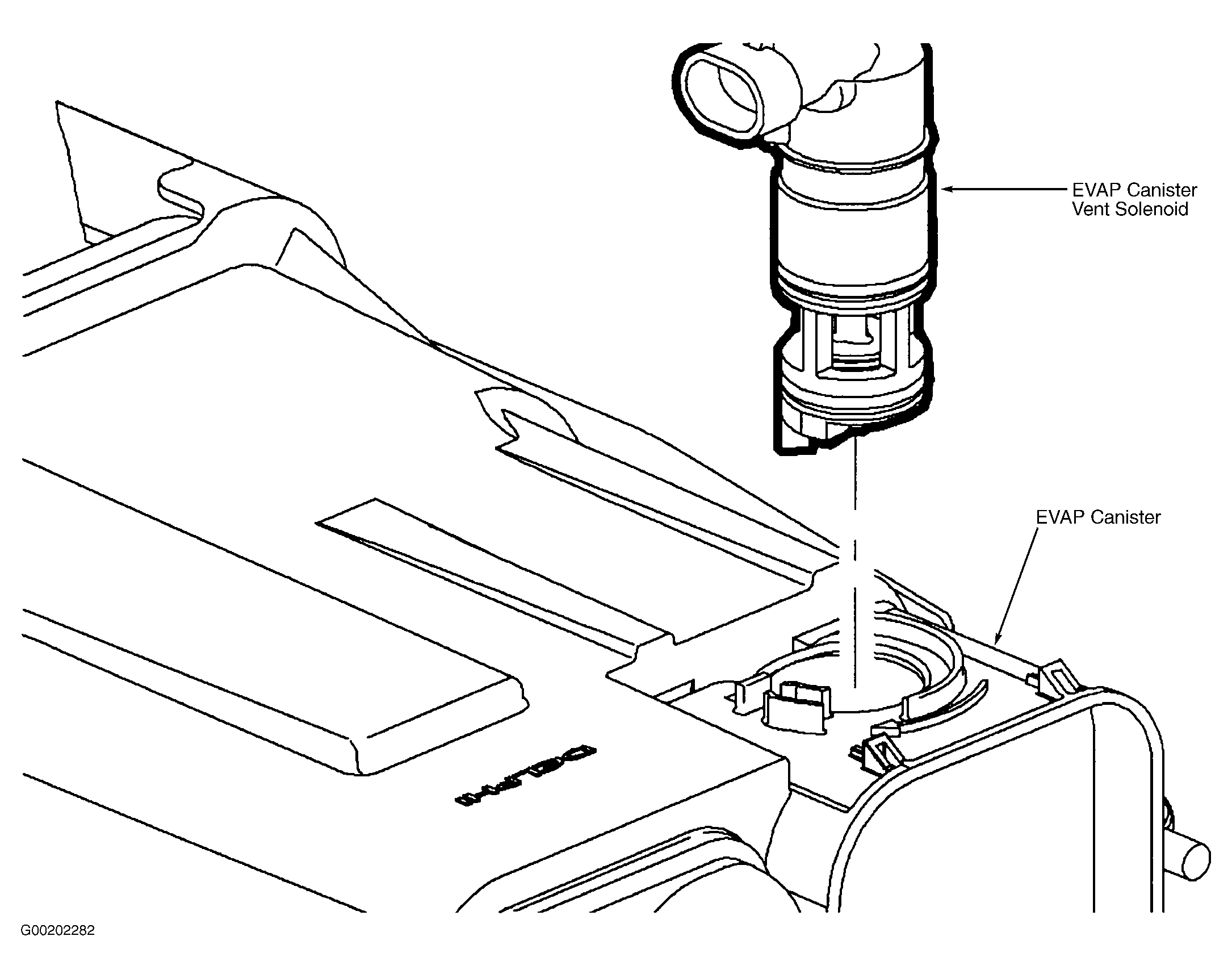

Fig 6: Locating EVAP Canister Vent Solenoid

Courtesy of GENERAL MOTORS CORP.
