Home › Saturn › 2004 › Ion Red Line › Repair and Diagnosis › Body & Frame › Windows › Door System, Mirror System & Window System › Diagnostic Information and Procedures › DTC B3132 › Notes

DTC B3132: Notes

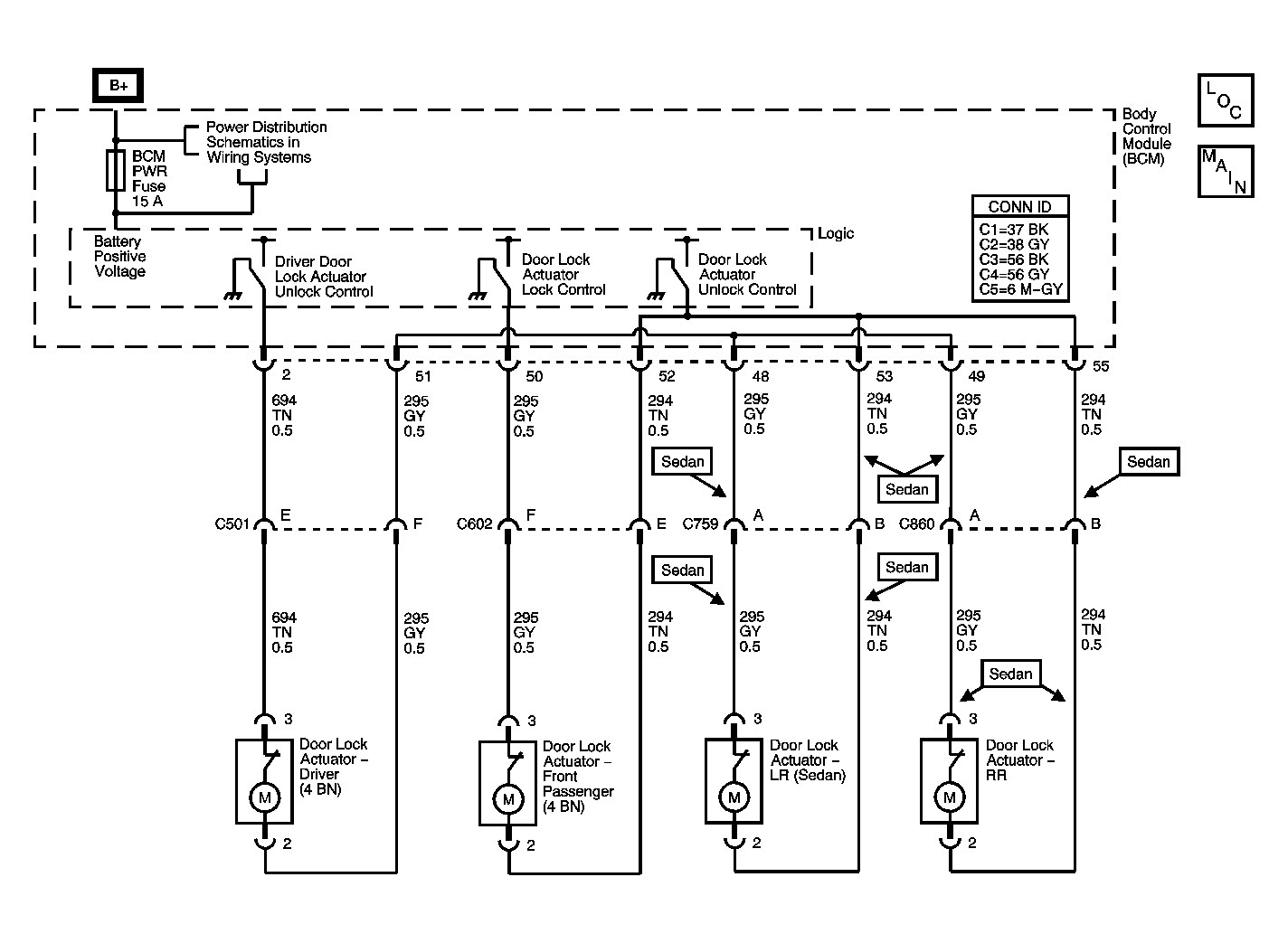

Fig 1: BCM Circuit
GM891198Courtesy of GENERAL MOTORS CORP.
