Removal Procedure

  1. Raise the window to the full UP position.
  2. Remove the trim panel. Refer to Trim Panel Replacement - Side Front Door .
  3. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  4. Remove the door inside handle screw.
    5. Fig 1: Locating Door Inside Screw
    GM891979Courtesy of GENERAL MOTORS CORP.
  5. Disengage the door outside handle rod from the door lock assembly.

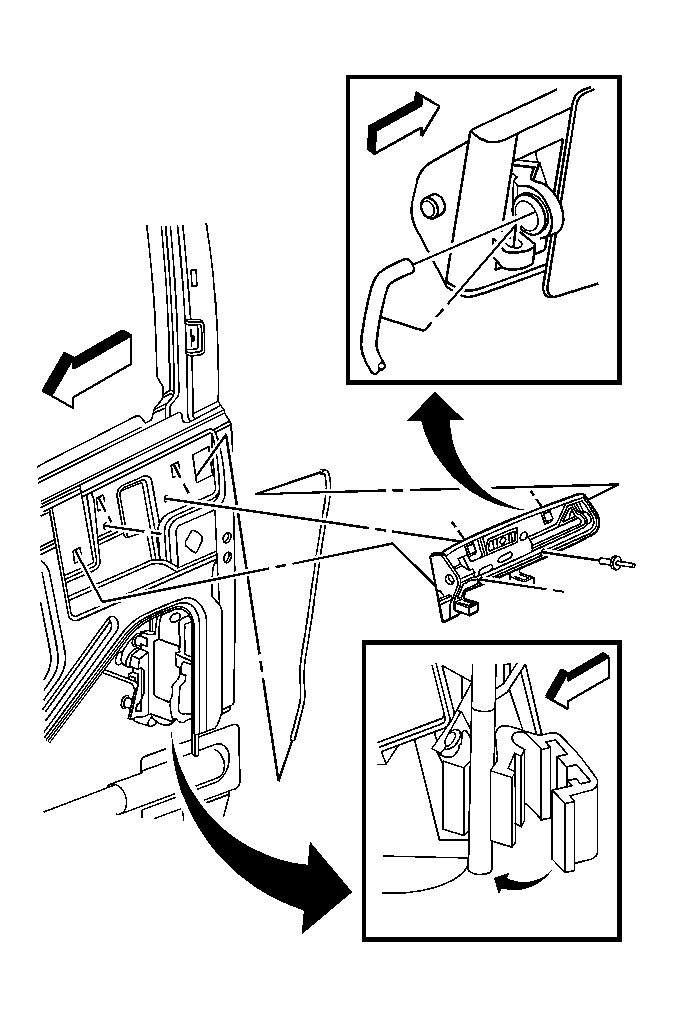

    6. Fig 2: View Of Door Handle Rod Assembly
    GM893017Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the wiring connector from the door lock assembly, if equipped.

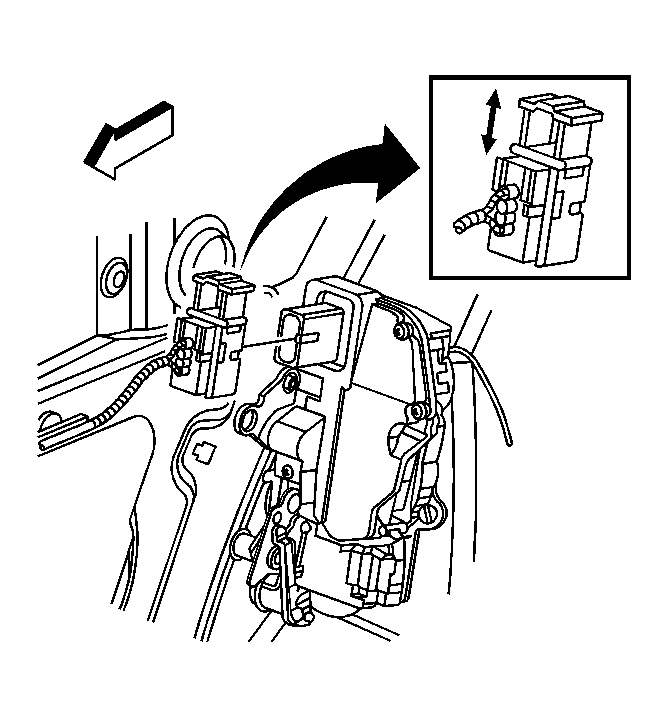

    7. Fig 3: View Of Door Lock Assembly Wiring Connector
    GM861221Courtesy of GENERAL MOTORS CORP.
  7. Slide the door inside handle rearward in order to disengage the tabs.
  8. Remove the lock cylinder rod.
  9. Remove the door lock assembly attachment bolts.
    10. Fig 4: View Of Door Lock Assembly Attachment Bolts
    GM891982Courtesy of GENERAL MOTORS CORP.
  10. Remove the inside handle assembly from the door.
    IMPORTANT: This assembly should include the rods and lock assembly.
  11. Disconnect the inside door handle and door lock assembly from the rods.
    12. Fig 5: View Of Inside Door Handle & Door Lock Assembly
    GM891984Courtesy of GENERAL MOTORS CORP.
