Removal Procedure

  1. Remove the front carpet retainer. Refer to Carpet Retainer Replacement - Front .
  2. Disconnect the front door wiring harness from the main body wiring harness at the front door pillar.
  3. Pull the rubber wiring conduit out of the hinge pillar.
  4. Pull the wiring harness out through the opening in the front door body pillar.
    5. Fig 1: Front Door Body Pillar Wiring Harness
    GM875774Courtesy of GENERAL MOTORS CORP.
  5. Remove the front door check link bolt.

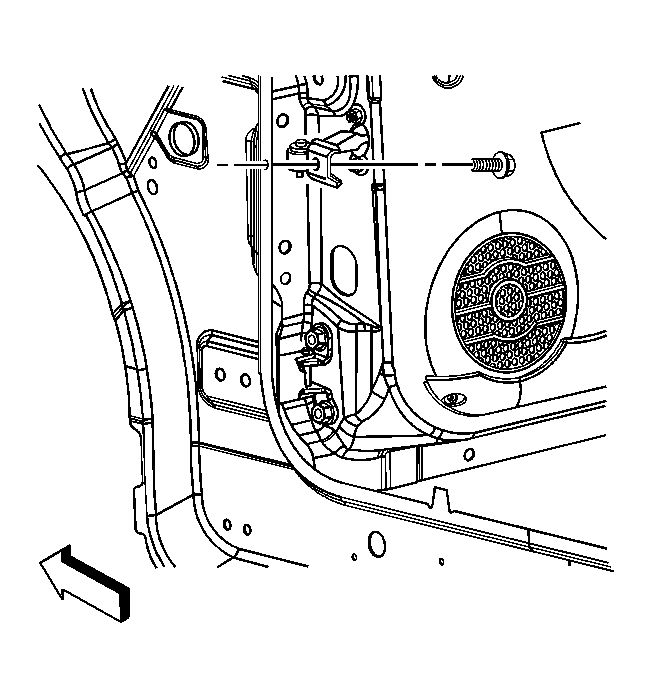

    6. Fig 2: View Of Door Check Link Bolt
    GM874890Courtesy of GENERAL MOTORS CORP.
  6. Remove the front door hinge bolts.
    7. Fig 3: View Of Front Door Hinges & Bolts
    GM876125Courtesy of GENERAL MOTORS CORP.
  7. With an assistant, remove the front door.
