Repair and Diagnosis
›
Brakes
›
Antilock Brake System And Traction Control System
›
Schematic and Routing Diagrams
›
ABS Schematics
ABS Schematics

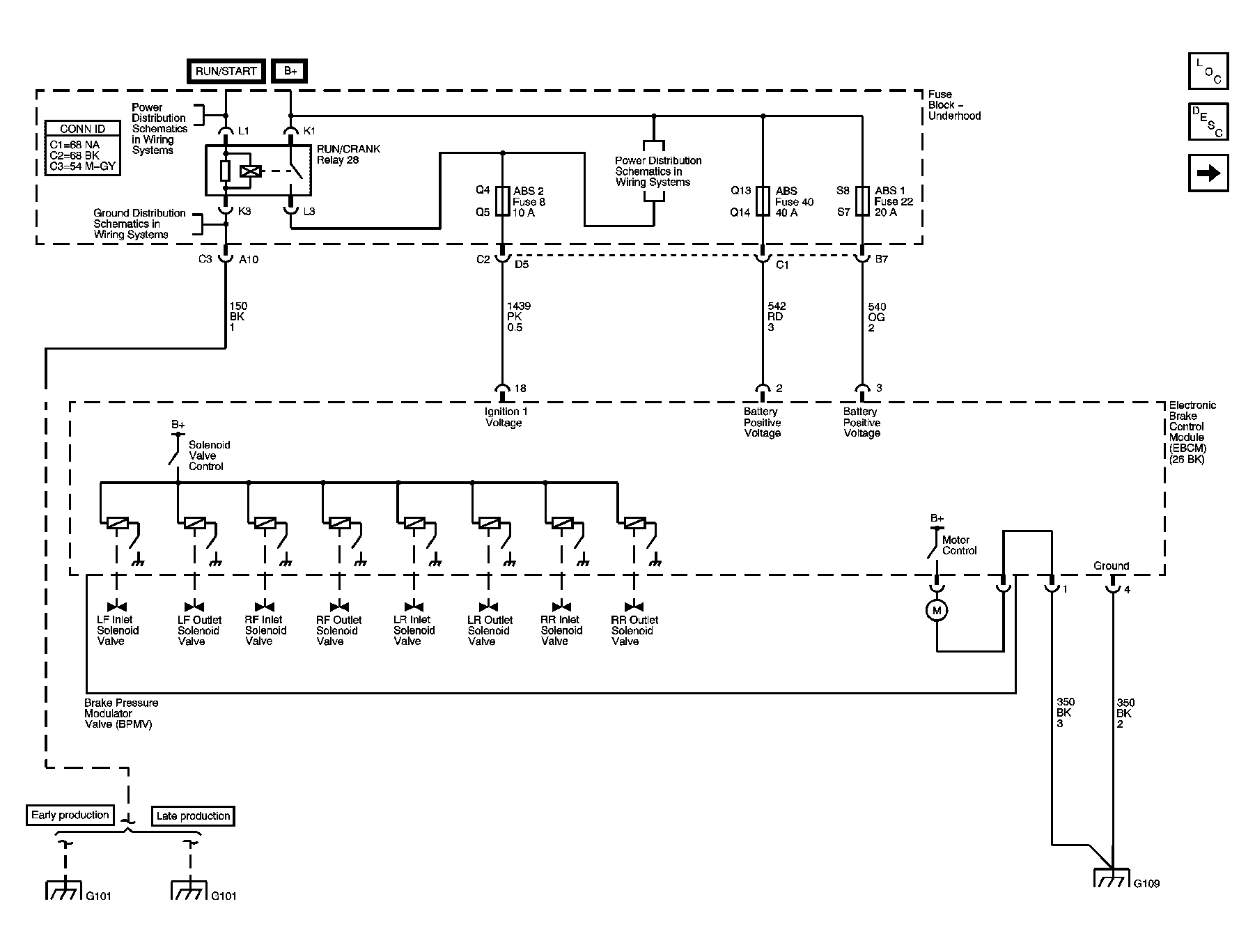

Fig 1: Power, Ground, and BPMV Controls Schematic
Courtesy of GENERAL MOTORS CORP.

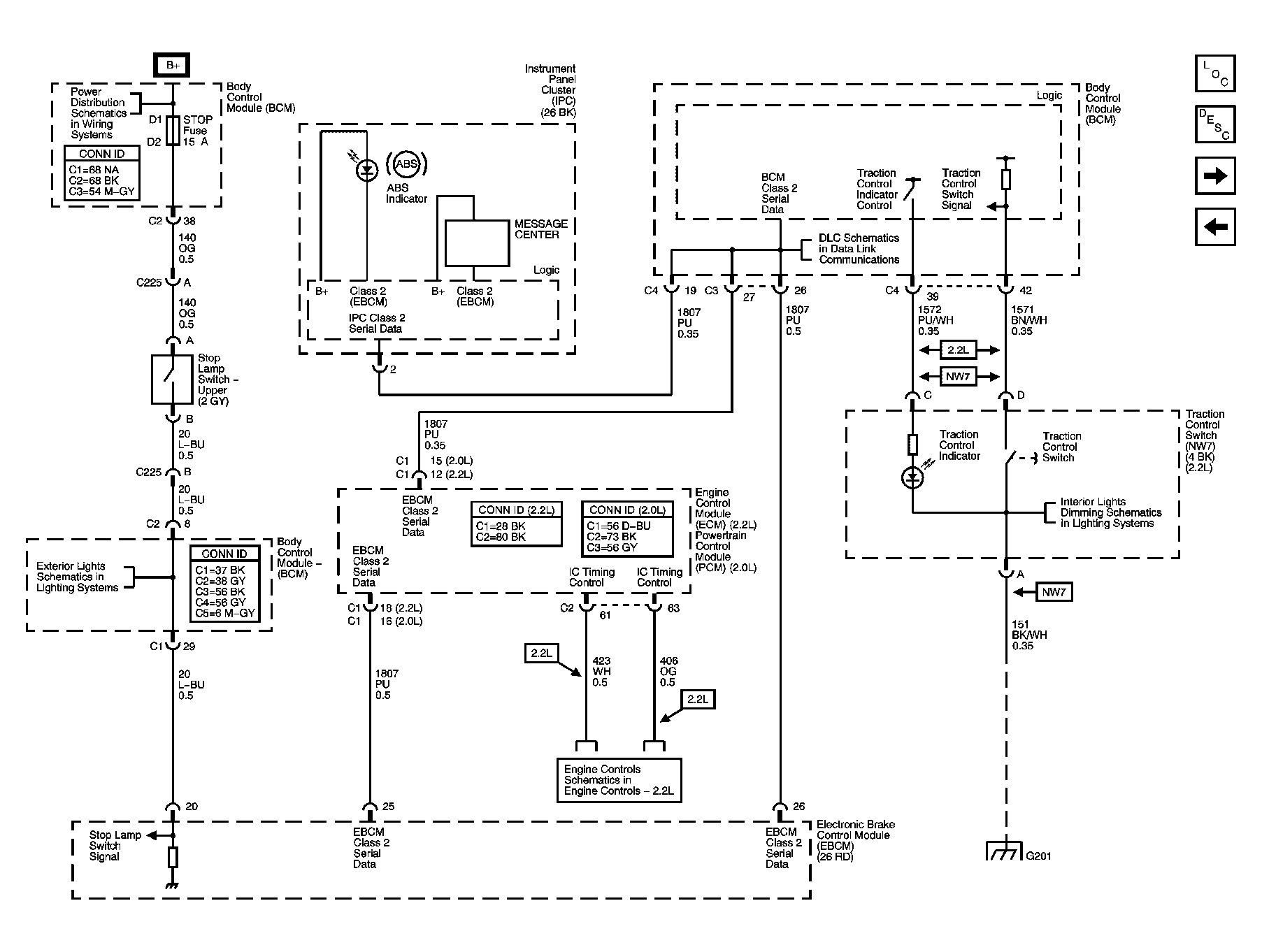

Fig 2: Traction Control, DLC, and Indicators Schematic
Courtesy of GENERAL MOTORS CORP.

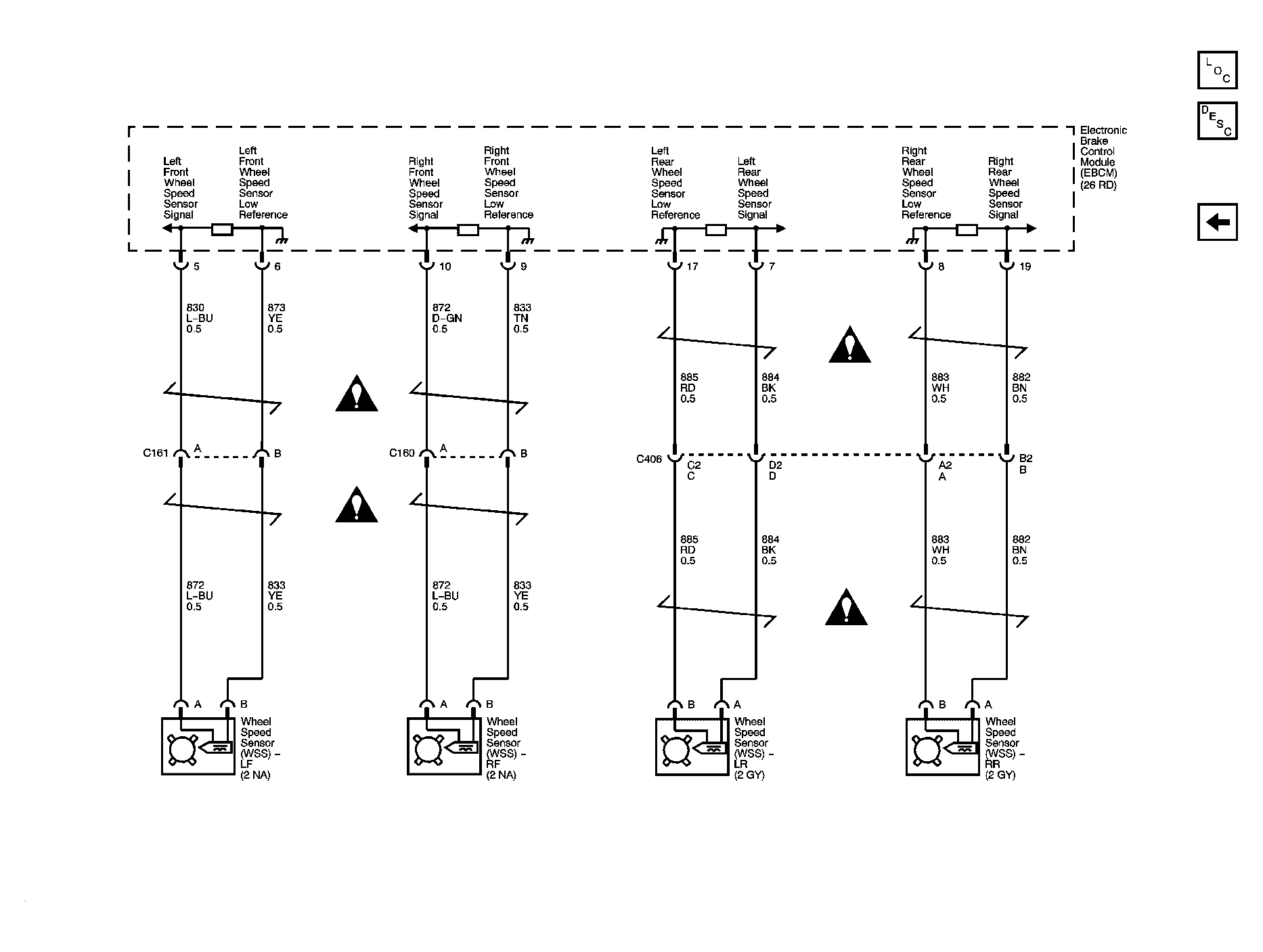

Fig 3: Wheel Speed Sensors Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
