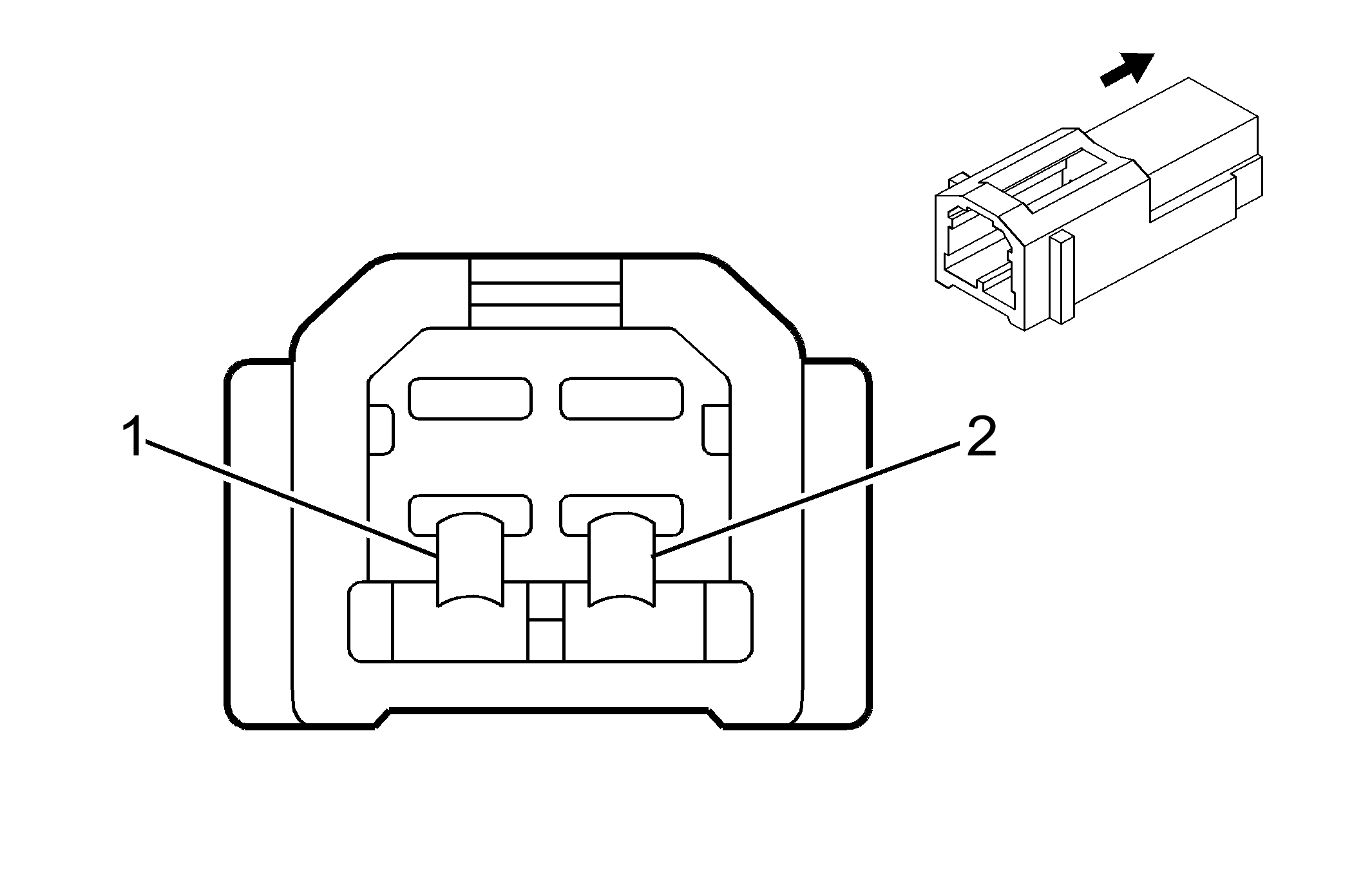

Fuel Sender Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		174460-1 2-Way F Amp (WH)
Pin	Wire Color	Circuit No.	Function
A	YE/WH	1589	Fuel Level Sensor Signal
B	PK/OG	2759	Low Reference
