Engine Electrical Component Views

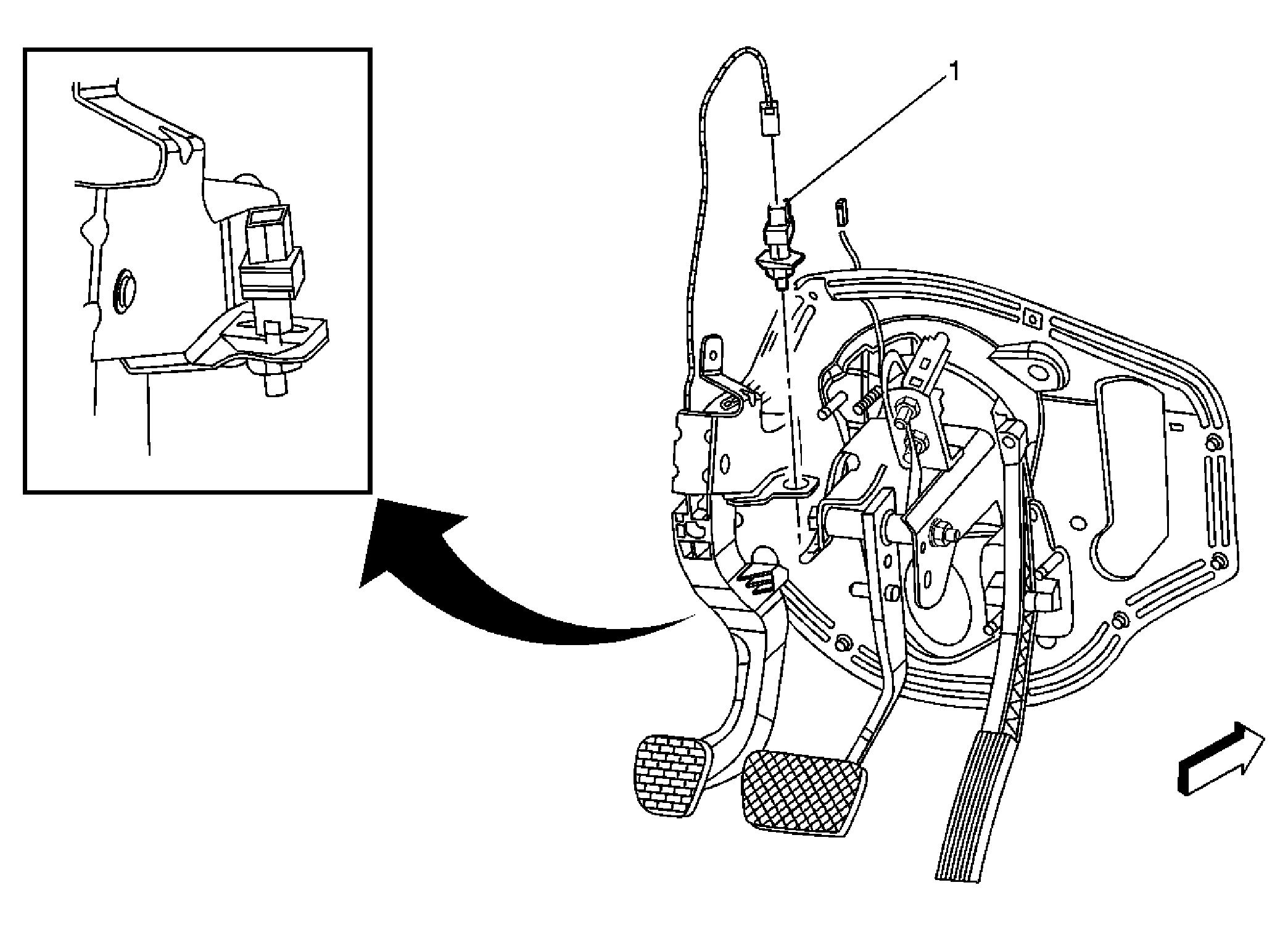

Fig 1: Left Side Of I/P In Pedal Bracket (M86) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Clutch Start Switch

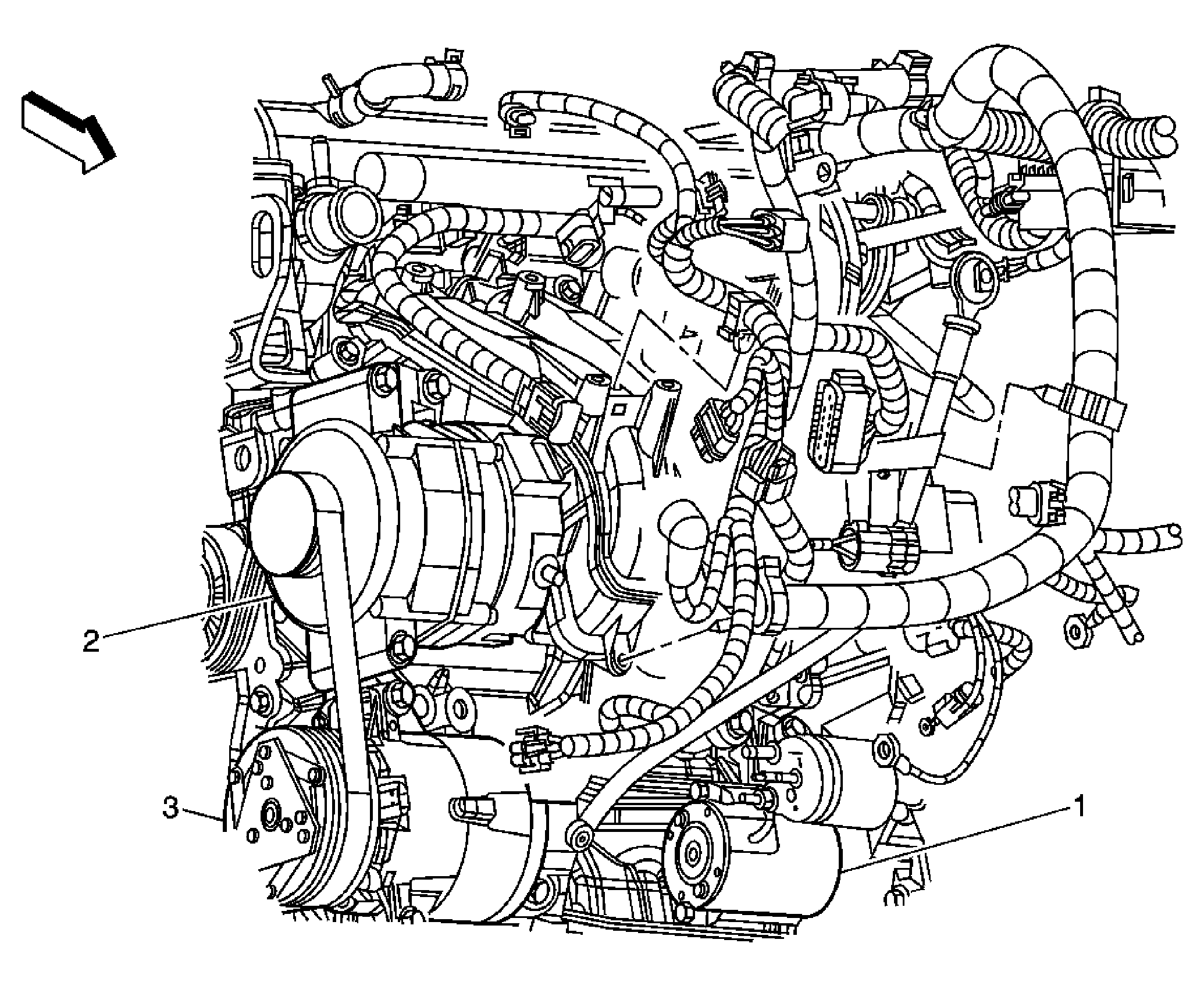

Fig 2: Right Front Side Of Engine Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Starter
2	Generator
3	A/C Compressor Clutch
