Installation Procedure

  1. Position the engine purge pipe to the EVAP canister purge valve and the intake manifold.
  2. Connect the engine purge pipe to the throttle body.
  3. Connect the engine purge pipe to the EVAP canister purge valve.

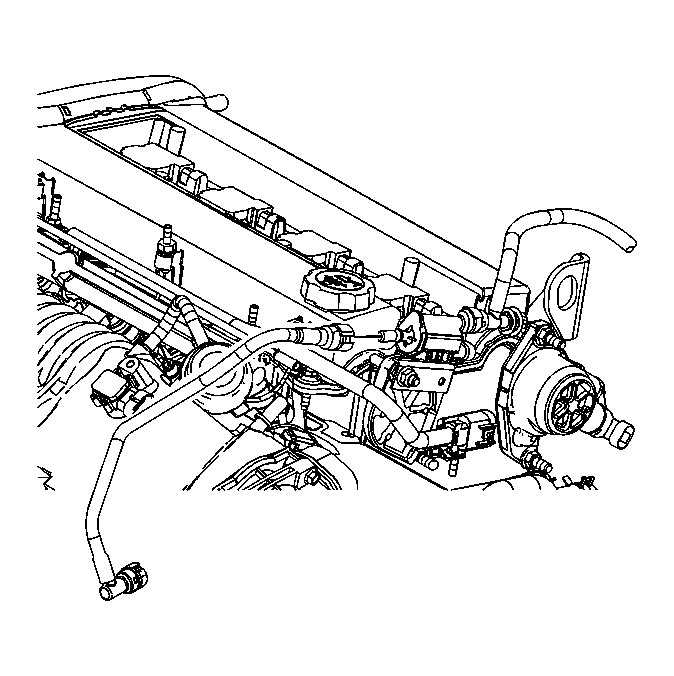

    4. Fig 1: View Of Engine Purge Pipe
    GM1387195Courtesy of GENERAL MOTORS CORP.
