Installation Procedure

    NOTE: Refer to Fastener Notice in Cautions and Notices.
    IMPORTANT: Use the new TMAP sensor seal provided with the new TMAP sensor.
  1. Install the TMAP sensor into the intake manifold.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  2. Connect the TMAP sensor harness connector.

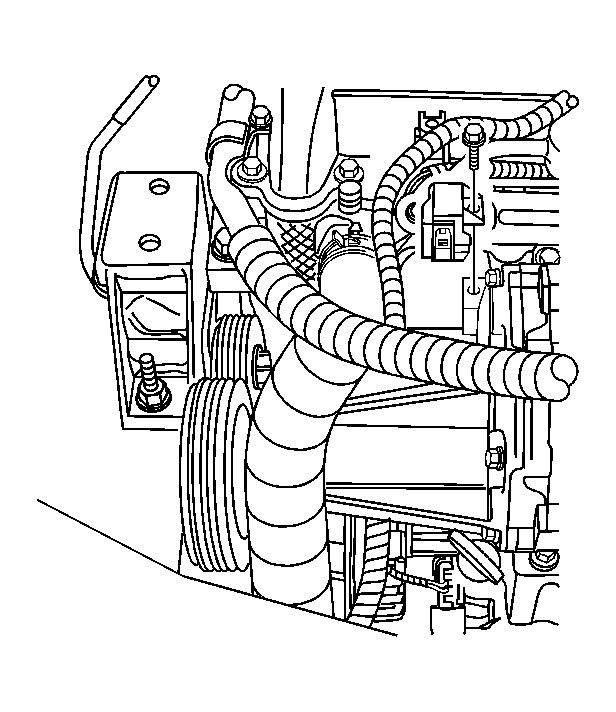

    3. Fig 1: Locating TMAP Sensor
    GM1382191Courtesy of GENERAL MOTORS CORP.
