Emission Hose Routing Diagram

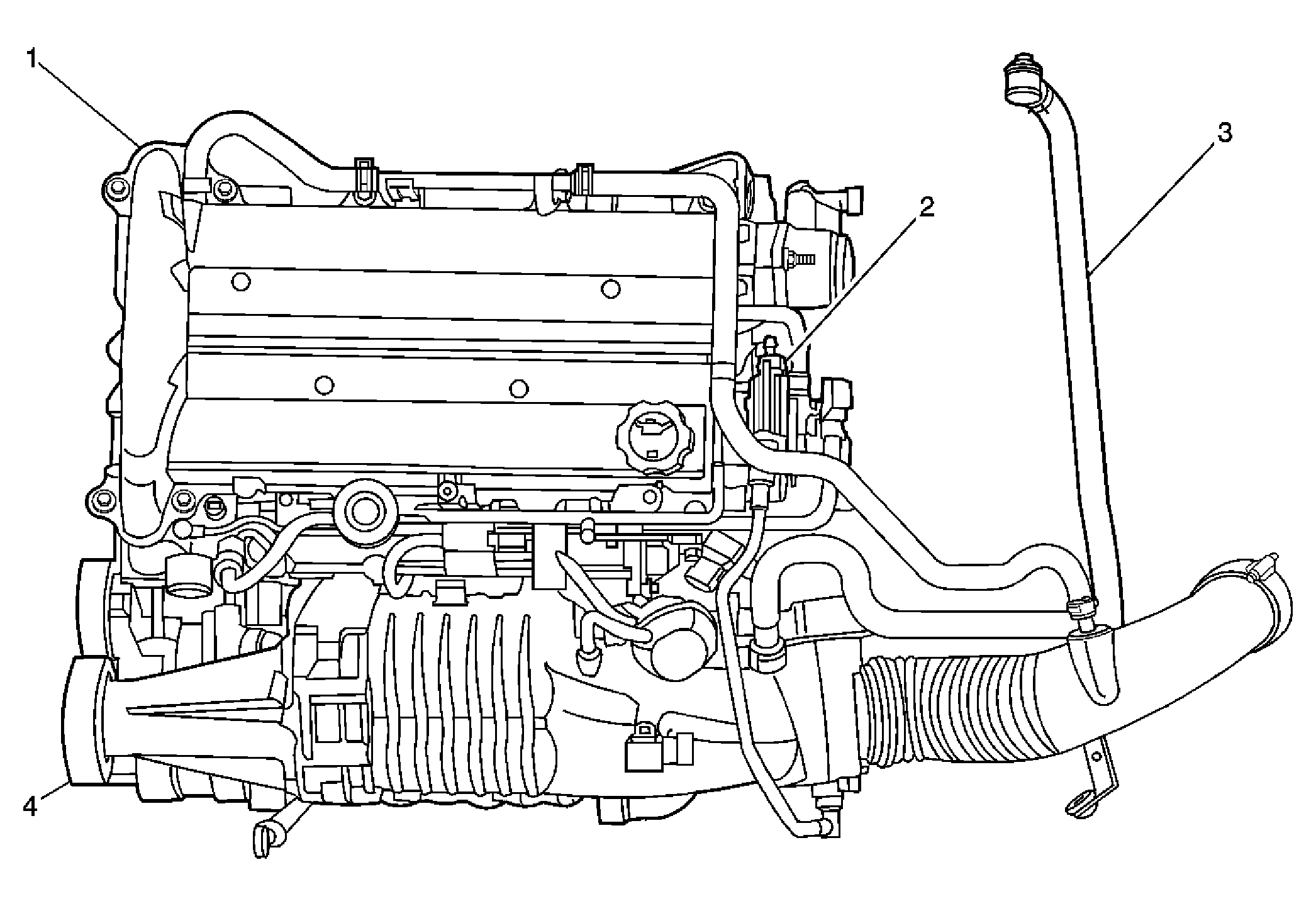

Fig 1: Emission Hose Routing Diagram

GM1464206

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine
2	EVAP Canister Purge Solenoid Valve
3	To Brake Booster
4	Supercharger
