Fixed Antenna Replacement
WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
Fixed Antenna Replacement

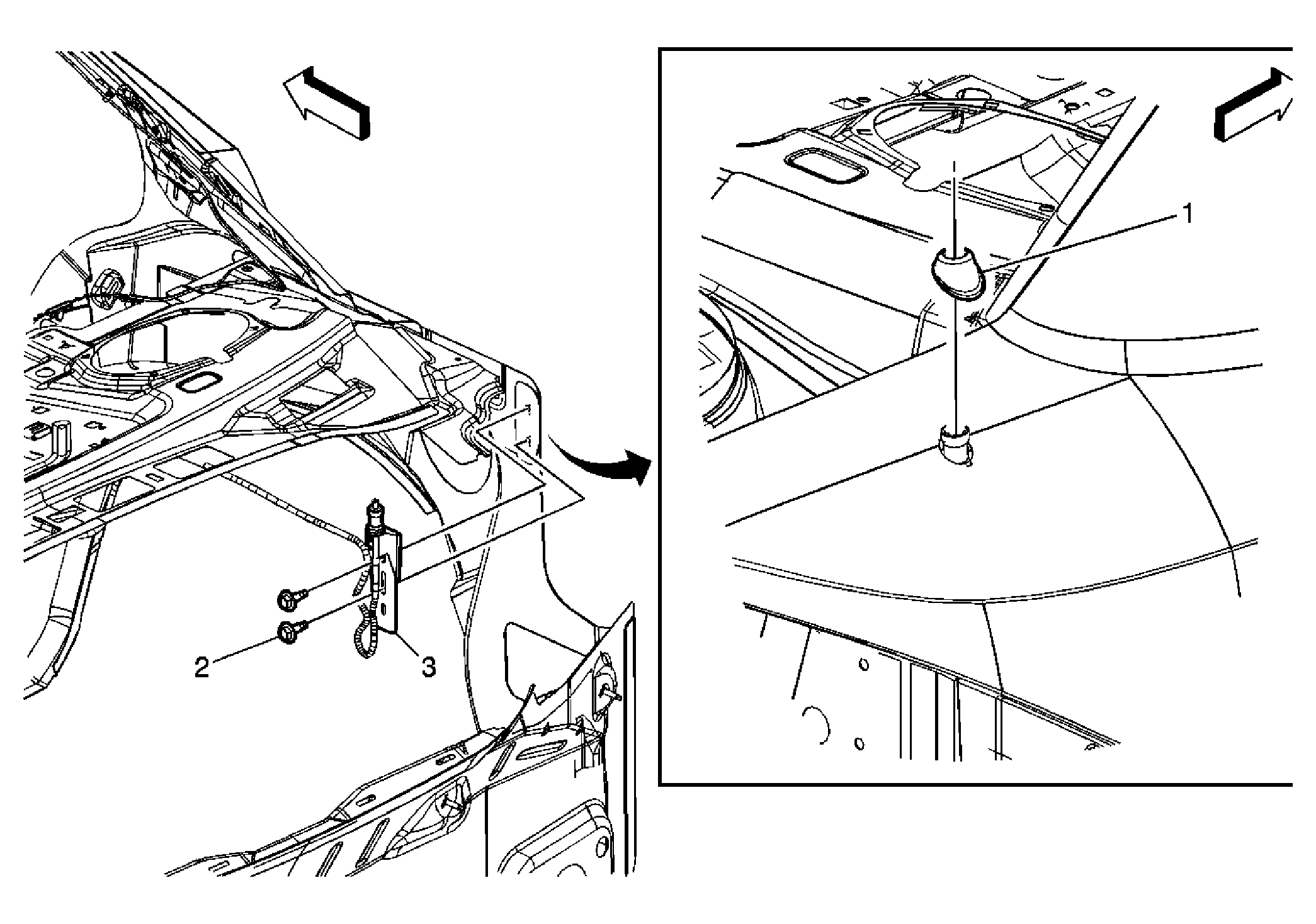

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Remove the right rear compartment trim panel. |
|
| 1 | Radio Antenna Bracket Assembly |
| 2 | Antenna Bracket Assembly Nut
NOTE:
Refer to Fastener Notice
.
Tighten: 9 N.m (80 lb in) |
| 3 | Radio Antenna Bezel |
