Installation Procedure

WARNING: This page is about a different car, the 2008 Pontiac G5 and 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

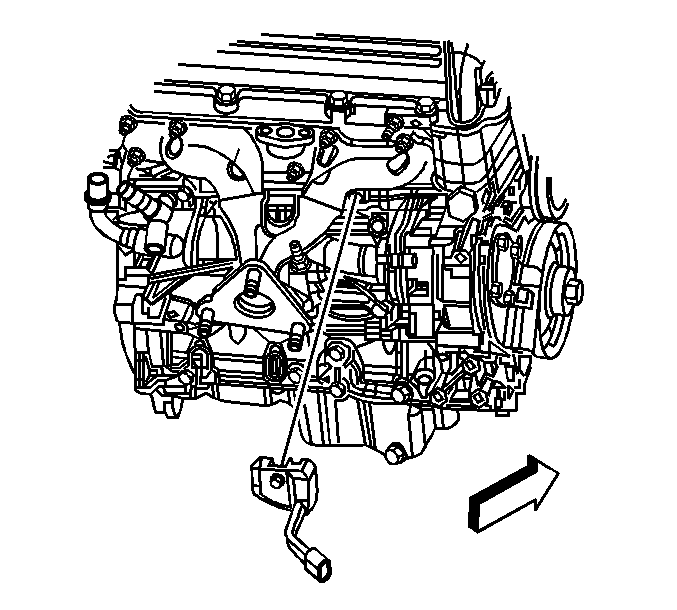

Fig 1: View Of Coolant Heater

Courtesy of GENERAL MOTORS CORP.

Install the coolant heater.

NOTE: Refer to Fastener Notice .

Install the coolant heater bolt.
Tighten: Tighten the bolt to 10 N.m (89 lb in).

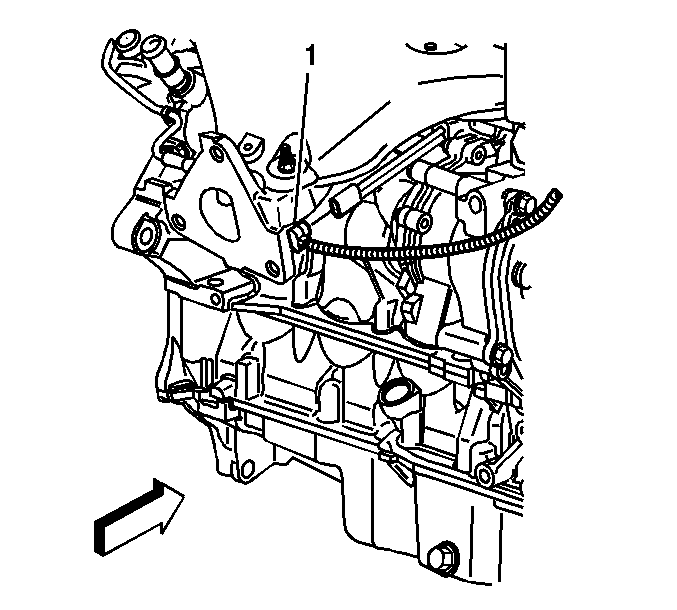

Fig 2: View Of Coolant Heater Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the coolant heater cord (1).
